Bora pkcb3ab Professional 3.0 HiLight domino modular hob 37 cm all black

BORA Professional 3.0

High-end extractor systems with innovative knob controls and customisable cooktops.

It goes without saying that BORA Professional 3.0 takes cooking enjoyment and fume extraction to a new level in terms of aesthetics, functionality and convenience, and makes a statement with its sophisticated kitchen style. The flagship BORA cooktop extractor system is one of two modular systems that you can freely combine with one, two or more cooktops. It features larger, individually configurable cooktops with a depth of 540 mm and innovative analogue-digital operation via knobs and touch options.

The built-in cooktops offer maximum space for cooking, even when placing larger cookware behind each other. Many convenient functions, such as the child lock and pause function, can be activated quickly and efficiently with the extractor's central control lever. Parts exposed to cooking fumes can be easily removed through the large, easily accessible inlet opening. They are dishwasher-safe, taking up very little space. The system stands out for the aesthetics and tactile feel of the black glass control knobs located on the front of the cooker. The cutting-edge design is completed by the white LED display with its well-defined lines.

BORA PKCB3AB PRO:

The control system combines a practical traditional knob with a central touch interface featuring a high-definition LED display, allowing you to manage all functions quickly, intuitively and conveniently by turning the knob or simply touching the sensitive surface.

Three heat retention levels are available with a constant temperature selectable at 42°C, 74°C or 94°C.

The grill zone integrates a heating element that extends across the entire surface, which can be easily activated according to use requirements.

It is also possible to conveniently insert a second or third larger cooking circuit, to adapt the heated space to different types of pans.

The child safety lock prevents accidental switching on or unauthorised use of the hob.

The programmed switch-off function automatically interrupts the operation of the selected zone after the set time has elapsed.

The integrated timer emits both an audible and visual warning at the end of the user-defined time.

The pause mode allows you to temporarily suspend all active zones with a single command, subsequently restoring the previous settings without changes.

Thanks to the automatic cooking start function, the selected zone initially operates at maximum power and then automatically reduces the level to the set value to continue cooking.

The demo mode can be activated via the settings menu, which allows you to view and use all the control functions while keeping the hob heating disabled.

SPECIFICATIONS

General

Intuitive control knob

2-circuit activation

3-circuit activation

Braising pan power supply

Demo mode

Functions

Cooking zone timer

Automatic start-up

Variable heat retention function

Pause function

Super Simple Mode

Safety devices

Child lock, residual heat indicator, overheating protection, automatic safety switch-off

Technical data

Connected voltage 380 - 415 V 2N

Frequency 50–60 Hz

Maximum power consumption 5100 W

Maximum connected power 5100 W

Fuse 2 x 16 A

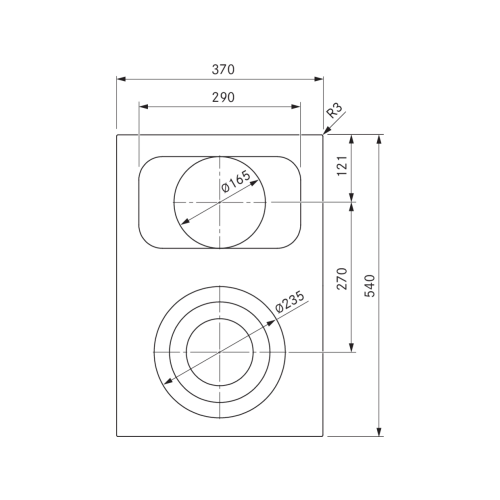

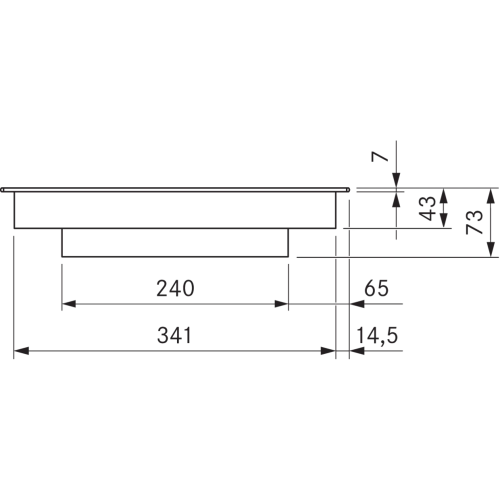

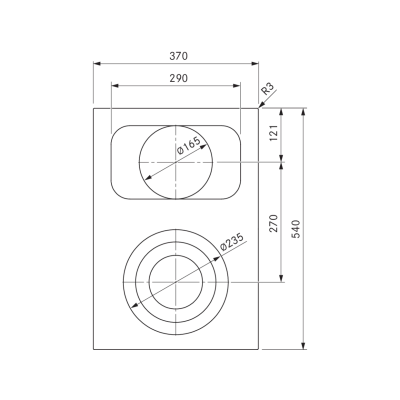

Dimensions (width x depth x height) 370 x 540 x 73 mm

Weight (incl. accessories/packaging) 8.9 kg

Surface material Glass ceramic

Hob power levels 1 - 9, 2-ring/3-ring connection/

grill

Number of front cooking zone rings 3

Number of rear cooking zone rings 2

Front cooking zone dimensions Ø 120/180/235 mm

Rear cooking zone dimensions Ø 165/290 x 165 mm

Front cooking zone power 800/1600/2500 W

Rear cooking zone power 1500/2600 W

Mains connection cable length 1.5 m

Hob communication line 1 m

Cable for control knob/interface 1 m

Scope of delivery

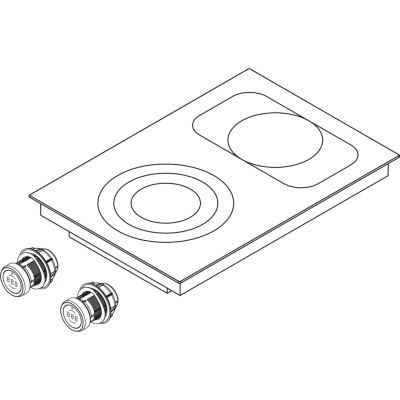

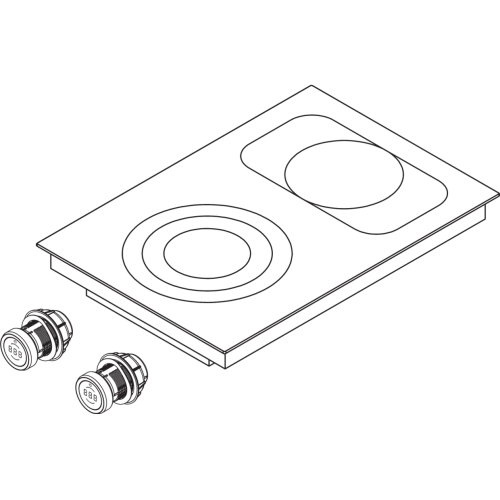

HiLight 3-ring/2-ring/grill hob PKCB3/PKCB3AB, 2 control knobs, 2 control knob connection cables, connection cable for extractor, operating and installation instructions, installation accessories

Product and planning information

Installation can be rotated by 180°, 70 mm minimum distance required to the rear

Adequate ventilation must be provided underneath the hob

Operation without a hob extractor is only possible with limited functionality

After all installation work has been completed, the appliance is coated all around with heat-resistant silicone paste
