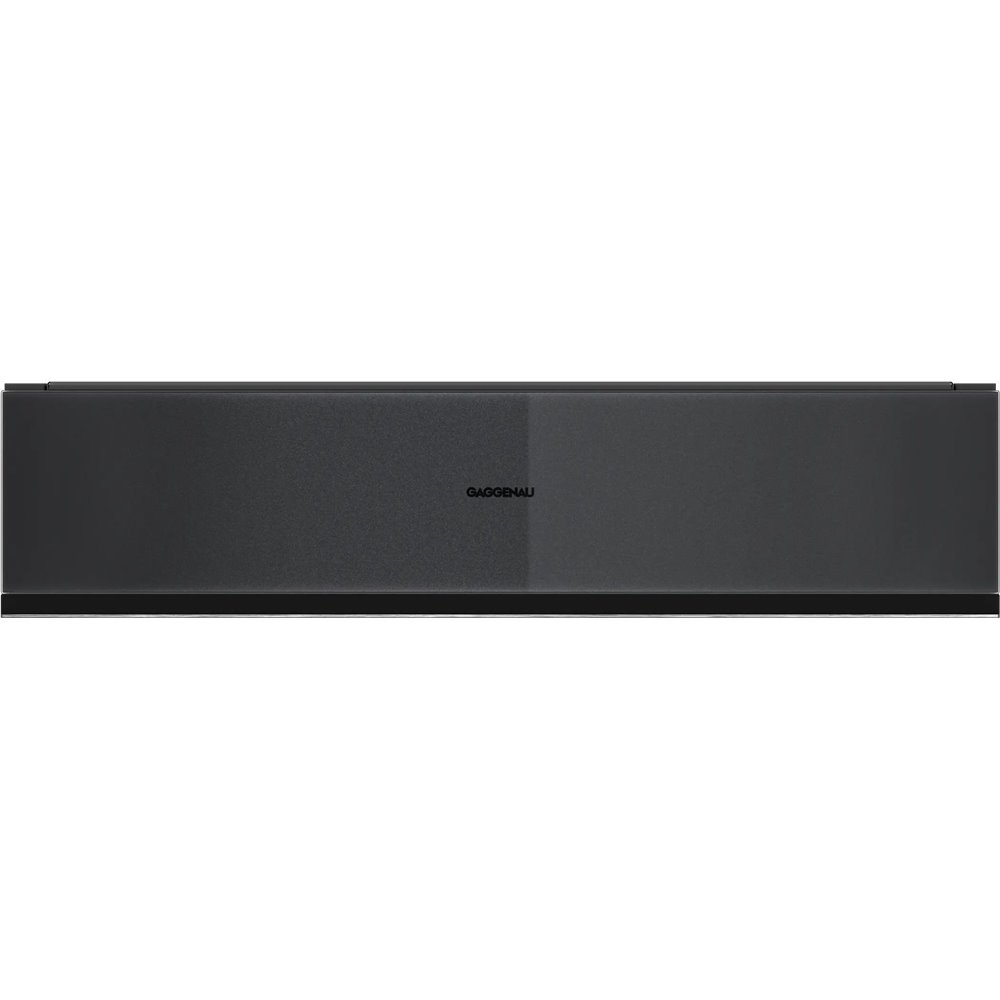

Gaggenau gv251100 vacuum drawer 60 cm h 14 cm onyx

Minimalistic Series: the flush-fitting vacuum drawer

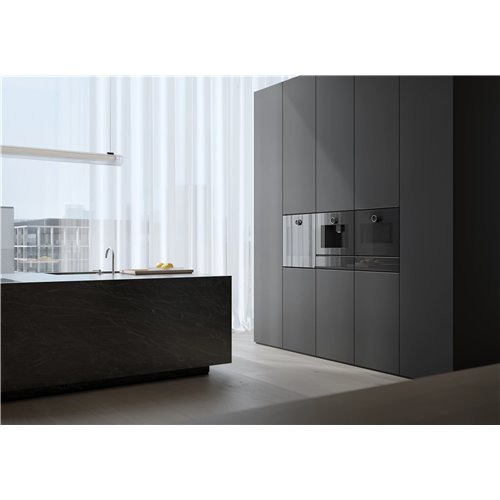

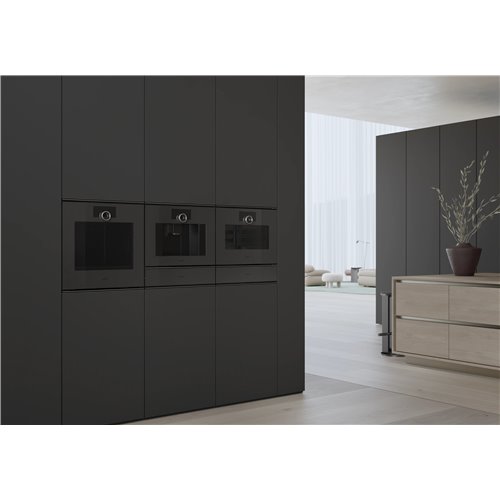

The GV251100 brings professional vacuum sealing to your Minimalistic composition in a niche just 14 cm high. The flush-fitting installation ensures perfect visual continuity with the other modules in the series—ovens, warming drawers, coffee machines—creating a column with a very high aesthetic impact. The Gaggenau Onyx finish with metallic particles ensures color consistency throughout the composition. The handle-free drawer opens with a simple touch thanks to the push-to-open function.

Three internal vacuum levels: from marinating to sous-vide cooking
Inside the chamber you can select three vacuum levels—80%, 95%, and 99%—adapting the intensity to the type of food and the desired application. The light sous vide (80%) is ideal for quick marinades: in just a few minutes, the aromas penetrate deeply into meat, fish, and vegetables. The extended 95% level significantly extends shelf life in the refrigerator and freezer. The 99% level, combined with a thermostatic bath, opens the door to professional sous vide cooking with absolutely precise results.

External sous vide: bottles, bags, and containers without limits
The GV251100 is not limited to the internal chamber: automatic recognition of the external sous vide connection allows you to work with rigid containers or wine bottles outside the chamber, selecting between three levels (50%, 75%, 90%). An anti-return membrane protects the suction pump when working with liquids. The package includes an external vacuum adapter, 1 vacuum hose, 1 bottle adapter, and 3 bottle caps, as well as 50 small and 50 large bags.

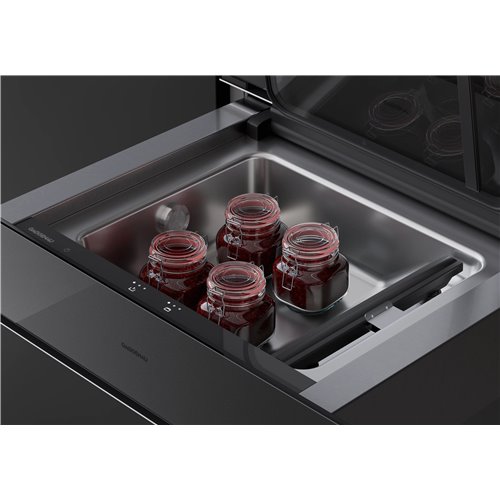

Chamber Construction: Materials, Dimensions, and Safety
The extraction chamber is made of hygienic stainless steel, with a usable height of up to 80 mm and a usable space of 210 x 285 mm. It supports bags up to 240 x 350 mm and has 3 heat-sealing levels for different material resistances. The 44 mm removable raised base expands its versatility. The sealing bar with non-stick coating is removable for cleaning. The safety glass lid opens automatically at the end of each vacuum cycle, without manual intervention. The maximum load capacity is 10 kg.

Drying program and pump maintenance
The suction pump drying program is a professional durability feature rarely found in domestic vacuum drawers. This cycle removes any residual humidity from the circuit, protecting the pump and ensuring consistent performance over time. Combined with regular cleaning of the stainless steel chamber — which can be completely removed for washing — the GV251100 maintains its performance unchanged over the long term.

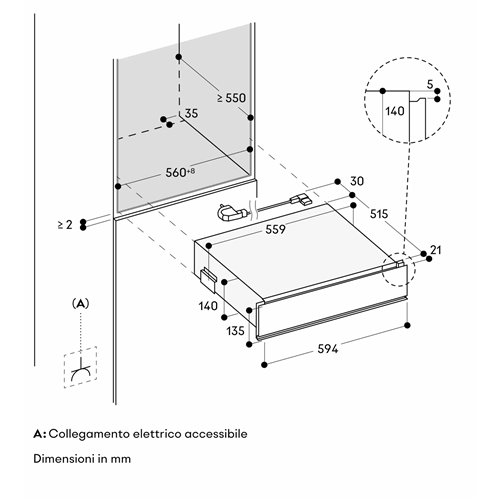

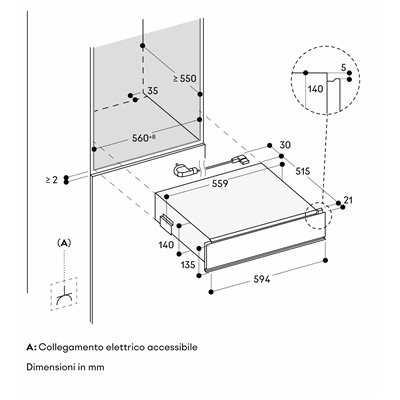

Installation notes and combinations in the column
The drawer is installed in a 14 cm niche without a back panel. Other appliances from the GO, GS, GM, and GC series can be installed directly above the drawer without the need for an intermediate shelf. The protrusion from the front to the cabinet is 21 mm. The electrical socket can be positioned behind the appliance.

Highlights

Flush installation

Can be integrated into a 14 cm high niche

Hygienic stainless steel extraction chamber, usable height up to 80 mm

3 vacuum levels inside the chamber: 80%, 95%, 99%

3 vacuum levels outside the chamber: 50%, 75%, 90%

Automatic recognition of the vacuum connection outside the chamber

Handleless drawer

Push-to-open function

SPECIFICATIONS

Application

Vacuum for sous-vide cooking

For marinating and seasoning quickly

Prolonged food preservation

Vacuum packing can also be achieved with external containers

Vacuum packing of bottled liquids outside the chamber

Operation

Regulation with touch controls

Features

Net volume 7 litres

Max. load capacity 10 kg

Maximum vacuum bag dimensions (WxD): 240x350 mm

3 heat sealing levels for different bag material strengths

Sealing bar with non-stick coating, removable

Safety glass lid, opens automatically after the vacuum cycle

Raised base, 44 mm, removable

Usable space in the suction chamber (WxD): 210x285 mm

Membrane to prevent backflow of liquids outside the chamber during vacuuming

Drying program for the suction pump

Planning notes

Plan the niche without a rear wall

Protrusion from the front of the appliance to the cabinet of 21 mm

Installation of GO/GS/GM/GC possible directly above the drawer without intermediate shelf

The socket can be provided behind the appliance

Connection values

Total power consumption 0.32 kW

Connecting cable 1.50 m with plug

Accessories included

50 vacuum bags, small

50 vacuum bags, large

1 raised vacuum base

1 adapter for vacuuming outside the chamber

1 vacuum hose

1 adapter for bottles

3 stoppers for vacuuming bottles

Special accessories (can be ordered through Gaggenau Service)

00 578 813: Vacuum Bags, Small

00 578 814: Vacuum Bags, Large
