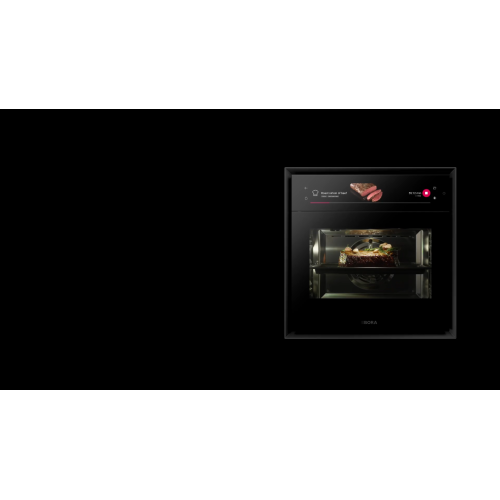

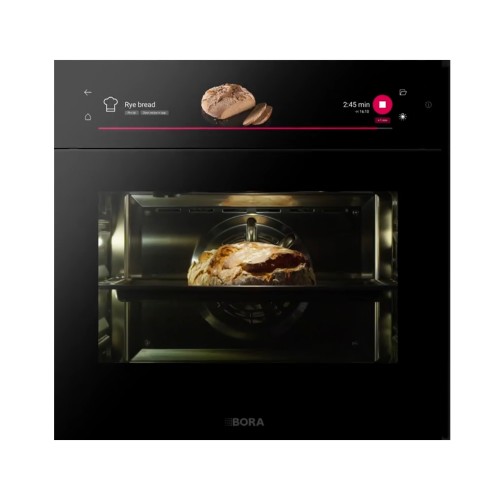

BORA X BO
The professional steam oven for the home.
Steamer and oven in one. Thanks to innovative steam and hot air technology and intuitive controls, perfect and uniform cooking results on all three levels are no longer a problem in everyday food preparation.

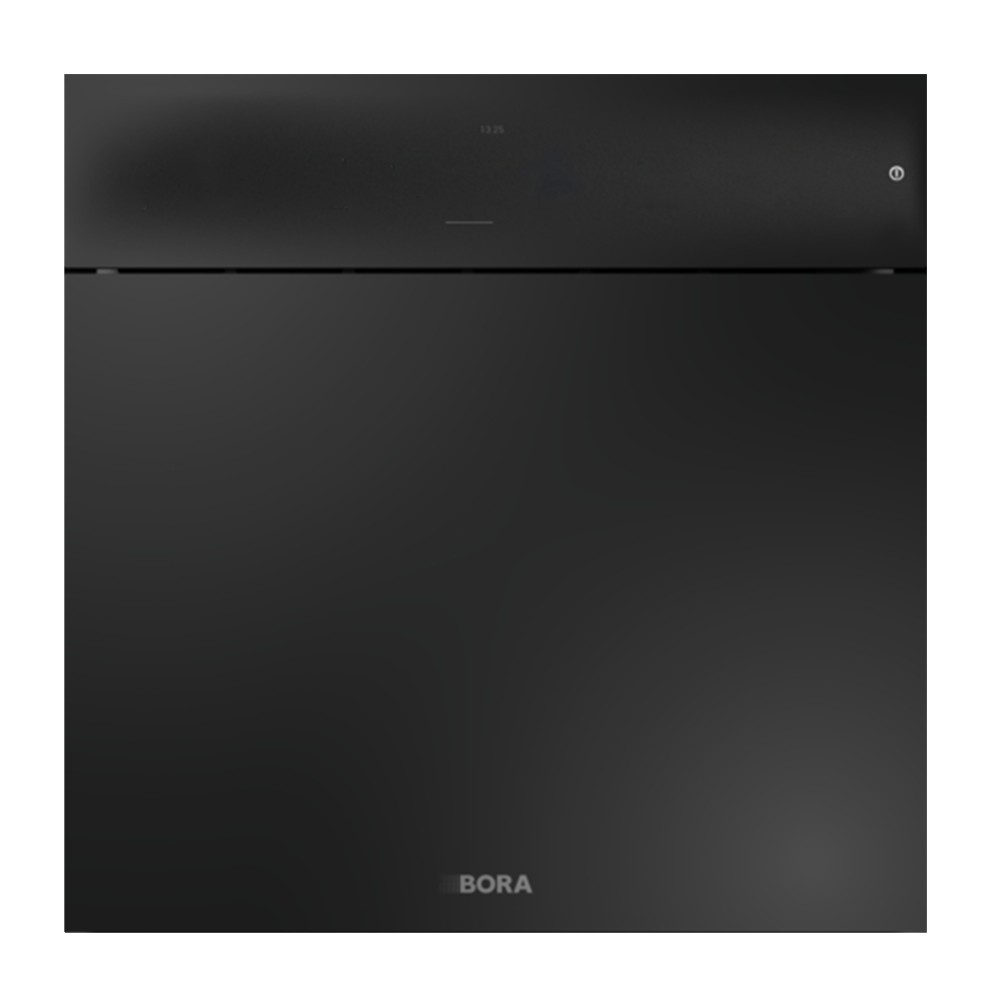

Premium design with a large touch display - Deep, discreet black. Precise contours and at the same time a conscious discretion: the BORA X BO stands out with its high-quality glass surfaces, multi-level lighting in the stainless steel cooking compartment and an operating concept that, without buttons or dials, is controlled via a large 19-inch touch display.

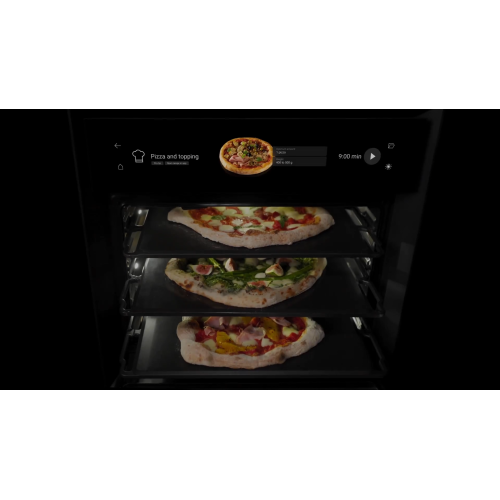

Preset programmes and perfect cooking results on all levels - Perfectly preset programmes enable particularly uniform cooking results and simplify the switch from conventional oven to steam and hot air cooking with Rapid Air Technology. Your results will be perfect even when cooking on all three levels at the same time.
Fully automatic thorough cleaning - Fully automatic cleaning makes your work even more convenient. Cleaning and drying are automatic: simply screw the environmentally friendly and recyclable cleaning cartridge into the centre of the cooking grate.
Automatic vapour extraction and effective odour filtration - With BORA Smart Open, vapours are automatically extracted from the cooking compartment before you open the door. This prevents steam from spraying onto the front of the unit and into your face. The odour filter also neutralises unpleasant odours. Changing the filter is child's play.
Convenient control with BORA JOY - With the BORA JOY app, you can always find the right recipe and the ideal settings for your BORA X BO, for even more cooking enjoyment. BORA products can be saved in the BORA JOY app. When you're cooking, Pre-set programs are automatically inserted into the selected recipe.
Smart Open - Once the BORA Smart Open door pre-opening is activated, steam is extracted from the cooking compartment before the door is unlocked. This prevents steam from disturbing you when you open the door. If you leave the door in its original position after unlocking, it closes automatically after a certain time, protecting your food and saving energy.

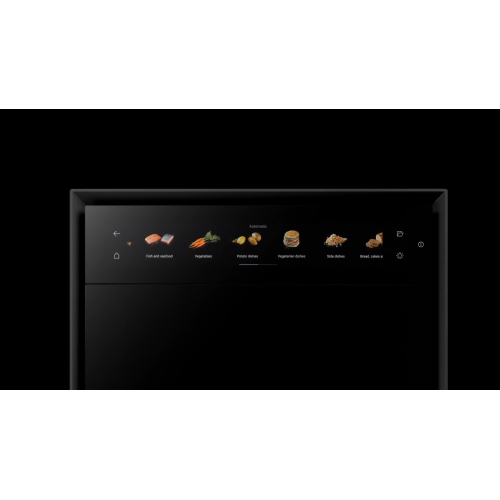

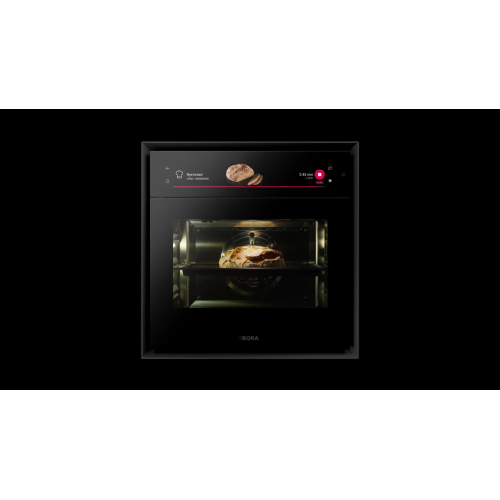

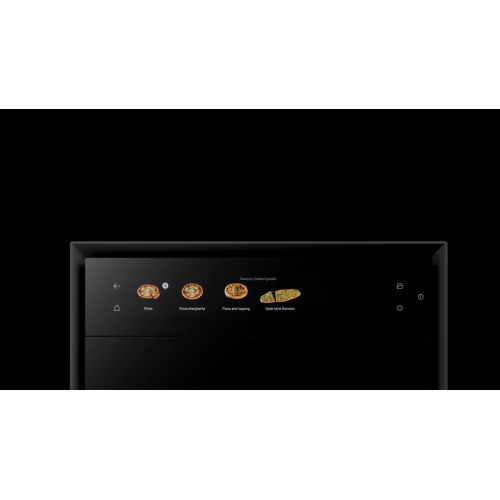

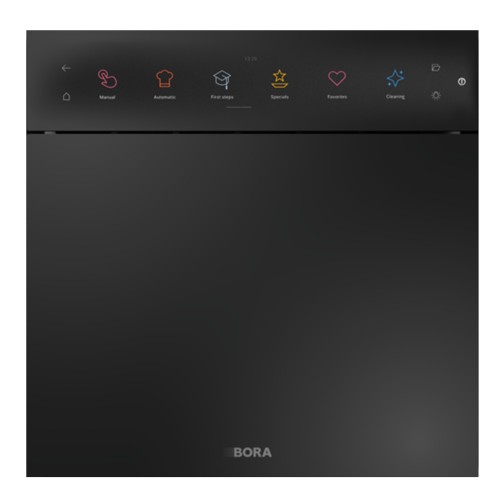

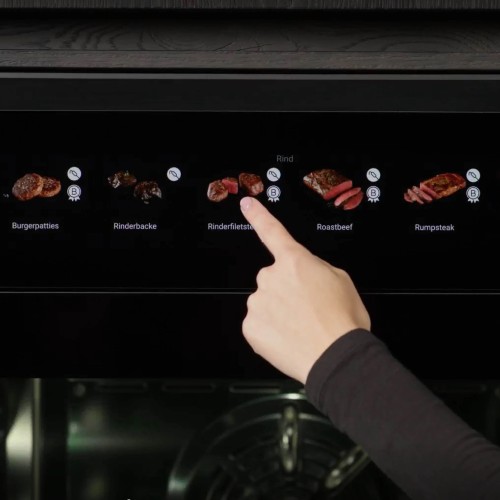

Ease of use - BORA X BO is controlled via a large 19-inch display, which can also be folded out if needed. The touchscreen responds instantly to your touch, just like a smartphone. Numerous pre-installed programs and intuitive user guidance help make working in the kitchen even easier.
Design - Perfect lines - The black frame and minimalist design elevate the BORA X BO to the rank of a work of art. The display impresses with its clear icons that blend seamlessly into the overall aesthetic, further enhanced by the elegant stainless steel cooking compartment.
eSwap – easy filter replacement - A highly efficient activated carbon filter neutralizes all odors, even when preparing fish. For optimal performance, the filter should be replaced regularly. This does not require removing screws or components. Furthermore, changing the filter is easy because it is located on the front of the appliance: simply lift the display! An exclusive feature of BORA X BO.
FEATURES
19-inch fold-out touch display
Multi-level LED lighting
Activated charcoal odour filter
Filter status indicator
Easy filter change from the front
Kitchen thermometer with four-point probe for precise cooking determination
Water connection
Effective heating and powerful hot air fan
Individually adjustable target humidity and target temperature
BORA Smart Open - Automatic door opening and steam extraction
Practical information and tips, first steps and first courses
Connection of a BORA multi-drawer possible
Connection and control possible via the BORA JOY app
Cooking techniques
Hot air (from 30 to 230 °C)
Roasting
Moisturizing baking
Hot air grilling
Braising
Steaming
Stewing
Cooking
Simmering
Sous-vide cooking
Low-temperature cooking
Cleaning
Innovative and fully automatic cleaning of the cooking compartment
State of the anti-odor filter
Effective drying without any additional intervention
Functions
Automatic cooking (pre-installed automatic programs)
Classic cooking (roasting, baking, steaming and hot air grilling)
Manual cooking (freely selectable temperature and humidity)
Presets (e.g. baking paninis, steaming vegetables, braising roasts, etc.)
Special programs (e.g. keeping warm, defrosting, sous vide cooking, etc.)
Adjustable humidity (100%/80%/60%/40%/20%)
Adjustable dehumidification (-20%/-40%/-60%/-80%/-100%)
Marking and saving favorites
Creating and saving customized programs
Individually adjustable food preferences
Notifications for others
Safety devices
Overheating protection, automatic safety switch-off, Display lock, child safety lock
Technical data
Multi-phase supply voltage 380 – 415 V 2N
Single-phase supply voltage 220 – 240 V
Frequency 50 Hz
Maximum power consumption 6100 W
Single-phase fuse / mains connection 1 x 16 A
Two-phase fuse / mains connection 2 x 16 A

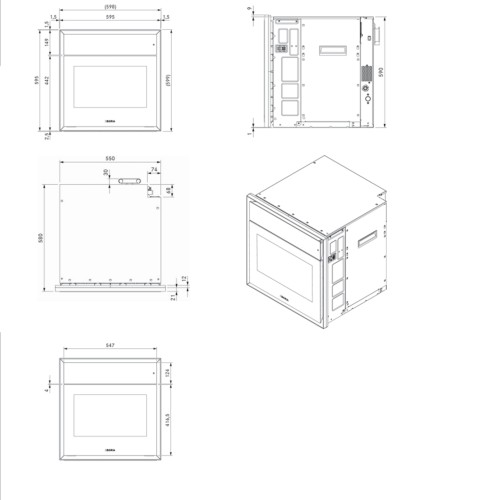

Dimensions (Width x Height x Depth) 598 x 599 x 580 mm
Cooking compartment dimensions (Width x Depth x Height) 480 x 308 x 405 mm
Cooking compartment volume 53 l
Number of shelves 3
Weight (incl. accessories/packaging) 62 kg
Weight (net) 47 kg
Surface material Glass
Temperature setting range 30 - 230 °C
Stepless power control
Water inlet hose 2.5 m long
Water inlet hose connection 3/4″
Water drain hose 2.5 m long
Inner diameter of water drain hose 19 mm
Filter material Activated carbon with ion exchanger
Maximum filter life 1 year
Guaranteed supply period for software updates (from the product release date)
Delivery contents
X BO steam oven, X BO frame spacer, X BO perforated stainless steel cooking basket, X BO cooking grate, X BO universal baking tray, X BO deep universal baking tray, X BO cleaning cartridge, X BO odour filter, water inlet hose, water drain hose, drain sieve, connection piece, operating and assembly instructions, assembly accessories
Product and planning information
Continuous ventilation opening in the casing of at least 160 cm²
No rear cabinet panel must be fitted behind the appliance.
It cannot be installed under a hob.
A distance of at least 30 mm must be maintained between the rear wall of the appliance and the adjacent structure.
A water connection is essential.
The water inlet pressure to the appliance must be at least 200 kPa (2 bar). The appliance is designed for a maximum water inlet pressure of 600 kPa (6 bar). If the pressure is higher than 600 kPa (6 bar), a pressure regulator must be installed for correct operation.
Connect the water drain hose to the surface-mounted or flush-mounted siphon or to the appliance's sink siphon connection.
Only the supplied water supply and drain hoses should be used. The pipes must not be kinked, shortened, extended, or replaced with another pipe.
The water supply and waste pipes must not be installed flush with the wall.
The drinking water tap and siphon must be accessible after installation.
The waste water temperature can reach up to 90°C.
The power cable must be available on site.
Connection to the power supply via plug contacts (Schuko plug) is not permitted.
For an update via WLAN, the appliance must be connected to the Internet. Additional installation instructions for Australia and New Zealand (AU/NZ):
Installation is only permitted in a column.
Minimum installation height: 850 mm above the floor.
