Smeg kdd90cne2 downdraft cooker hood 90 cm black glass

90cm downdraft hood that offers powerful suction directly from the worktop, excellent for capturing excess steam created by induction technology. It disappears from view when not in use and is an innovative solution for a modern and clutter-free kitchen

Electronic controls - Ergonomic and functional, the controls of Smeg hoods are designed to allow easy and immediate use. The top of the range models feature Touch Control commands, which can be activated with a simple and safe touch.

Clean air - The 24-hour air exchange function makes the hood operate for 10 minutes every hour at a very low speed and therefore without noise for a total of 24 hours in order to purify the air in the house, with low energy impact.

Intensive speed - The intensive function allows you to operate the hood at maximum power, to speed up the elimination of the most persistent odors and have a purified environment.

Perimeter suction - The hood's suction is concentrated on the peripheral area, so as to allow a larger suction surface and offer a better level of silence, limiting the vibrations of the filters.

Adjustable light intensity - With the Dimmering function it is possible to raise or lower the intensity of the hood's light by holding down the button light.

Automatic switch-off - The Automatic switch-off option allows you to program the time when the hood will switch off, which will continue to purify the air until it switches off automatically.

SPECIFICATIONS

Type

Family: Hood

Type: DownDraft

Hood width: 90 cm

Filtering: Expulsion or recirculation (for the filtering version, the KITFCDD carbon filter must be purchased separately from the Accessories)

Electronic control: Yes

Perimeter suction: Yes

EAN code: 8017709346126

Aesthetics

Colour: Black

Finish: Glass

Aesthetics: Universal

Design: Retractable

Material: Painted Material

Glass type: Black

Programs / Functions

No. of speeds: 4

Intensive speed: Yes

24 h air exchange function: Yes

Time programming options: Automatic switch-off

Other functions: Delay_function

Controls

Control adjustment: Touch control

Led color: White

Display: Digital

Technical Features

Remote motor: KITRBDD optional

No. of lights: 1

Type of light: LED

Power light: 5 W

Adjustable light intensity: Yes

Light colour temperature (°K): 4000 °K

Maximum suction capacity in free mode (P0): 740 m³/h

Motor power: 250 W

No. of filters: 2

Grease filters: Aluminium

Filter change indicator: Yes

Motor inlet diameter: 150 mm

Performance / Energy Label

Energy efficiency class (EEC): A

Fluid dynamic efficiency class (FDEC): A

Grease filtering efficiency class (GFEC): D

Lighting efficiency class (LEC): A

Annual consumption efficiency (AEC): 57 kWh/a

Fluid Dynamic Efficiency (FDE): 29.30

Illumination Efficiency (LE): 40 lux/W

Grease Filtering Efficiency (GFE): 65.1 %

Air flow rate at minimum speed (Qmin): 200 m³/h

Air flow rate at maximum speed (Qmax): 350 m³/h

Air flow rate at intensive speed (Qboost): 720 m³/h

Weighted acoustic power emission at minimum speed (SPEmin): 43 dBA

Weighted acoustic power emission at maximum speed (SPEmax): 53 dBA

Weighted acoustic power emission at intensive speed (SPEboost): 68 dBA

Absorption in Off-mode (Po): 0.49 W

Time increase factor (F): 0.9

Energy efficiency index: 53.1

Air flow rate measured in the condition of maximum efficiency (Qbep): 398 m³/h

Air pressure measured in the condition of maximum efficiency (Pbep): 429 Pa

Electrical power absorbed in the condition of maximum efficiency (Wbep): 162 W

Nominal power of the lighting system (WL): 5 W

Average illumination of the lighting system on the hob (Emiddle): 200 lux

Noise level in the highest configuration (Lwa): 49 dBA

Electrical Connection

Plug: (F;E) Schuko

Electrical connection rating: 255 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Power cord length: 1500 mm

Speed 1

Suction capacity (IEC 61591): 200 m³/h

Noise level (IEC 60704-2-13): 43 dBA

Power: 45 W

Speed 2

Suction capacity (IEC 61591): 280 m³/h

Noise level (IEC 60704-2-13): 49 dBA

Power: 100 W

Speed 3

Suction capacity (IEC 61591): 350 m³/h

Noise level (IEC 60704-2-13): 53 dBA

Power: 135 W

Speed 4

Suction capacity (IEC 61591): 440 m³/h

Noise level (IEC 60704-2-13): 57 dBA

Power: 170 W

Intensive speed

Suction capacity (IEC 61591): 720 m³/h

Noise level (IEC 60704-2-13): 68 dBA

Power: 250 W

Logistics information

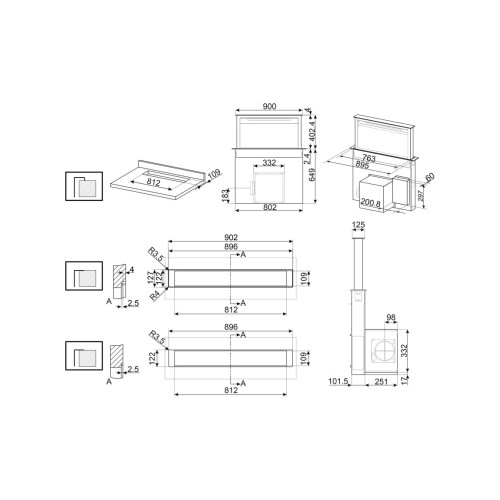

Product dimensions (mm): 1051x900x352

Width: 900 mm

Product depth (mm): 352 mm

Product height (mm): 1051 mm

Net weight (kg): 35,000 kg

Gross weight (kg): 40,900 kg

Width of the packaged product: 930 mm

Depth of the packaged product: 602 mm

Height of the packaged product: 780 mm

Packaged product dimensions (mm): 780X930X602

Packaging: Cardboard

Packaging composition - paper and cardboard (kg): 6.037 kg

Packaging composition - polystyrene (kg): 0.718 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.071 kg

Accessories Included

Motorized opening: Yes

Remote control: Optional

Tube reduction: Yes

Optional accessories on request when ordering

- KITFCDD60 carbon filter

- KITRBDD remote motor

- RCKF2 remote control
