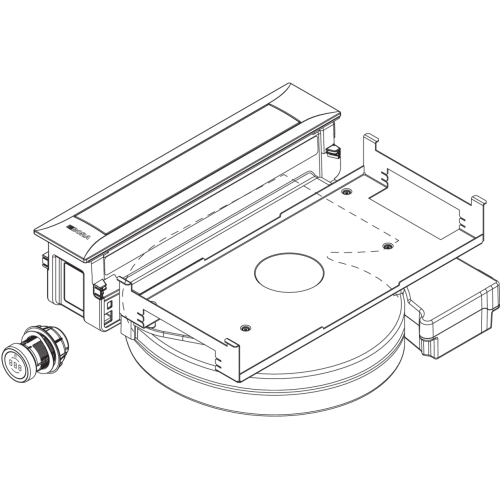

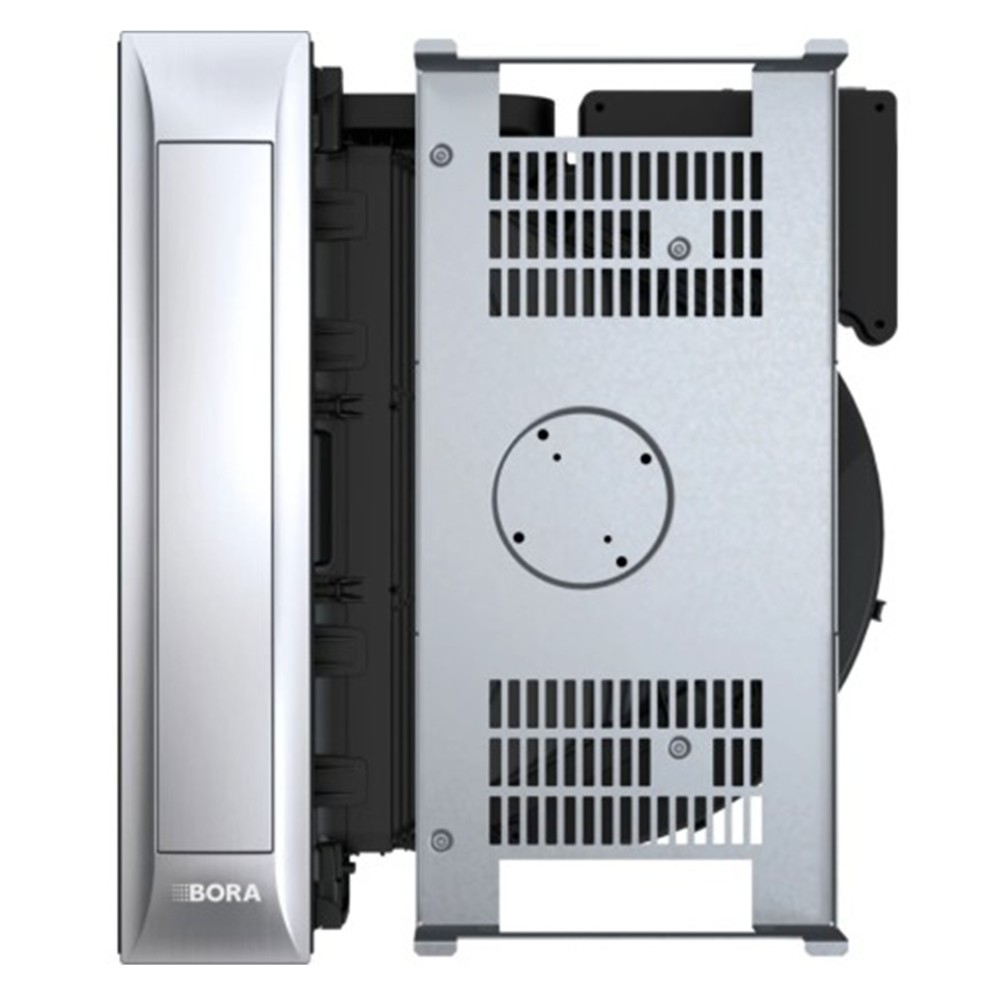

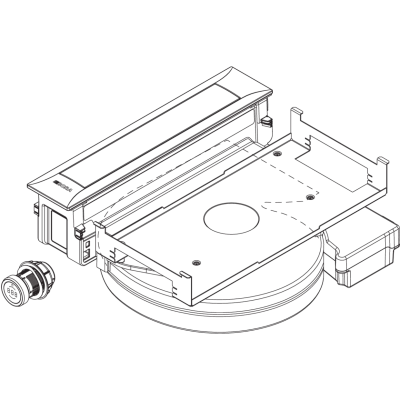

Bora pkas3 Professional 3.0 modular cooker hood with integrated ventilation, stainless steel

BORA Professional 3.0

High-end extractor systems with innovative rotary controls and customisable cooktops.

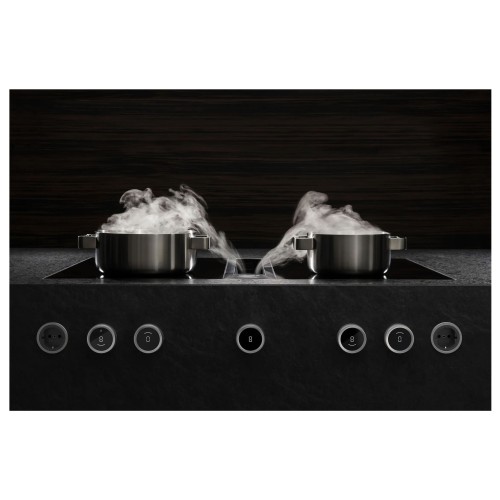

It goes without saying that BORA Professional 3.0 takes cooking enjoyment and fume extraction to a new level in terms of aesthetics, functionality and convenience, and makes a statement in the sophisticated kitchen style. Our flagship BORA cooktop extractor system is one of two modular systems that you can freely combine with one, two or more cooktops. It features larger, individually configurable cooktops with a depth of 540 mm and innovative analogue-digital operation via rotary controls and touch options.

The built-in cooktops offer maximum space for cooking, even when placing larger cookware behind each other. Numerous practical functions such as the child lock and pause function can be activated quickly and efficiently using the extractor's central control lever. Parts exposed to cooking fumes can be easily removed through the large, easily accessible inlet opening. They are dishwasher-safe, taking up very little space. The system stands out for the aesthetics and tactile feel of the black glass control knobs located on the front of the cooker. The cutting-edge design is completed by the white LED display with its well-defined lines.

SPECIFICATIONS

General

Modular system

Integrated fan

Intuitive control knob

Automatic shut-off valve

Integrated grease collection tray

Stainless steel grease filter

Central components for the overall system

Functions

Automatic suction system

Delayed automatic switch-off function

Power level

Level indicator and filter maintenance indicator (only in filter mode)

Cleaning function

Short timer

Super Simple Mode

Safety devices

Child lock, Automatic safety switch-off, anti-trap protection

Technical data

Supply voltage 220 – 240 V

Frequency 50/60 Hz

Maximum power consumption 550 W

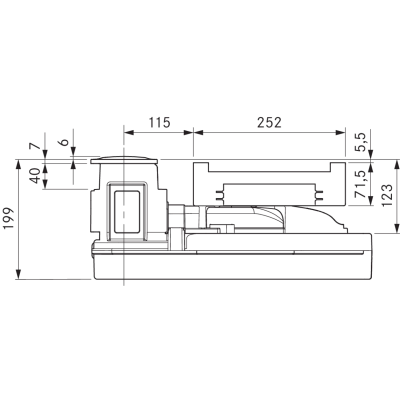

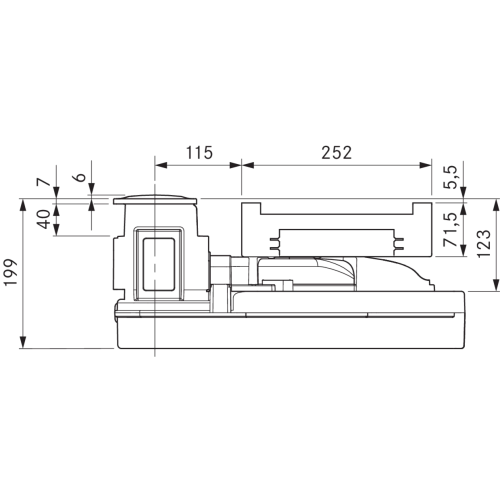

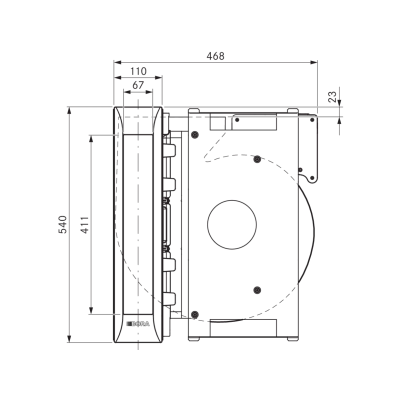

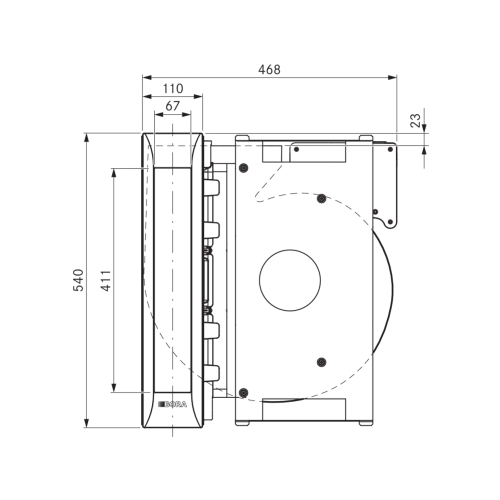

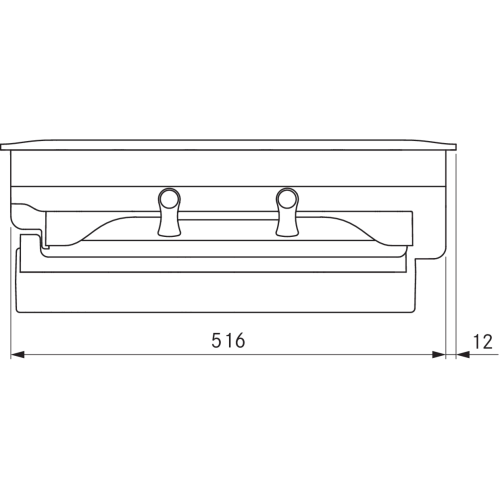

Dimensions (width x depth x height) 468 x 540 x 199 mm

Weight (incl. accessories/packaging) 12.5 kg

Surface material Stainless steel 1.4016

Cooktop extractor power levels 1 – 9, P

BORA Ecotube duct connection

Power supply cable for control unit 2 m

Connecting cable for control knob 0.25 m

Box contents

Cooktop extractor system with integrated fan PKAS3 / PKAS3AB

Control knob

Shut-off valve

Stainless steel grease filter

Filter tray

Collection tray

Connecting cable for control knob

Power cable with type E + F plug

Instructions for use and assembly

Installation accessories kit

Compatible accessories

Stainless steel grease filter PKA1FF

Shut-off valve PKA1VK / PKA1VKAB

Filter tray PKA1FW

Technical characteristics and installation

System available in recirculation or exhaust air version

Duct connection located on the rear right side of the appliance

Compatible with all BORA Professional cooktops 3.0

Up to 2 cooktops can be connected to each Pro extractor

Supports long and complex exhaust air ducts via an additional fan module

Individually adjustable worktop height

Minimum worktop depth: ≥ 700 mm

Flush and flush-mounted installation available

Drawers and shelves in the built-in unit must be removable for maintenance and cleaning

Compatible with all BORA sockets

After installation, the appliance is sealed all around with heat-resistant silicone
