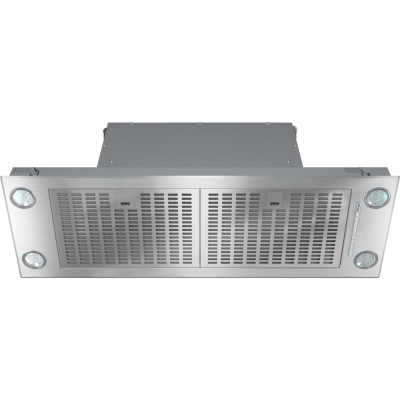

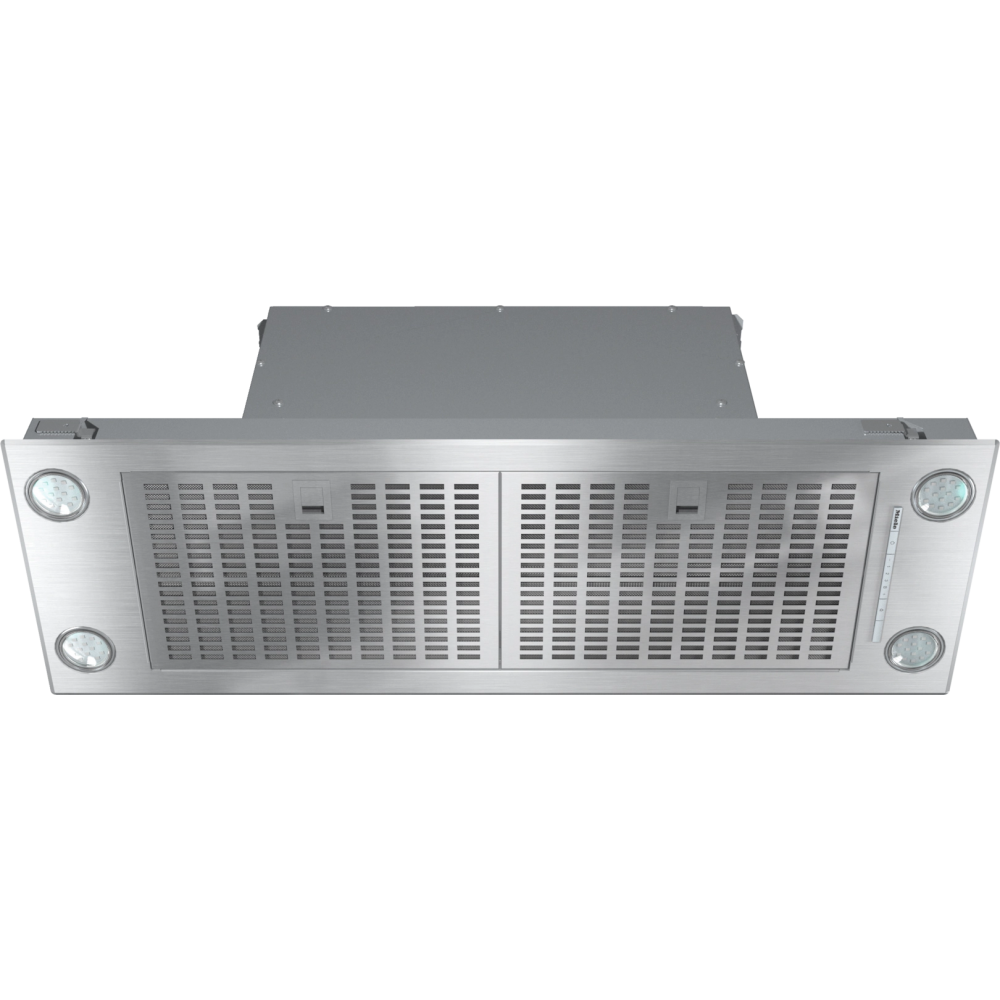

Miele 2390 built-in hood 90 cm stainless steel

Stainless steel grease filter (10 layers)

Easy to use and effective against grease

Miele hoods are equipped with a 10-layer stainless steel metal grease filter and guarantee excellent grease separation. When removed, the integrated fall protection protects the hob from damage. The cover and filter frame are made of high-quality stainless steel, ensuring no visible discoloration when cleaned in the dishwasher and maintaining a long-lasting, beautiful appearance.

Handmade in Germany

Every Miele extractor hood is unique

All Miele extractor hoods are developed and manufactured at the Miele plant in Arnsberg, and the majority are handmade. Each hood is unique. The production steps are distinguished by meticulous craftsmanship: bending, welding, and grinding. The commitment of our employees, their know-how, their creativity and their outstanding ability play a fundamental role in Miele's market position.

Product data sheet

Type

Suction unit

Mode

Airflow type Convertible

Recirculation conversion kit available on request DUU 151

Optional activated charcoal filter required DKF19-1

Design

Color Stainless steel

Ease of use

Electronic control

Buttons

Power levels (without intensive level) 3

Easy-to-clean CleanCover hood interior

Efficiency and sustainability

Energy efficiency class (A+++ – D) A

Annual energy consumption in kWh/year 55,30

Fluid dynamic efficiency class A

Lighting efficiency class A

Grease filtering efficiency class A

Filtering system

Number of stainless steel metal grease filters 2

Lighting

LED

Number x Watt 4 x 3 W

Light intensity in Lx 500 lx

Colour temperature in K 3000 Kelvin

Extraction

Double-sided extraction

AC motor

Exhaust air

Air output level 1 (m³/h) 250

Air output level 2 (m³/h) 300

Air output level 3 (m³/h) 360

Air power at intensive level (m³/h) 600

Sound power at level 1 (dB(A) re1pW) 47.00

Sound power at level 1 (dB(A) re1pW) 48.00

Sound power at level 3 (dB(A) re1pW) 52.00

Sound power at intensive level (dB(A) re1pW) 64.00

Sound pressure at level 1 (dB(A) re20µPa) 31.00

Sound pressure level 2 (dB(A) re20µPa) 34.00

Sound pressure level 3 (dB(A) re20µPa) 38.00

Sound pressure intense level (dB(A) re20µPa) 50.00

Recirculation

Air power level 1 (m³/h) 190

Air power level 2 (m³/h) 250

Air power level 2 (m³/h) 320

Air power intense level (m³/h) 500

Sound power level 1 (dB(A) re1pW) 54.00

Sound power level 2 (dB(A) re1pW) 60.00

Sound power level 3 (dB(A) re1pW) 64.00

Sound power intense level (dB(A) re1pW) 72.00

Sound pressure level 1 (dB(A) re20µPa) 39.00

Sound pressure level 2 (dB(A) re20µPa) 45.00

Sound pressure level 3 (dB(A) re20µPa) 49.00

Sound power level intense (dB(A) re1pW) 57.00

Safety

Safety switch-off

Technical data

Width of hood body in mm 884

Height of hood body in mm 63

Depth of hood body in mm 297

Minimum distance from electric hobs in mm 450

Minimum distance from gas hobs (max. 12.6 kW total power, burner ? 4.5 kW) in 650

Net weight in kg 13.00

Length of power cable in m 1.50

Schuko plug

Total absorption in kW 0.23

Voltage in V 230

Protection in A 10

Frequency in Hz 50

Number of phases 1

Installation instructions

Upper air vent connection

Vent connection upper and rear air

Diameter of vent sleeve in mm 150
