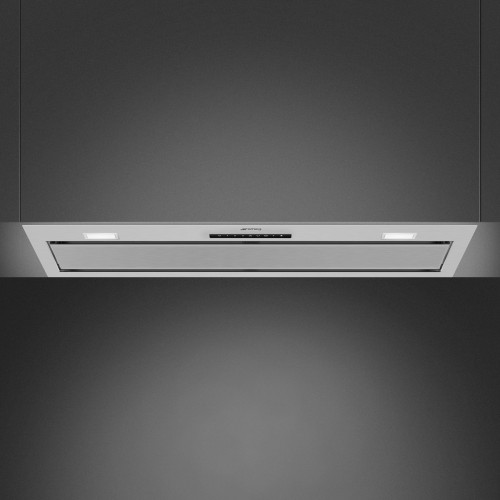

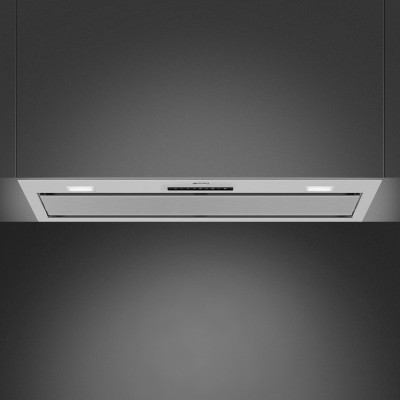

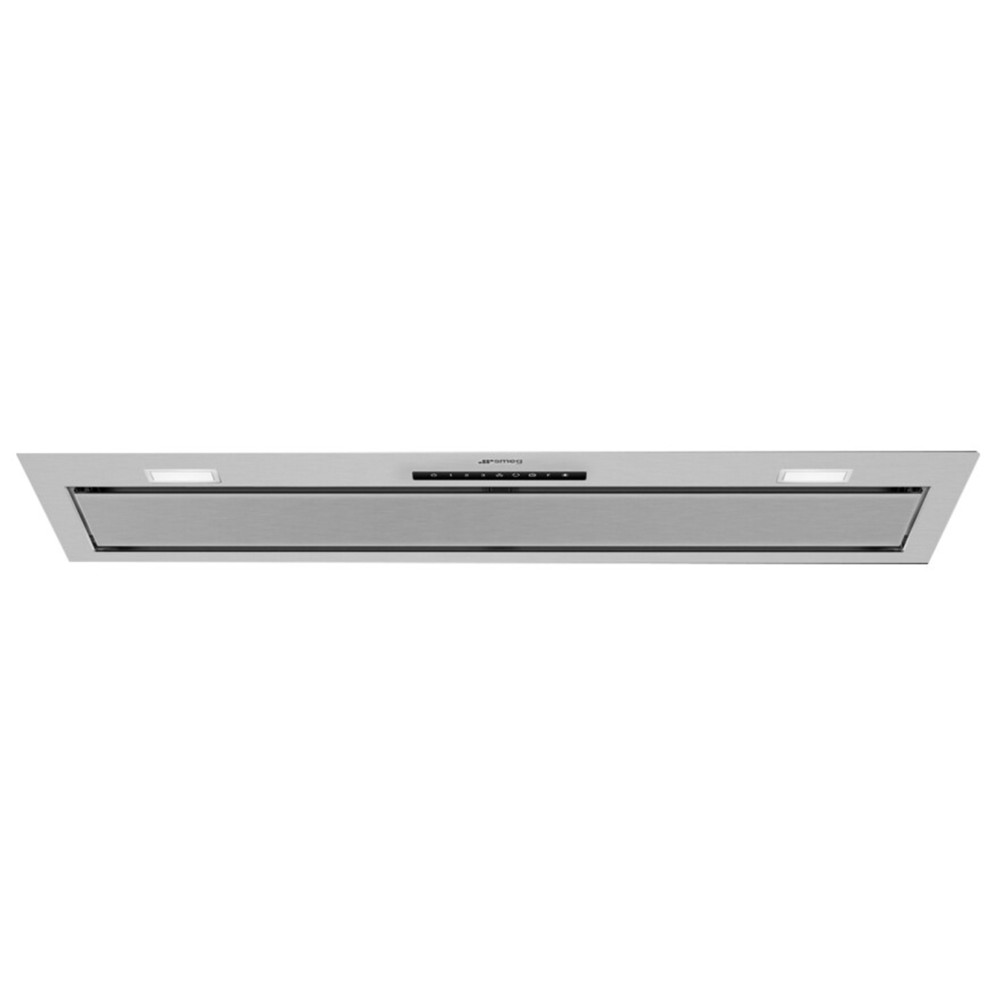

Smeg ksg9p4x built-in undercabinet hood 90 cm stainless steel

Integrated 90 cm hood perfect for those looking for a discreet and functional design. With its elegant style and clean lines, this hood integrates perfectly into kitchen furniture, while still offering powerful and silent suction.

Clean air - The 24-hour air exchange function makes the hood operate for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air in the house, with low energy impact.

Intensive speed - The intensive function allows you to operate the hood at maximum power, to speed up the elimination of the most persistent odors and have a purified environment.

Perimeter suction - The hood's suction is concentrated on the peripheral area, so as to allow a larger suction surface and offer a better level of silence, limiting the vibrations of the filters.

Adjustable light intensity - With the Dimmering function it is possible to raise or lower the intensity of the light of the hood by holding down the light button.

SPECIFICATIONS

Type

Product family: Hood

Hood type: Built-in hood

Hood width: 90 cm

Electronic control: YES

Perimeter extraction: YES

EAN code: 8017709319380

Aesthetics

Colour: Stainless steel

Finish: Satin

Aesthetic: Universal

Design: Fully integrated

Material: Stainless steel

Steel type: Brushed

Programmes / Functions

No. of speeds: 3

Intensive speed: Yes

24 h air exchange function: Yes

Time programming options: Automatic switch-off

Auto-Vent 2.0: Yes

Controls

Control adjustment: Touch control back-lighted White

Led colour: White

Technical Features

Number of lights: 2

Light type: LED

Light power: 2.3 W

Adjustable light intensity: Yes

Light colour temperature range (°K): 2700° - 4000° °K

Maximum suction capacity in free mode (P0): 730 m³/h

Motor power: 230 W

Number of filters: 2

Grease filters: Aluminium

Filter change indicator: Yes

Minimum installation distance from gas hob: 650 mm

Minimum installation distance from electric hob: 650 mm

Motor inlet diameter: 150 mm

Non-return valve: Yes

Performance / Energy Label

Energy efficiency class (EEC): A

Fluid dynamic efficiency class (FDEC): A

Grease filtering efficiency class (GFEC): C

Lighting efficiency class (LEC): A

Annual energy consumption efficiency (AEC): 53 kWh/a

Efficiency fluid dynamic efficiency (FDE): 30.1

Illumination efficiency (LE): 31.1 lux/W

Grease filtering efficiency (GFE): 77.9 %

Air flow rate at minimum speed (Qmin): 242 m³/h

Air flow rate at maximum speed (Qmax): 481 m³/h

Air flow rate at intensive speed (Qboost): 697 m³/h

Weighted acoustic power emission at minimum speed (SPEmin): 45 dB(A)

Weighted acoustic power emission at maximum speed (SPEmax): 60 dB(A)

Weighted acoustic power emission at intensive speed (SPEboost): 67 dB(A)

Power consumption in Off-mode (Po): 0.49 W

Time increase factor (F): 0.9

Energy efficiency index: 52.6

Air flow rate measured in the condition of maximum efficiency (Qbep): 369 m³/h

Air pressure measured in the condition of maximum efficiency (Pbep): 446 Pa

Electrical power input in the condition of maximum efficiency (Wbep): 152 W

Nominal power of the lighting system (WL): 5 W

Average illumination of the lighting system on the hob (Emiddle): 143 lux

Noise level in the highest configuration (Lwa): 60 dB(A)

Electrical Connection

Rated electrical connection data: 235 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Power cord length: 1500 mm

Speed 1

Suction capacity (IEC 61591): 243 m³/h

Noise level (IEC 60704-2-13): 45 dB(A)

Power: 131 W

Speed 2

Suction capacity (IEC 61591): 362 m³/h

Noise level (IEC 60704-2-13): 53 dB(A)

Power: 164 W

Speed 3

Suction capacity (IEC 61591): 481 m³/h

Noise level (IEC 60704-2-13): 59 dB(A)

Power: 186 W

Intensive Speed

Suction capacity (IEC 61591): 697 m³/h

Noise level (IEC 60704-2-13): 67 dB(A)

Power: 224 W

Logistics Information

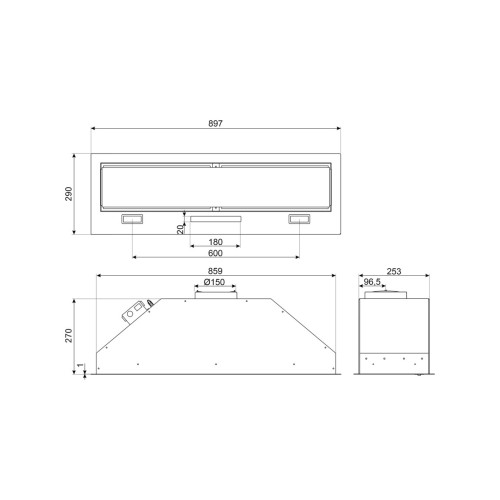

Product dimensions (mm): 335x897x300

Width: 897 mm

Product Depth (mm): 300 mm

Product Height (mm): 335 mm

Net Weight (kg): 11,500 kg

Gross Weight (kg): 14,250 kg
