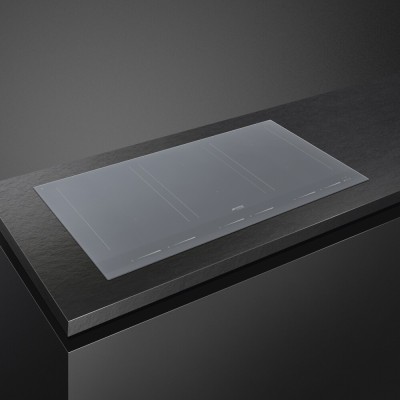

Smeg sim1964ds 90cm induction hob glass ceramic grey

SPECIFICATIONS

Type

Family: Hob

Size: 90 cm

Type: Induction

Built-in: Semi-flush with the possibility of flush-mounting

Power supply: Electric

EAN code: 8017709309763

Aesthetics

Colour: Silver

Finish: Glass

Aesthetics: Linea

Material: Glass

Glass type: 'Glassy' ceramic

Type of control adjustment: Multi Slider

Position of controls: Front

Slider: Yes

LED colour of controls: White

Glass edge: Straight

Screen printing colour: Grey

Programs / Functions

Total number of cooking zones: 6

Number of induction cooking zones: 6

Time programming options: Automatic switch-off

Number of cooking zones with booster: 6

Number of Flexible Zones: 3

Main on/off button: Yes

Power levels: 9

Auto-Vent 2.0: Yes

Options

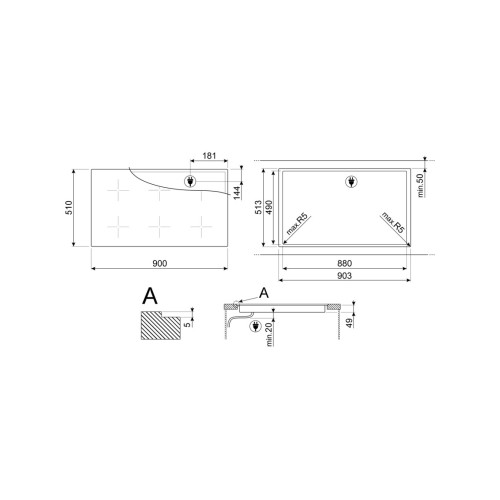

Built-in hole: 490x880 mm

Double Booster: Yes

Multizone option: Yes

Auto Multizone: Yes

Flexible Zone Type: MultiZone

End of cooking timer: 6

Pause option: Yes

Minutes: 1

End of cooking acoustic alarm: Yes

Remaining time indicator: Yes

Power Limiter option: Yes Advance

Power Limiter option in W: 2400 to 11100 - 100 W steps

Show Room Demo option: Yes

Grill function: Yes

Button Lock / Child Safety option: Yes

Automatic heat maintenance function: Yes

Bridge option: si-AUTO

Quick start: Yes

Quick level selection: Yes

Cooking zones

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Front centre

4th zone position: Rear centre

5th zone position: Front right

6th zone position: Rear right

1st zone type: Induction - Multizone

2nd zone type: Induction - Multizone

3rd zone type: Induction - Multizone

4th zone type: Induction - Multizone

5th zone type: Induction - Multizone

6th zone type: Induction - Multizone

1st zone dimensions: 22.0x18.0 cm

2nd zone dimensions: 22.0x18.0 cm

Dimensions 3rd zone: 22.0x18.0 cm

Dimensions 4th zone: 22.0x18.0 cm

Dimensions 5th zone: 22.0x18.0 cm

Dimensions 6th zone: 22.0x18.0 cm

Dimensions Multizone left: 38.5x23.0 cm

Dimensions Multizone central: 38.5x23.0 cm

Dimensions Multizone right: 38.5x23.0 cm

Power 1st zone: 2.10 kW

Power 2nd zone: 2.10 kW

Power 3rd zone: 2.10 kW

Power 4th zone: 2.10 kW

Power 5th zone: 2.10 kW

Power 6th zone: 2.10 kW

Double booster power 1st zone: 3 kW

Double booster power 2nd zone: 3 kW

Double booster power 3rd zone: 3 kW

Booster power 1st zone: 2.50 kW

Double booster power 4th zone: 3 kW

Double booster power 5th zone: 3 kW

Double booster power 6th zone: 3 kW

Booster power 2nd zone: 2.50 kW

Booster power 3rd zone: 2.50 kW

Booster power 4th zone: 2.50 kW

5th zone booster power: 2.50 kW

6th zone booster power: 2.50 kW

Technical Features

Automatic adaptation to the diameter of the pan: Yes

Automatic detection of pan position and control: Yes

Pan presence detection: Yes, min 9 cm

Automatic stop in case of overheating: Yes

Automatic stop in case of overflow: Yes

Residual heat indicator: Yes

Protection against accidental ignition: Yes

Performance / Energy Label

Energy consumption of the hob: 192 Wh/Kg

Energy consumption zone 1: 192 Wh/Kg

Energy consumption zone 2: 192 Wh/Kg

Energy consumption zone 3: 192 Wh/Kg

Energy consumption zone 4: 192 Wh/Kg

Energy consumption zone 5: 192 Wh/Kg

Energy consumption zone 6: 192 Wh/Kg

Electrical Connection

Electrical connection rating: 11100 W

Current: 49 A

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60 Hz

Other connection modes: Yes, Mono and Bi-phase

Type of electrical cable supplied: Yes, Single and Two-phase

Type of electrical cable installed: Yes, Three-phase

Power cable length: 120 cm

Logistics Information

Product dimensions (mm): 53x900x510

Product depth: 510 mm

Product width: 900 mm

Product height: 53 mm

Net weight (kg): 12,400 kg

Gross weight (kg): 13,800 kg

Width of the packaged product: 1000 mm

Depth of the packaged product: 620 mm

Height of the packaged product: 110 mm

Packaged product dimensions (mm): 110X1000X620

Packaging: Cardboard

Packaging composition - paper and cardboard (kg): 0.665 kg

Packaging composition - polystyrene (kg): 0.730 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.039 kg
