Ilve ld09 90cm countertop induction hob, graphite matt - Pro line

Kitchen with top configurable in 4 versions: kitchen block with 5 gas burners, 6 gas burners, 4 gas burners and fry top, or 5 induction zones.

90 cm free-standing kitchen block from the Pro Line range of professional household appliances, available with a double electric oven.

TECHNICAL SPECIFICATIONS

INDUCTION HOB LDBI09WM3

5 Induction Zones

Powers

2 Zones Ø 175 mm - 1.4 kW

2 Zones Ø 215 mm - 2.3 kW

1 Zone Ø 265 mm - 2.3 kW

ELECTRIC OVEN OV 60 M3

General features

60 cm multifunction electric oven

Energy class A

Number of functions 9

Operating temperature 30-300°C

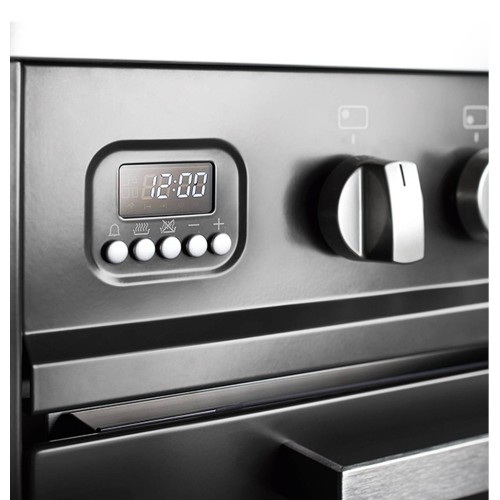

Programmer

Double internal light

Soft-closing door

Triple-glazed cold door (EN60335-2-6-11.101)

Tangential cooling ventilation

Cavity features

Muffle with easy-clean enamel

Internal dimensions 43.7x36x41 cm

Capacity 65 L

Folding grill element

Analog thermostat

Functions

Pizza

Normal static cooking

Cooking from below

Cooking from above - ECO cooking

Grill cooking with the door closed

Fan-assisted grill cooking

Intensive cooking

Multiple fan-assisted cooking

Defrosting

Consumption

Maximum absorption 2.45 kW

Upper electric heating element 1000 W

Lower electric heating element 1100 W

Electric grill 2100 W

Circular heating element 2100 W

ELECTRIC OVEN OV 30 E

General features

30 cm static electric mini oven

Energy class A

Number of functions 4

Operating temperature 50-250°C

Internal light

Soft-closing door

Triple-glazed cold door (EN60335-2-6-11.101)

Tangential cooling ventilation

Cavity features

Muffle with easy-clean enamel

Internal dimensions 27.5x35.5x44 cm

Capacity 43 L

Steam exhaust

Rotisserie

Analog thermostat

Functions

Grill cooking on the door closed

Cooking from above

Cooking from below

Normal static cooking

Consumption

Maximum absorption 1.7 kW

Upper electric heating element 800 W

Lower electric heating element 800 W

Electric grill 1500 W

KITCHEN AND HOOD FINISHES AVAILABLE ON REQUEST WHEN ORDERING

Antique white - White - Stainless steel - Burgundy red
