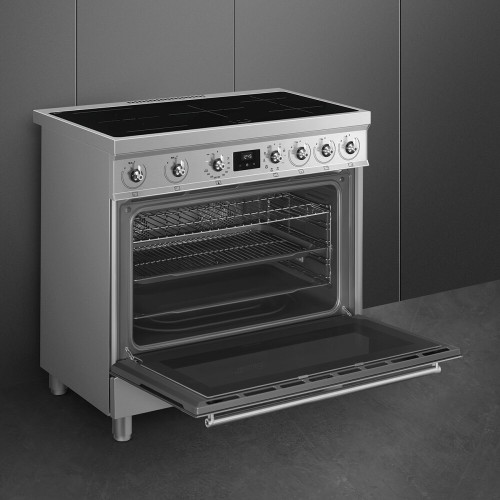

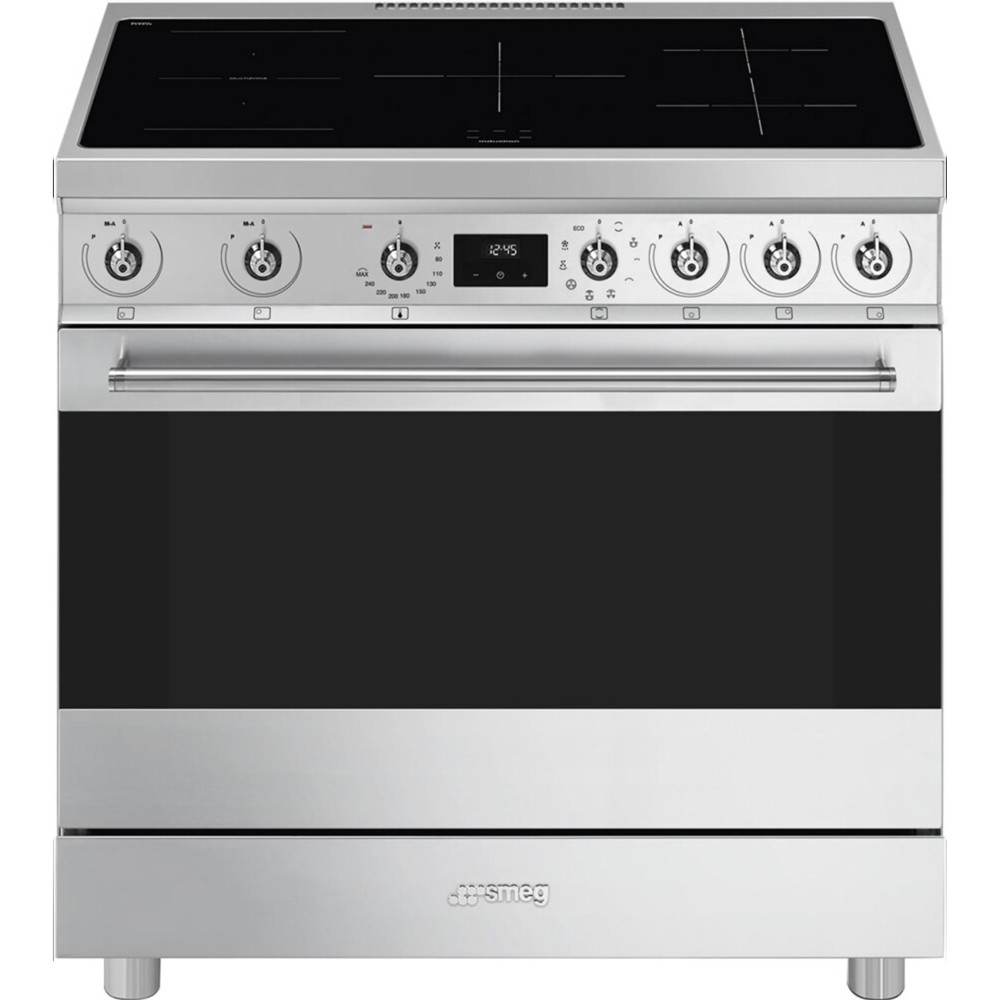

Smeg c9imx2 90cm countertop induction hob stainless steel

SPECIFICATIONS

Type

Family: Kitchen

Kitchen category: 90x60 cm

Hob power supply: Electric

Number of ovens: 1

Hob type: Induction

Main oven type: Fan assisted

Cleaning system: Vapor Clean

EAN code: 8017709321314

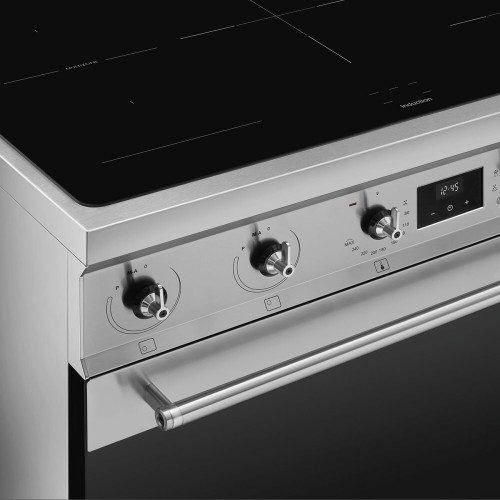

Aesthetics

Colour: Stainless steel

Finish: Satin

Aesthetics: Classic

Design: Square

Series: Sinfonia

Material: Stainless steel

Door: With 2 bands horizontal

Control panel finish: Fingerprint-proof steel

Hob colour: Stainless steel

Handle: Smeg Classica

Knob colour: Steel

Display: Touch

Glass type: Eclipse

Handle colour: Brushed stainless steel

Knobs: Smeg Classica

No. of knobs: 7

Feet: Silver

Compartment: Tip-up

Programs / Functions

Traditional cooking functions

Static

Fan-assisted

Thermo-ventilated

Eco

Narrow grill

Wide grill

Wide fan-assisted grill

Base

Base fan assisted

Cleaning functions

Vapor clean

Other functions

Timed defrosting

Hob options

Multizone option: Yes

Control lock option: Yes

Power limiter option: Yes

Power limiter option in W: 3700, 4800, 7400 W

Main oven options

Time programmer: Yes

End of cooking acoustic alarm: Yes

Minimum temperature: 50 °C

Maximum temperature: 260 °C

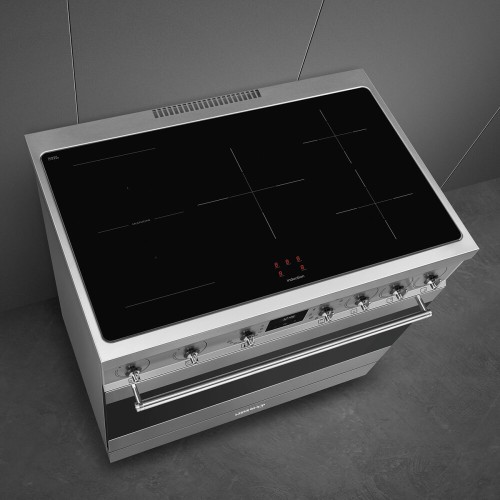

Hob technical features

Total number of cooking zones: 5

Number of cooking zones with booster: 5

Position of 1st zone: Front left - Induction - Multizone

Position of 2nd zone: Rear left - Induction - Multizone

Position of 3rd zone: Central - Induction - Single

Position of 4th zone: Rear right - Induction - Single

Position of 5th zone: Front right - Induction - Single

Dimensions of 1st zone: 21.0x19.0 cm

Dimensions of 2nd zone: 21.0x19.0 cm

Dimensions of 3rd zone: Ø 27.0 cm

Dimensions of 4th zone: Ø 18.0 cm

Dimensions of 5th zone: Ø 21.0 cm

1st zone power: 2.10 kW - booster 2.30 kW

2nd zone power: 1.60 kW - booster 1.85 kW

3rd zone power: 2.30 kW - booster 3.00 kW

4th zone power: 1.20 kW - booster 1.40 kW

5th zone power: 2.30 kW - booster 3.00 kW

Automatic shutdown in case of overheating: Yes

Automatic adjustment to the diameter of the pan: Yes

Minimum diameter indicator for use: Yes

Selected zone indicator: Yes

Residual heat indicator: Yes

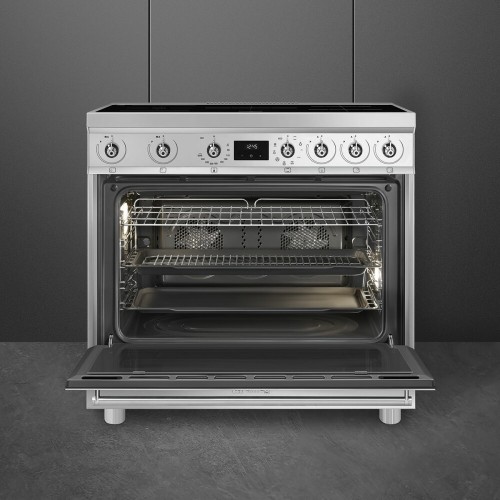

Main oven technical characteristics

Net cavity volume: 115 l

Gross volume of the first cavity: 129 l

Cavity material: Ever Clean enamel

Number of shelves: 5

Type of shelves: Frames

Number of lights: 2

Type of lights: Halogen

Light power: 40 W

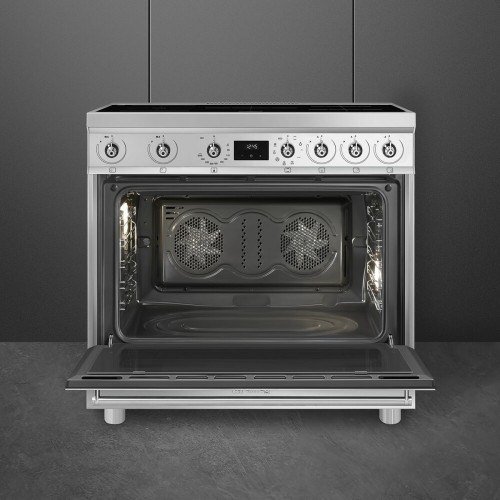

Number of fans: 2

Cooking time programming options: Start and end

Door opening: Tilting

Light switches on when door opens: Yes

Removable door: Yes

Full glass internal door: Yes

Removable internal glass: Yes

Number of oven door glasses: 3

Number of heat-reflecting door glasses: 2

Safety thermostat: Yes

Cooling system: Tangential

Grill type: Electric

Grill element - Power: 1700 W

Wide grill element - Power: 2900 W

Low element - Power: 1700 W

Ceiling element - Power: 1200 W

Circular element - Power: 2 x 1550 W

Temperature regulation: Electromechanical

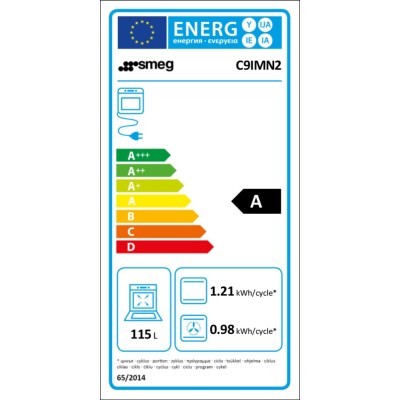

Performance / Energy Label

Energy efficiency class: A

Energy consumption per cycle in forced convection: 3.53 MJ

Energy consumption per cycle in forced convection: 0.98 KWh

Energy consumption per cycle in natural convection: 4.36 MJ

Energy consumption per cycle in natural convection: 1.21 KWh

Energy consumption of the hob: 167.6 Wh/Kg

Energy consumption zone 1: 180 Wh/Kg

Energy consumption zone 2: 178 Wh/Kg

Energy consumption zone 3: 142 Wh/Kg

Energy consumption zone 4: 187 Wh/Kg

Energy consumption zone 5: 151 Wh/Kg

Electrical Connection

Rated electrical connection data: 10600 W

Current: 46 A

Voltage: 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60 Hz

Logistics Information

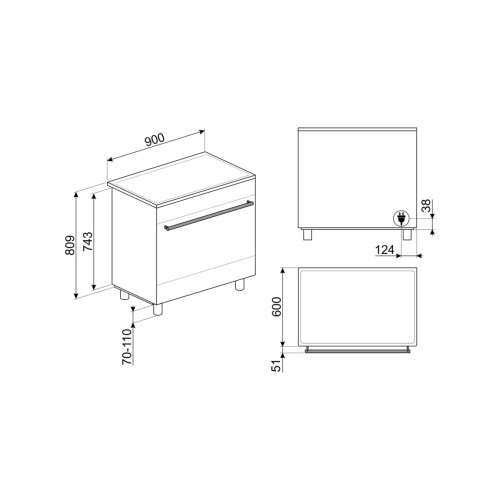

Product Dimensions HxWxD (mm): 900x900x600 mm

Product Width (mm): 900 mm

Product Height (mm): 900 mm

Product Depth (mm): 600 mm

Packed Product Dimensions (mm): 860X960X670 mm

Gross Weight (kg): 86,150 kg

Net Weight (kg): 77,600 kg
