SPECIFICATIONS
Type
Family: Hood
Type: Integrated group
Hood width: 75 cm
Filtering: Expulsion
Electronic control: Yes
EAN code: 8017709328351
Aesthetics
Colour: Stainless Steel
Finish: Satin
Aesthetics: Universal
Design: Retractable
Material: Stainless Steel
Stainless Steel Type: Satin
Programs / functions
No. of speeds: 3
Intensive speed: Yes
24 h air exchange function: Yes
Time programming options: Automatic switch-off
V-Condense System: Yes
Auto-Vent 2.0: Yes
Controls
Control adjustment: Touch control back-lighted White
Led colour: White
Technical features
Number of lights: 2
Light type: LED
Light power: 2.3 W
Adjustable light intensity: Yes
Light colour temperature range (°K): 2700° - 4000° °K
Maximum suction capacity in free mode (P0): 820 m³/h
Motor power: 275 W
Number of filters: 2
Grease filters: Stainless steel
Filter change indicator: Yes
Minimum installation distance from gas hob: 650 mm
Minimum installation distance from electric hob: 500 mm
Motor inlet diameter: 150 mm
Non-return valve: Yes
Performance

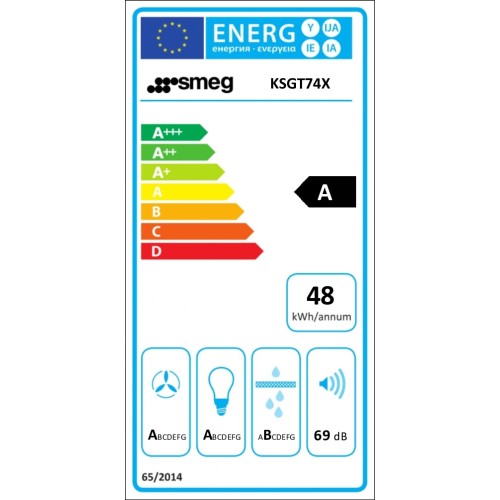

Energy efficiency class (EEC): A
Fluid dynamic efficiency class (FDEC): A
Grease filtering efficiency class (GFEC): B
Lighting efficiency class (LEC): A
Annual consumption efficiency (AEC): 48 kWh/a
Fluid dynamic efficiency (FDE): 30.3
Illumination efficiency (LE): 42.6 lux/W
Grease filtering efficiency (GFE): 87.2 %
Air flow rate at minimum speed (Qmin): 254 m³/h
Air flow rate at maximum speed (Qmax): 603 m³/h
Air flow rate at intensive speed (Qboost): 657 m³/h
Weighted acoustic power emission at minimum speed (SPEmin): 48 dB(A)
Weighted acoustic power emission at maximum speed (SPEmax): 69 dB(A)
Weighted acoustic power emission at intensive speed (SPEboost): 70 dB(A)
Stand-by power consumption (Ps): 0.49 W
Time increase factor (F): 0.9
Energy efficiency index: 51.8
Air flow rate measured in the best efficiency condition (Qbep): 329 m³/h
Air pressure measured in the best efficiency condition (Pbep): 448 Pa
Electrical power input in the best efficiency condition (Wbep): 135 W
Nominal power of the lighting system (WL): 5 W
Average illumination of the lighting system on the hob (Emiddle): 196 lux
Noise level in the highest configuration (Lwa): 69 dB(A)
Electrical connection
Rated electrical connection data: 280 W
Voltage: 220-240 V
Frequency: 50-60 Hz
Power cord length: 1500 mm
SPEED 1
Suction capacity (IEC 61591): 254 m³/h
Noise level (IEC 60704-2-13): 48 dB(A)
Power: 165 W
SPEED 2
Suction capacity (IEC 61591): 442 m³/h
Noise level (IEC 60704-2-13): 61 dB(A)
Power: 201 W
SPEED 3
Suction capacity (IEC 61591): 603 m³/h
Noise level (IEC 60704-2-13): 68 dB(A)
Power: 214 W
INTENSIVE SPEED
Suction capacity (IEC 61591): 657 m³/h
Noise level (IEC 60704-2-13): 70 dB(A)
Power: 213 W
Logistics information

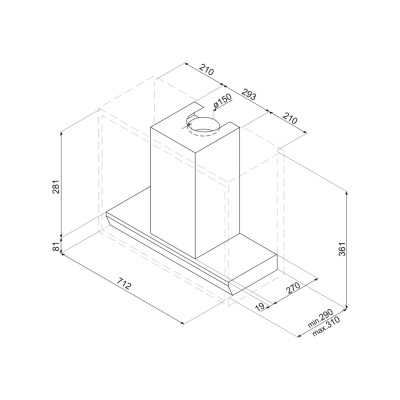

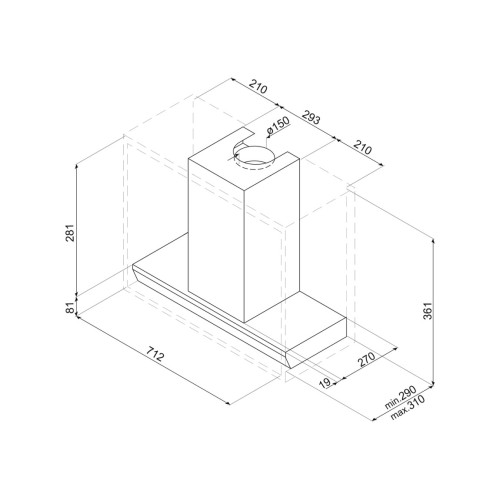

Dimensions (WxDxH): 712 x 290 x 361 mm
Packaging dimensions (WxDxH): 880 x 470 x 420 mm
Net weight: 8.75 kg
Gross weight: 11.91 kg
