Control settings: Touch control back-lit White - Number of speeds: 3 - Intensive speed: Yes - 24 h air exchange function: Yes - Time programming options: Automatic switch-off - V-Condense System: Yes - Auto-Vent 2.0: Yes - Number of lights: 2 LED - Maximum suction capacity in free mode (P0): 820 m³/h - Energy efficiency class (EEC): B
Control settings: Touch control back-lit White - Number of speeds: 3 - Intensive speed: Yes - 24 h air exchange function: Yes - Time programming options: Automatic switch-off - V-Condense System: Yes - Auto-Vent 2.0: Yes - Number of lights: 2 LED - Maximum suction capacity in free mode (P0): 820 m³/h - Energy efficiency class (EEC): B
Secure and verified payments
Paypal, credit card, bank transfer
Guaranteed Products
Buy new products, with original packaging and covered by warranty.
Our experts
We offer you maximum availability by phone and by email.
After-sales assistance
We are always at your disposal, even after the purchase.
SPECIFICATIONS
Type
Family: Hood
Type: Integrated group
Hood width: 60 cm
Filtering: Expulsion
Electronic control: Yes
EAN code: 8017709328320
Aesthetics
Colour: Stainless Steel
Finish: Satin
Aesthetics: Universal
Design: Retractable
Material: Stainless Steel
Stainless Steel Type: Satin
Programs / functions
No. of speeds: 3
Intensive speed: Yes
24 h air exchange function: Yes
Time programming options: Automatic switch-off
V-Condense System: Yes
Auto-Vent 2.0: Yes
Controls
Control adjustment: Touch control back-lighted White
Led colour: White
Technical features
Number of lights: 2
Light type: LED
Light power: 2.3 W
Adjustable light intensity: Yes
Light colour temperature range (°K): 2700° - 4000° °K
Maximum suction capacity in free mode (P0): 820 m³/h
Motor power: 275 W
Number of filters: 2
Grease filters: Stainless steel
Filter change indicator: Yes
Minimum installation distance from gas hob: 650 mm
Minimum installation distance from electric hob: 500 mm
Motor inlet diameter: 150 mm
Non-return valve: Yes
Performance
Energy efficiency class (EEC): B
Fluid dynamic efficiency class (FDEC): A
Grease filtering efficiency class (GFEC): D
Lighting efficiency class (LEC): A
Annual energy consumption efficiency (AEC): 52 kWh/a
Fluid dynamic efficiency (FDE): 29.0
Illumination efficiency (LE): 78.5 lux/W
Grease filtering efficiency (GFE): 72.0 %
Air flow rate at minimum speed (Qmin): 235 m³/h
Air flow rate at maximum speed (Qmax): 574 m³/h
Air flow rate at intensive speed (Qboost): 626 m³/h
Weighted acoustic power emission at minimum speed (SPEmin): 48 dB(A)
Weighted acoustic power emission at maximum speed (SPEmax): 69 dB(A)
Weighted acoustic power emission at intensive speed (SPEboost): 70 dB(A)
Stand-by power consumption (Ps): 0.49 W
Time increase factor (F): 1.0
Energy efficiency index: 57
Air flow rate measured in the most efficient condition (Qbep): 308 m³/h
Air pressure measured in the most efficient condition (Pbep): 448 Pa
Electrical power input in the most efficient condition (Wbep): 132 W
Nominal power of the lighting system (WL): 5 W
Average illumination of the lighting system on the hob (Emiddle): 361 lux
Noise level in the highest configuration (Lwa): 69 dB(A)
Electrical connection
Rated electrical connection data: 280 W
Voltage: 220-240 V
Frequency: 50-60 Hz
Power cord length: 1500 mm
SPEED 1
Suction capacity (IEC 61591): 235 m³/h
Noise level (IEC 60704-2-13): 48 dB(A)
Power: 164 W
SPEED 2
Suction capacity (IEC 61591): 418 m³/h
Noise level (IEC 60704-2-13): 62 dB(A)
Power: 199 W
SPEED 3
Suction capacity (IEC 61591): 574 m³/h
Noise level (IEC 60704-2-13): 68 dB(A)
Power: 211 W
INTENSIVE SPEED
Suction capacity (IEC 61591): 626 m³/h
Noise level (IEC 60704-2-13): 70 dB(A)
Power: 209 W
Logistics information

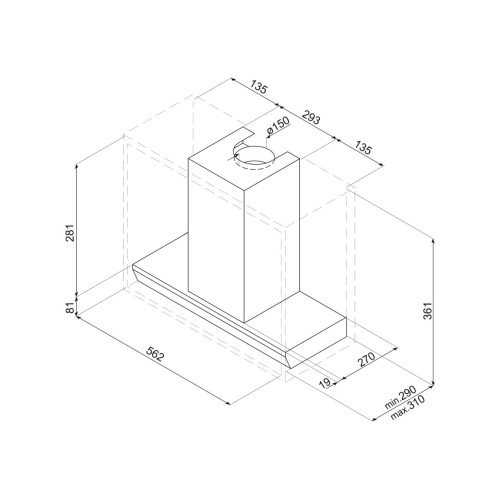

Dimensions (WxDxH): 562 x 290 x 361 mm
Packaging dimensions (WxDxH): 880 x 470 x 420 mm
Net weight: 8.40 kg
Gross weight: 11.84 kg
