Energy class A - Dimensions 90 cm - Control type Touch control - m³/h max 580 - Power (W) 250 - LED BAR 2x1W lighting - Stainless steel metal filters - Heating elements on the glass veil and water collection tray
To activate the K-Link function it is necessary to combine a Mythos K-Link induction hob
Deliveries may be delayed due to the Christmas period
Energy class A - Dimensions 90 cm - Control type Touch control - m³/h max 580 - Power (W) 250 - LED BAR 2x1W lighting - Stainless steel metal filters - Heating elements on the glass veil and water collection tray
To activate the K-Link function it is necessary to combine a Mythos K-Link induction hob
Secure and verified payments
Paypal, credit card, bank transfer
Guaranteed Products
Buy new products, with original packaging and covered by warranty.
Our experts
We offer you maximum availability by phone and by email.
After-sales assistance
We are always at your disposal, even after the purchase.
Drip-Free Hoods - Stop condensation!
Franke is proud to present its innovative range of Drip Free built-in hoods, all designed not only to remove odors efficiently, but also to prevent the formation of condensation and drops of water that could fall on the hob or even on food.
The secret of our magic p>
Drip Free technology combines a larger suction surface with excellent air flow and features a special inclined filter to divert condensation drops into a collection tray which can then be easily removed and emptied. The glass visor of the hood also extends outwards so that the edges of the cabinets are protected from damage caused by humidity.
Mythos
Mythos is the range where innovation meets refinement. Powerful performance and cutting-edge features make this model a perfect blend of style and functionality. It is in fact equipped with K-LINK technology, an elegant LED bar and special heating elements integrated on the front visor for an optimal result against drips.
PRODUCT INFORMATION< /p>
Product information
Aesthetics
EAN/UPC 7612986349979
Hood type Recessed
Finish Stainless steel / black glass
Features
Number of lamps 1
Lighting type Flush Led Bar L600
Remote control No
Water resistant No
Touch control commands
Speed number See instructions
Speed adjustment 3+i
24h function No
Delay function Yes 30'
Automatic start No
WI-FI No
Filtration type Grid
Filter type Stainless steel
Activated carbon filter No
Performance
Speed 1
Suction capacity (m3h) 280
Max pressure 450
Power 150
Noise level (db ) 49
Speed 2
Suction capacity (m3h) 410
Max pressure 510
Power 200
Noise level (db) 58
Speed 3
Suction capacity (m3h) 580
Max pressure 550
Power 240< /p>
Noise level (db) 65
BOOST speed
Suction capacity (m3h) 710
Max pressure 560
< p>Power 250Sound level (db) 69

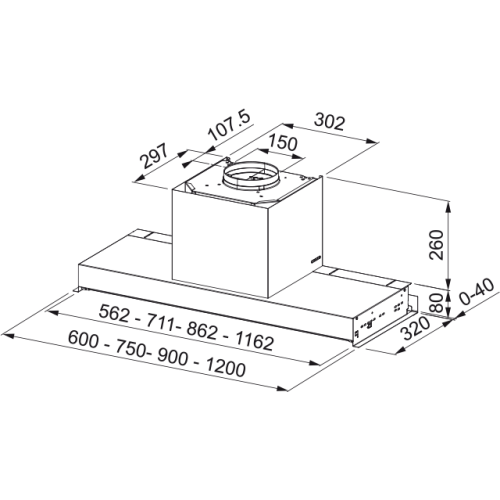

Dimensions
Width in mm 900 mm
Diam. outlet pipe 150
Installation
Built-in installation
Consumption data
Socket type Without plug
Annual energy consumption 55.4
Fluid dynamic class A
Lighting class A
Filter class C
Motor voltage 220-240V 50-60Hz
Motor type SP 800
No. of motors 1
General data< /p>
Franke brand
STYLE DRIP-FREE range
Product specifications
Air quality sensor No< /p>
Energy efficiency class A
