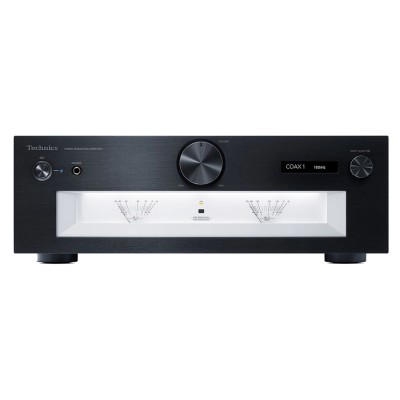

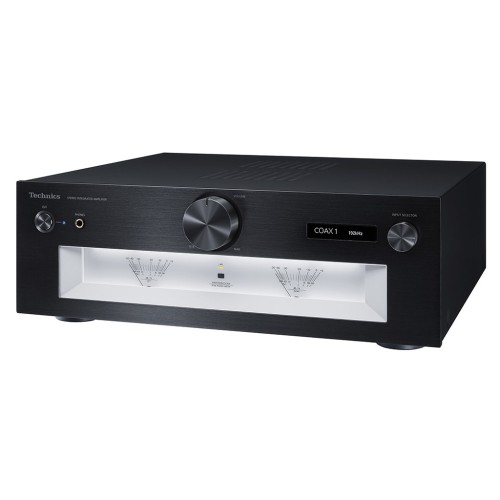

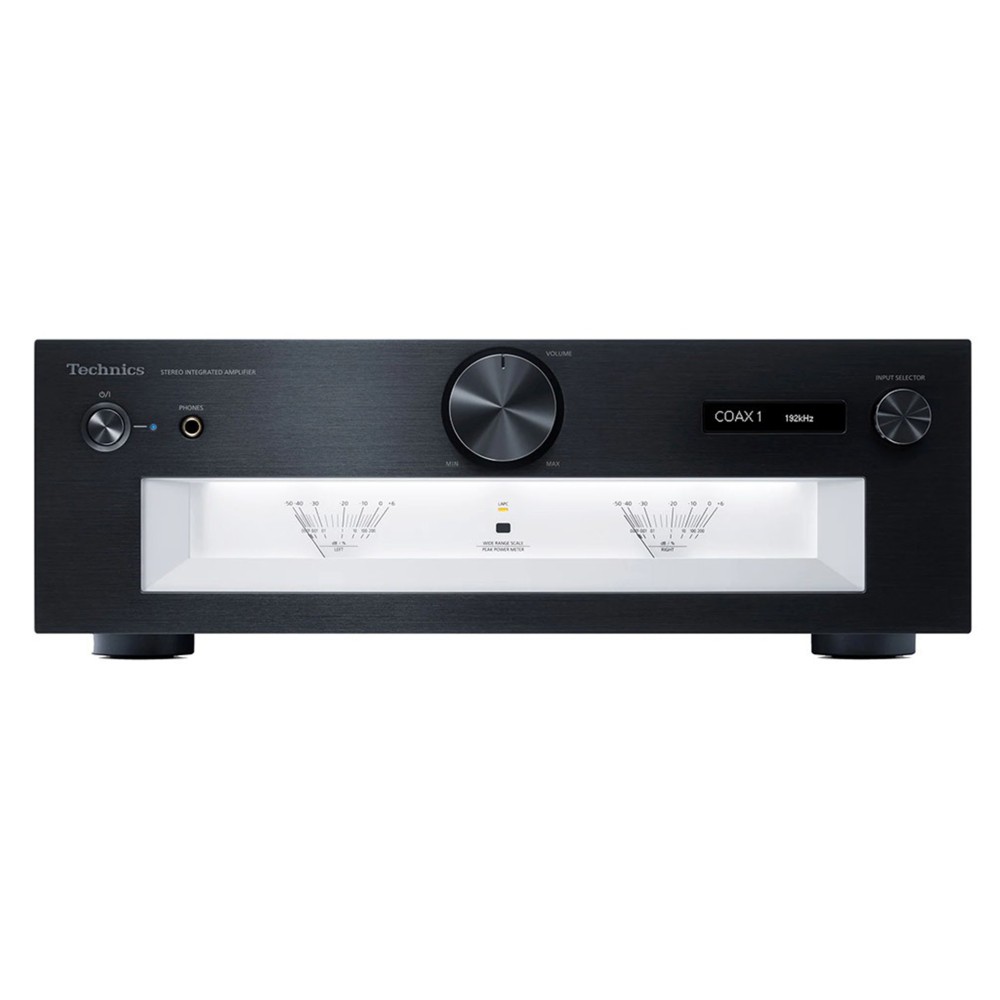

Technics SU-G700M2 Grand Class Stereo Integrated Amplifier - Black

Three-section configuration for clear, distortion-free sound

The SU-G700M2 integrated amplifier is crafted for superior sound quality. Using a unique three-section design with dedicated partitions between different circuit blocks, it reduces interference and distortion. This configuration ensures separation between dedicated input signals and high-power output currents, resulting in consistently clear and rich audio.

Experience true-to-life sound with LAPC (Load Adaptive Phase Calibration)

Each speaker responds differently to different frequencies, but the SU-G700M2's innovative design ensures clear and consistent audio. Unlike conventional amplifiers, which are affected by speaker impedance and lose audio fidelity, this model uses an advanced adaptive tuning algorithm. It automatically adjusts to the unique characteristics of each amplifier, balancing frequency, amplitude, and phase for smoother, more precise sound. The result? A rich, immersive listening experience with detailed, spatial audio that fills the room.

Crystal-clear audio with advanced JENO Engine digital amplification

To reproduce every detail of your music without compromise, the SU-G700M2 uses the cutting-edge JENO Engine for fully digital amplification, inspired by high-end reference systems. Unlike conventional digital amplifiers, this model solves common audio quality problems caused by jitter (timing errors) with a proprietary jitter reduction circuit, ensuring pure sound across the entire frequency range. Furthermore, a specially designed high-precision PWM conversion circuit optimizes every detail, preserving the dynamic range of high-resolution audio for lifelike clarity. Thanks to these technologies, you'll enjoy natural, finely detailed sound that captures even the subtlest nuances of your music.

Powerful, Pure Sound with High-Speed Switching Power Supply Technology

The SU-G700M2's upgraded power supply, inspired by our reference SU-R1000, delivers more powerful amplifier drive and richer sound. With a higher switching frequency of 400 kHz and advanced GaN FET and SiC SBD components, it reduces noise and stabilizes power for clearer audio. The ultra-low noise regulator minimizes interference, ensuring a clean, high-response power supply that maximizes digital amplifier performance. Enjoy fuller, more dynamic sound with exceptional clarity.

Improved analog sound with customizable MC PHONO input

The SU-G700M2 now supports MC PHONO input, providing an ultra-low-noise connection for your turntable thanks to advanced low-noise FET technology. With four levels of gain adjustment, you can easily set the ideal gain for your cartridge, ensuring optimal reproduction of high-quality analog records. Enjoy rich, authentic sound, perfectly matched to your setup.

Immersive headphone experience with Class AA amplification

The SU-G700M2 features a Class AA headphone amplifier, with separate circuits for voltage and current amplification, to deliver pristine audio. Thanks to the use of high-quality operational amplifiers and the precise analog conversion of the JENO Engine, the system is able to drive headphones with precision and power. This configuration minimizes distortion and delivers a wide frequency range, for clear and detailed sound regardless of headphone impedance. Experience music like never before.

High-end components:

Technics-exclusive block capacitor - The amplifier's power supply features a Technics-exclusive block electrolytic capacitor optimized through meticulous tuning, as used on the SU-R1000 model.

Large earth terminal - The large earth terminal includes a thick, large-diameter earth wire.

Brass speaker terminals - The screws used to secure the cables that send audio signals to the speaker terminals are made of non-magnetic brass.

SPECIFICATIONS

- A revolutionary reference stereo integrated amplifier, reflecting the finest and most reliable Japanese electronics and manufacturing traditions, the result of a fresh approach, a concentration of highly advanced technology, featuring design and construction meticulously crafted with superlative quality Audiophile Grade components, unrivaled technical parameters, capable of delivering surprising performances, with impeccable qualities of musicality, purity and naturalness;

- power of 70 Watts per channel into 8 Ohm and 140 Watts per channel into 4 Ohm;

- frequency response 5 Hz - 80 kHz (-3 dB, 8 Ohm) for line and digital signals and 20 Hz - 20 kHz for Phono signals (RIAA deviation +/- 1 dB, 8 Ohm);

- load impedances managed with indifference between 4 and 16 Ohm;

- layout divided into three independent sections, with dedicated and separate power supplies for the line, Phono and digital circuits;

- completely digital signal path from the input stage to the speaker output terminals;

- discrete input stage and exclusive circuit with JENO (Jitter Elimination and Noise Shaping Optimization) processor, which implements a high-precision pulse-width modulation (PWM) conversion using a battery-powered clock generator in the noise-shaping system, capable of eliminating jitter across the entire frequency spectrum;

- output stage with digital/analog conversion using discrete components, without integrated DAC chips and with MOSFET transistors;

- proprietary active Load Adaptive Phase Calibration (LAPC) technology, capable of detecting the pulse returned by the speaker load and applying digital signal correction to perfect the amplifier's response system, whose power is ideally delivered with dynamic, detailed, ultra-low distortion and free from phase anomalies transmission, with impeccable driving capabilities when dealing with any speaker, regardless of impedance variations and across the entire frequency spectrum;

- extremely accurate preamplification stage Analogue MM/MC phono stage, in first stage differential parallel configuration with low noise FET, equipped with four levels of gain adjustment;

- high quality Class AA headphone amplifier articulated by separate voltage and current circuits, capable of driving headphones with complicated impedances and equipped with a 6.3 mm jack socket on the front panel;

- Advanced Speed Silent Power Supply power supply stage, based on a switching system with a fixed frequency of 400 kHz, equipped with ultra-low noise voltage regulators, gallium nitride FET field-effect transistors and silicon carbide (SiC) diodes, with stable, ultra-fast and ultra-clean delivery properties;

- imposing and extremely rigid steel chassis, highly damping and effective in suppressing any vibration, articulated on two levels and in individual blocks separated by 1.2 mm and 2 mm steel shielding and structural reinforcement plates;

- 1.6 mm thick treated aluminum side and top panels, 7 mm thick brushed aluminum front panel;

- large and elegant VU-Meter panel with double needle meter;

- aluminum knobs machined from solid;

- playback of digital sources with conversion of native DSD formats to ASIO and DoP up to 11.2 MHz and PCM up to 32 bit / 384 kHz (via USB);

- dedicated Main In/Line 2 input, configurable to exclude the pre-amplification stage and convey the signal directly to the power amplifier, dedicated to the connection of an external pre-amplifier or Audio/Video processor;

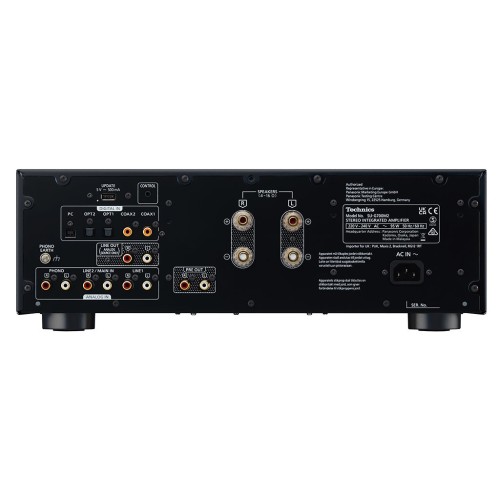

- L/R stereo analog inputs: 3x unbalanced RCA (1x shared Main In/Line 2), 1x unbalanced RCA Phono MM/MC;

- digital inputs: 1x asynchronous USB Type-B (DSD512, PCM 32/384), 2x electric coaxial S/PDIF RCA (24/192), 2x optical Toslink (24/96);

- unbalanced L/R stereo analog outputs: 1x RCA Pre-Out, 1x RCA Line Out (analog sources only);

- high-quality gold-plated machined brass connectors;

- remote control included;

- Black finish;

- dimensions (W x H x D) 430 x 148 x 428 mm;

- weight 12.6 kg.
