Smeg si5743d1 induction hob 75 cm glass ceramic black

SPECIFICATIONS

Aesthetics

Colour: Black

Finish: Glass

Aesthetics: Universal

Material: Glass

Glass type: Ceramic

Type of control adjustment: Compact Lite

Position of controls: Front

Slider: Yes

Control LED colour: Red

Glass edge: Straight

Screen printing colour: Grey

Programs / Functions

Total number of cooking zones: 4

Number of induction cooking zones: 4

Time programming options: Automatic switch-off

Number of cooking zones with booster: 4

Main button on/off: Yes

Power levels: 9

Type

Family: Hob

Size: 70/75 cm

Type: Induction

Built-in: Semi-flush with the possibility of flush-mounting

Power supply: Electric

EAN code: 8017709338077

Options

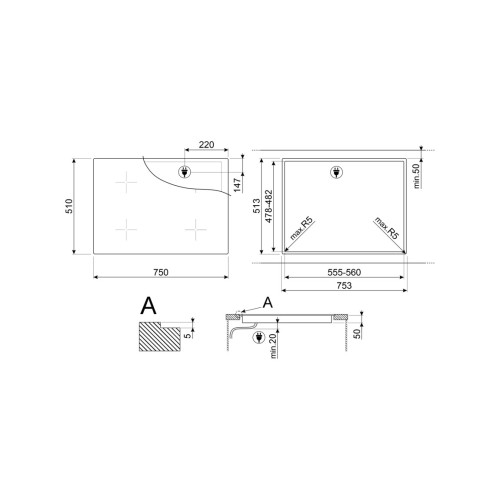

Built-in hole: 478-482x555-560 mm

Double Booster: Yes

End of cooking timer: 4

Minutes: 4

End of cooking acoustic alarm: Yes

Remaining time indicator: Yes

Time limiter option Power: Yes Advance

Power Limiter Option in W: 2400, 2800, 3500, 4000, 4500, 5000, 5500, 6000, 7400 W

Button Lock / Child Safety Option: Yes

Automatic heat maintenance function: Yes

Quick level selection: Yes

Cooking zones

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Rear right

4th zone position: Front right

1st zone type: Induction - Single

2nd zone type: Induction - Single

Type 3rd zone: Induction - Single

4th zone type: Induction - Single

1st zone dimensions: Ø 21.0 cm

2nd zone dimensions: Ø 16.0 cm

3rd zone dimensions: Ø 21.0 cm

4th zone dimensions: Ø 16.0 cm

1st zone power: 2.30 kW

2nd zone power: 1.85 kW

3rd zone power: 2.30 kW

4th zone power: 1.85 kW

1st zone booster power: 3.00 kW

2nd zone booster power: 2.10 kW

Booster power 3rd zone: 3.00 kW

Booster power 4th zone: 2.10 kW

Technical Features

Automatic adaptation to the diameter of the pan: Yes

Automatic detection of pan position and control: Yes

Detection of the presence of the pan: Yes, min 7 cm

Minimum diameter indicator for use: Yes

Automatic stop in case of overheating: Yes

Residual heat indicator: Yes

Protection against accidental ignition: Yes

Performance / Energy Label

Energy consumption of the hob: 187.5 Wh/Kg

Energy consumption zone 1: 180 Wh/Kg

Consumption energy consumption zone 2: 195 Wh/Kg

Energy consumption zone 3: 180 Wh/Kg

Energy consumption zone 4: 195 Wh/Kg

Electrical Connection

Rated electrical connection data: 7400 W

Current: 33 A

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60 Hz

Other connection modes: Yes, Bi- and Three-phase

Type of electrical cable installed: Yes, Single-phase

Power cable length: 120 cm

Logistics Information

Product Dimensions (mm): 56x750x515

Product Depth: 515 mm

Product Width: 750 mm

Product Height: 56 mm

Net Weight (kg): 10,400 kg

Gross Weight (kg): 11,700 kg

Packed Product Width: 835 mm

Packed Product Depth: 575 mm

Packed Product Height: 130 mm

Packed Product Dimensions (mm): 130X835X575
