Gaggenau rvf477190 built-in freezer 75 cm

Vario Expressive: the modular system for high-end kitchens

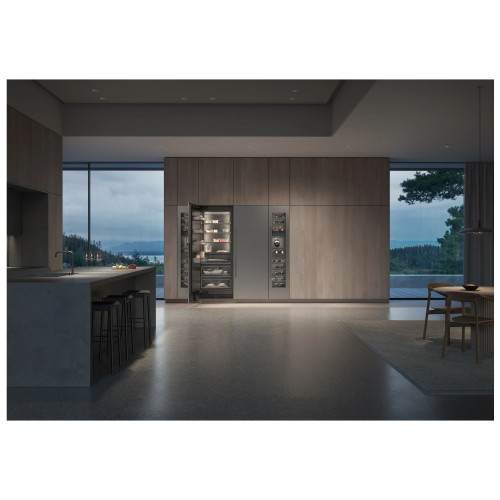

The Vario Expressive series by Gaggenau was created to create customized refrigerator columns in professional and designer kitchens. The RVF477190 can be combined with other modules from the same series to create customized configurations: refrigerator, freezer and wine cellar side by side or stacked with uniform fronts. The height of 212.3 cm allows you to fill full-wall columns with a high-impact aesthetic effect.

No Frost and uniform temperature throughout the cavity
The No Frost system guarantees total absence of frost in both the fresh and frozen compartments. The cold air is distributed evenly throughout the cavity, eliminating temperature peaks that compromise the quality of food. Your food is preserved longer and maintains its organoleptic properties intact.

Width {width} cm: professional capacity
At 75.6 cm wide, the RVF477190 offers generous internal capacity, suitable for large families or those who like to do a lot of shopping. The adjustable shelves allow you to adapt the internal spaces to containers of any size. The full-height LED lighting makes every food immediately visible.

Discreet design and flush-fitting installation
The front is designed to receive the kitchen's mobile panel, disappearing completely into the furnishing composition. The flat hinges ensure a continuous effect between the doors. The result is a kitchen where the appliances are not visible, but can be felt in the quality of daily work.

Reversible door: total adaptability to the layout
The door hinge is reversible: you can mount it on the right or left depending on the position of the RVF477190 in the kitchen. This guarantees comfortable opening in any floor plan configuration, without having to sacrifice functionality due to architectural constraints.

FEATURES

Dark brushed stainless steel interior with solid anthracite-colored aluminum elements.

Warm white, anti-glare LED light.

Doors equipped with Open Assist with two options:

1. Push-to-open function for integration in handle-less fronts

2. Pull-to-open function for easy opening of the door with handle.

The drawers in the RVC and RVF models are positioned at the same height. When installed side by side, the safety glass shelves and door shelves can be aligned at the same height.

Door interior in dark brushed stainless steel.

Flexible and discreet rail system for shelves and door shelves.

Total capacity 516 litres.

Door opening assistant.

Damped door closing.

Automatic light and display response with drawer interactions.

Automatic brightness adjustment based on ambient light.

Hidden touch display.

Dynamic cold air distribution.

Automatic defrosting with evaporation of residual water.

Star-K certified sleep mode.

When sleep mode is active, the appliance can only be opened using the handle.

Door open alarm and malfunction reporting.

Remote control and monitoring.

Software updates.

NoFrost technology with rapid freezing to -30°C.

Freezer compartment ****

Adjustable temperatures from -16°C to -24°C.

Freezer burn protection.

Oxidation protection.

Freezing capacity 25 kg / 24 h.

Autonomy in the event of a fault 19 h.

Warm white, anti-glare LED light (3000 K).

3 safety glass shelves with aluminum frames, individually adjustable in height.

Flexible positioning of the storage compartments thanks to the hidden rail system.

4 height-adjustable storage compartments.

3 fully removable drawers with soft-closing system.

Ice maker integrated into a drawer to optimize available space.

With direct connection to the water mains (filling).

Can be deactivated.

Ice production approximately 2.4 kg / 24 h.

Removable ice cube container with 3 kg capacity.

Integrated and easily removable ice scoop.

Particle filter for water inlet, integrated in the ventilation grille area.

Filter saturation indicator on the touch display.

Energy efficiency class D on a scale from A to G.

Energy consumption 277 kWh/year.

Noise level: 38 dB (A) re 1 pW.

Flush hinge.

Left hinge, reversible.

Door opening angle 115°, can be set at 90°.

Max. weight door panels 39 kg.

The water connection valve must be positioned near the appliance and always accessible.

If the water pressure exceeds 0.8 MPa (8 bar), connect a bleed valve between the tap and the connection hose.

Total absorption 0.300 kW.

Connection cable 3.0 m, with Schuko plug.

Water inlet connection

Connection cable length 1.8 m with 3/4'' ring nut.

Water pressure from 2 bar to 8 bar.
