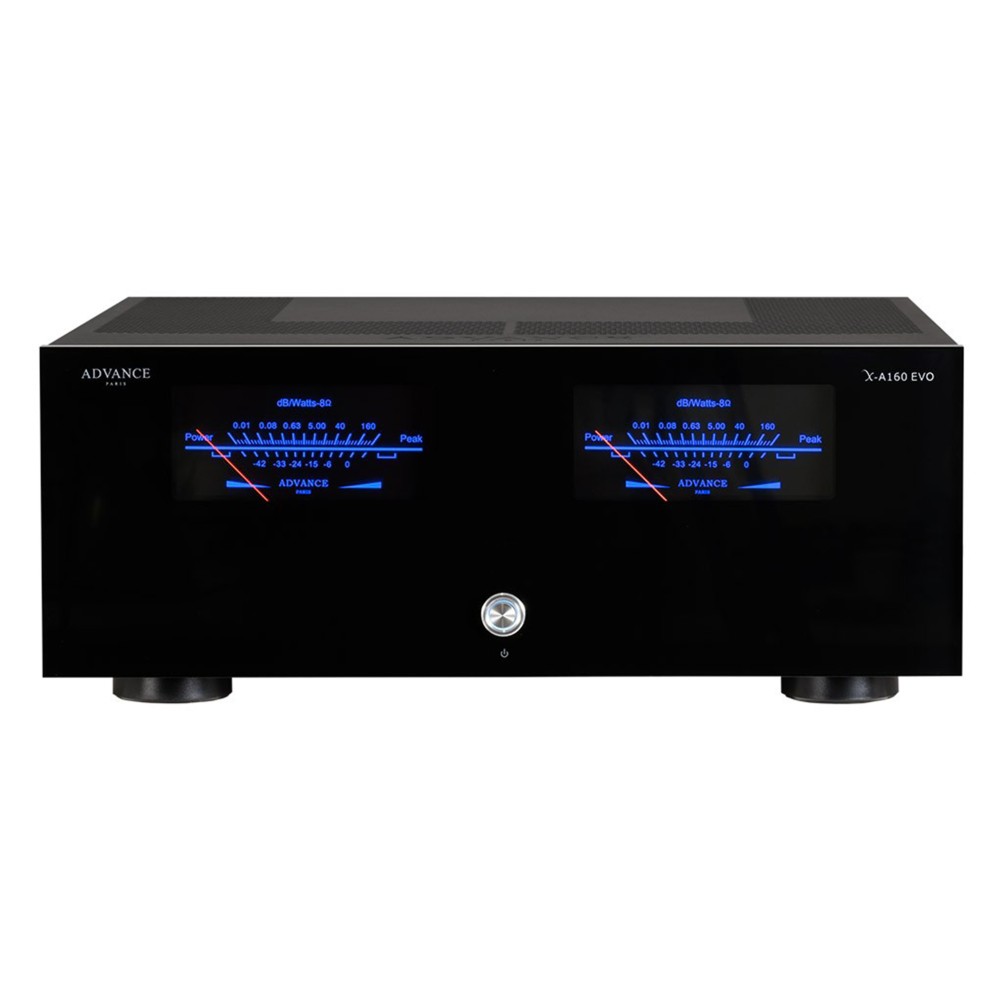

Advance Paris X-A160 Evo power amplifier - black

New circuit diagrams, power transistors identical to those of the MAA 1000, new power supply, more power, more music, more modern presentation: this is the X-A160EVO.

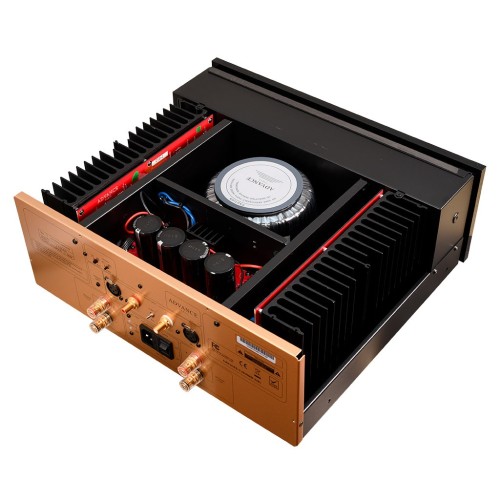

The X-A160EVO amplifier features an ultra-rigid and compartmentalized chassis for effective shielding, eliminating any risk of radiation between the various circuits of the device.

The use of "audiophile" components guarantees the reproduction of your favorite music with finesse and delicacy.

The high-power power supply of the MAA 1000, combined with ultra-high-current power transistors (NJW0281G - NJW0302G), offers the most demanding dynamics.

The X-A160EVO delivers 160 W per channel in class AB*, and a switch on the rear panel allows the first Watts to be delivered in class A*. Above this power level, it automatically switches to class AB**.

HIGHLIGHT

High power and dynamic control: 2 x 160 W into 8 ohms and 2 x 250 W into 4 ohms, ideal for any type of speaker.

Dual mono circuitry: Impeccable channel separation for a more defined and realistic sound.

Class AB output stages: Designed to maximize the balance between efficiency and sound quality.

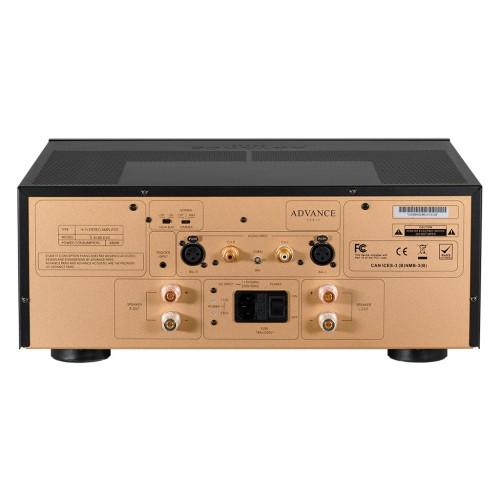

Switchable RCA/XLR input: Compatible with both unbalanced and balanced sources.

Oversized toroidal transformer: Stable power supply and current reserve to deal with every musical dynamic.

Elegant design with analog VU meters: Refined aesthetics and functional for monitoring output power.

SPECIFICATIONS

Output power 8Ω 2 x 160 W RMS

Output power 4Ω 2 x 240 W RMS

Bandwidth 10 Hz - 80 kHz

Distortion < 0.07%

Signal-to-noise ratio > 120 dB

Channel separation > 80 dB

Unbalanced input impedance 20 kΩ

Balanced input impedance 38 kΩ

Mains voltage 115-230V

Standby power consumption < 0.5W

Maximum power consumption 500W

Transformer power 700W

Transformer Toroidal

Height 160 mm

Width 440 mm

Depth 430 mm

Net weight 19 kg

Product type Power block

VU-Meter YES
