Yba Heritage A200 Integrated Amplifier - Silver

Heritage A200 Integrated Amplifier

Following the style of the popular A100, but with more power and a host of additional features, this new model will undoubtedly appeal to a wider audience.

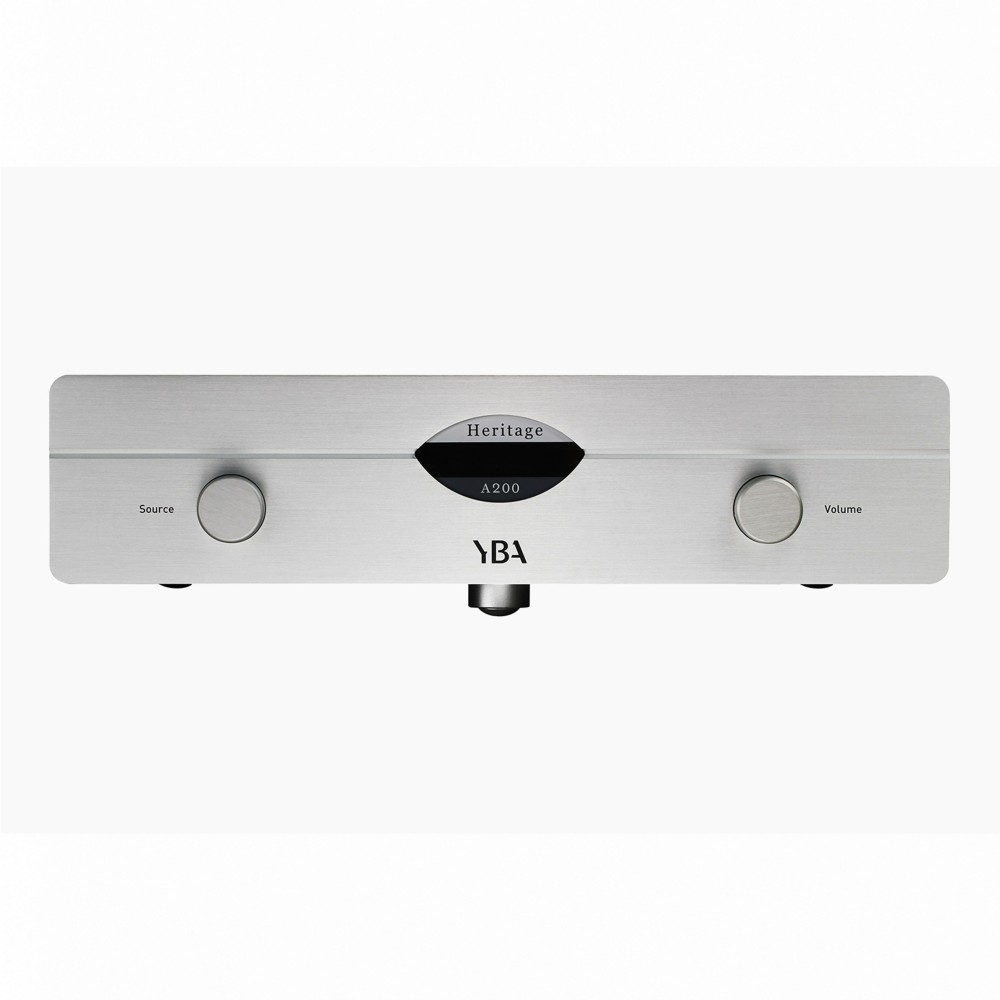

Like all YBA products, the chassis rests on three feet, two of which are damped, while the third, made of aluminum, terminates in a metal ball that acts as a vibration dampening point. The on/off switch is located on the bottom of the chassis, towards the front left. The front panel features two buttons, one for source selection and one for volume, and in the center, between them, is an oval display with yellow lettering that indicates the connected source and the volume level. An elegant remote control allows you to control the functions from a distance.

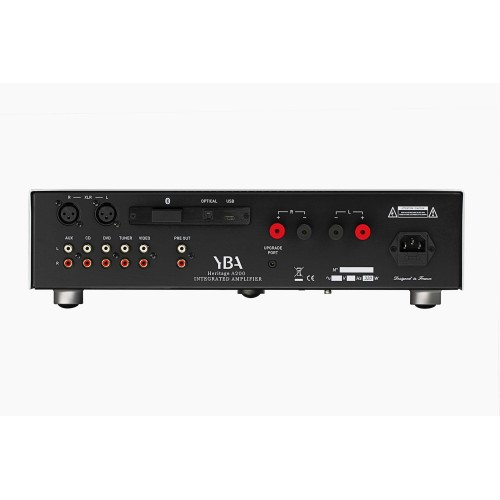

The A200 has 5 sets of RCA inputs, 1 balanced, 1 optical, 1 USB and Bluetooth. It has a set of speaker outputs and a preamp output.

Only the USB Type-C input (PCM 384K/32-bit DSD 256) supports DSD. A high-quality USB cable is included for easy connection via USB Type-C.

The BT V4.1 input (CSR8675) supports APTX and APTX-HD.

The A200's D/A converter is the AK4490EQ.

The video input has a bypass function (which bypasses the preamp section). There is also a preamp output, useful if you want to use an external power amplifier, a pair of powered speakers, or connect a subwoofer. It features a pair of speaker outputs.

The power to the A200's digital section can be turned off when using an analog source to enhance the listening experience.

SPECIFICATIONS

Product Type Integrated Amplifier

Audio Outputs

1 pair of speaker outputs,

1 pre-amp output (RCA)

Output Power

110 W into 8 Ω

165 W into 4 Ω

SNR

>95 dB

Frequency response

20 Hz – 20 kHz (–0.5 dB)

THD+N

<0.04% (20 Hz – 20 kHz)

D/A CONVERTER

AK4490EQ

Input

USB INPUT

PCM 384K/32bit

DSD 256

BT INPUT

BT V4.1 (CSR8675)

Power Supply

Linear Power Supply with 330 VA High Performance Transformer

Color / Finish

Natural Aluminum

Dimensions (Width x Depth x Height)

430 mm x 400 mm x 118 mm

Weight

9.2 kg
