Musical Fidelity M6xi Integrated Amplifier - Black

From Musical Fidelity M6si to Musical Fidelity M6xi

Musical Fidelity is proud to introduce the M6xi, the latest high-end integrated amplifier in our acclaimed M6 line. Building on the extraordinary success of its predecessor, the Musical Fidelity M6si, the Musical Fidelity M6xi continues the same proven formula: massive power, uncompromising engineering, and high-end sound. The new model also features modern connectivity and a refined internal circuit layout. The Musical Fidelity M6xi now features HDMI eARC, allowing for easy integration with TVs and home theater systems while delivering high-end hi-fi stereo performance. Additionally, new coaxial and optical digital inputs expand connectivity for a wide range of digital sources, complementing the existing high-resolution USB input. A completely new feature is the high-quality, isolated USB power output. Designed as a separate, linear, ripple-free power supply, it allows you to power modern USB streamers directly from the amplifier. The result is simple system integration and a significant performance improvement for your favorite streaming source. For custom installations and advanced system control, the Musical Fidelity M6xi also includes RS232.

Discrete Integrated Amplifier – The Son of the Titan

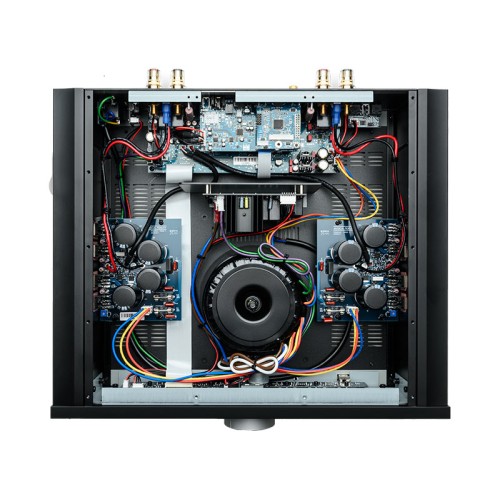

The Musical Fidelity M6xi is designed as two independent mono power amplifiers sharing a separate preamplifier, united only by a common chassis. It is similar in every way to our legendary 1 kW TITAN power amplifier. Inside, numerous innovations further improve its performance. The main transformer and power control board are enclosed in a metal enclosure, dramatically reducing electromagnetic interference within the chassis. This improvement benefits every circuit in the amplifier, but especially the newly refined phono stage. The updated MM/MC phono section features improved shielding and circuit optimization, resulting in lower noise, lower distortion, and greater sonic transparency than its predecessor. The powerful amplifier stage has also been improved. Thanks to more carefully selected components and increased output capacity, the Musical Fidelity M6xi delivers even more authority and control over the speakers, while retaining the musical naturalness that characterizes Musical Fidelity sound. The result is an amplifier that combines the classic design of Musical Fidelity high-end amplifiers with modern versatility. Musical Fidelity M6xi delivers true high-end performance in the glorious Musical Fidelity tradition, making it more accessible than anything else in its class.

Technical Insights

The new Musical Fidelity M6xi represents the latest evolution in high-end integrated amplifiers, combining massive power reserves with an improved design derived directly from our flagship models. Built for uncompromising sonic performance, the Musical Fidelity M6xi employs sophisticated circuitry and a meticulously designed board layout, alongside modern connectivity and premium aesthetics.

Power Amplifiers

The Musical Fidelity M6xi is designed as two independent mono power amplifiers sharing a separate preamplifier, united only by a common chassis. It is similar in every way to our legendary TITAN 1kW power amplifier. It employs a low-distortion Darlington output stage arranged in the classic Musical Fidelity configuration. This design eliminates crossover artifacts while maintaining extremely low residual distortion, preserving musical detail and tonal accuracy across the entire frequency range. Great attention has been paid to the internal circuit board layout. The carefully optimized circuit board design minimizes circuit imbalances that would otherwise require corrective feedback, allowing the amplifier to operate more naturally and transparently. During operation, all power supplies remain purely analog, reducing high-frequency noise and minimizing electromagnetic compatibility (EMC) interference. The result is a cleaner signal path and greater overall sonic purity. Power output is another distinguishing feature of the M6xi. With 230 watts per channel into 8 ohms and 390 watts into 4 ohms, the amplifier offers immense current capacity and extraordinary dynamics. These exceptional power reserves ensure accurate peak power delivery and a wide dynamic range, allowing the M6xi to drive demanding loudspeakers with absolute confidence, while maintaining maximum stability even in the presence of impedance drops.

Preamplifier

At the heart of the M6xi is an all-analog preamp stage, meticulously designed to ensure absolute signal integrity. The preamplifier features a low-noise circuit that maintains exceptional signal purity across the entire dynamic range. From moderate listening levels to full power, the Musical Fidelity M5xi preserves the finest detail with remarkably low total harmonic distortion. The result is extremely natural definition, stable imaging, and uncompromising musical realism. Volume control is handled by a high-quality Burr-Brown stepped attenuator, offering precision unmatched by traditional potentiometer-based designs. The benefit is immediately audible: perfectly balanced stereo imaging, stable soundstage positioning, and consistent tonal accuracy at all listening levels. The Musical Fidelity M6xi embodies Musical Fidelity's philosophy: combining uncompromising engineering with everyday usability, and ensuring a high-end design accessible to all. The result is an integrated amplifier with endless power, exceptional control, and remarkable transparency. Designed for music lovers who will settle for nothing less than true high-end performance.

Phono Stage

Vinyl playback receives equal attention thanks to the new MM and MC phono stage. Compared to the stage in the M6si, this is a completely new design. The improved circuit design and layout, combined with increased insulation and shielding, significantly reduce noise and distortion. The result is a phono input capable of revealing all the warmth, depth, and detail of quality vinyl recordings. Vinyl enthusiasts will greatly appreciate the addition of an MC stage, as the old M5si only featured a MM phono stage. The position of the transformer and power supply circuit board have been carefully optimized and encapsulated in a metal casing to reduce electromagnetic interference to all parts of the amplifier. The phono stage circuitry benefits greatly, as it operates with high amplification factors of up to 1,000. It is absolutely crucial to shield the high-gain amplifier stages from any external interference.

Separate Digital Boards

Digital and analog hardware must be carefully separated from each other. Even the smallest amount of RF interference is known to cause problems for analog amplifier stages. Therefore, the digital and ARC circuit boards are physically separated on their own PCBs and have a dedicated linear power supply. Coaxial, optical, and USB-C digital inputs accept high-resolution sampling rates up to 24-bit 192kHz, while the HDMI eARC input lets you bring your home theater to life and power it up with the M6xi's powerful analog amplifier stages.

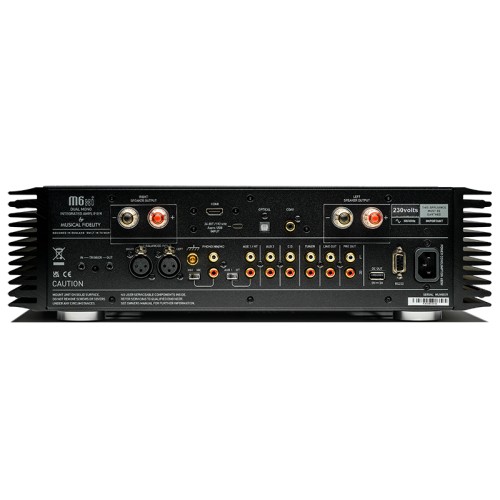

Inputs and Connectivity

The Musical Fidelity M6xi features 4 RCA line inputs and a balanced XLR input. The integrated MM and MC phono stage has undergone significant upgrades over the M6si. For maximum flexibility, the M6xi also includes a home theater bypass input. The HT input completely bypasses the preamp stage, allowing seamless integration with home theater processors and allowing the M6xi to function as a high-performance stereo power amplifier for the left and right speakers within a multi-channel system. Digital connectivity has also been expanded to meet the needs of modern audio systems. New optical, coaxial, and HDMI eARC inputs offer versatile digital connectivity, while a new USB-C input supports high-resolution audio up to 24-bit/192kHz. For custom setup and system control, the Musical Fidelity M6xi now features an RS232 interface. Additionally, a new 5V/2A USB-A power output allows the amplifier to conveniently power modern external streamers, simplifying system setup and reducing the need for additional power supplies. This output has its own winding in the main transformer and a linear power supply, effectively doubling as an upgrade to your streamer's power supply. The USB input features a carefully optimized digital circuit layout, specifically designed to minimize high-frequency interference within the M5xi. This meticulous design protects the delicate analog signal path, ensuring the digital section never compromises the amplifier's sonic purity. For system expansion, the Musical Fidelity M5xi includes dedicated preamp output connections. The variable preamp output allows for seamless integration with external power amplifiers for bi-amped setups. Active subwoofers can also be connected, for maximum flexibility in building high-performance systems. The fixed output is ideal for connecting your favorite headphone amplifier.

Exceptional build quality

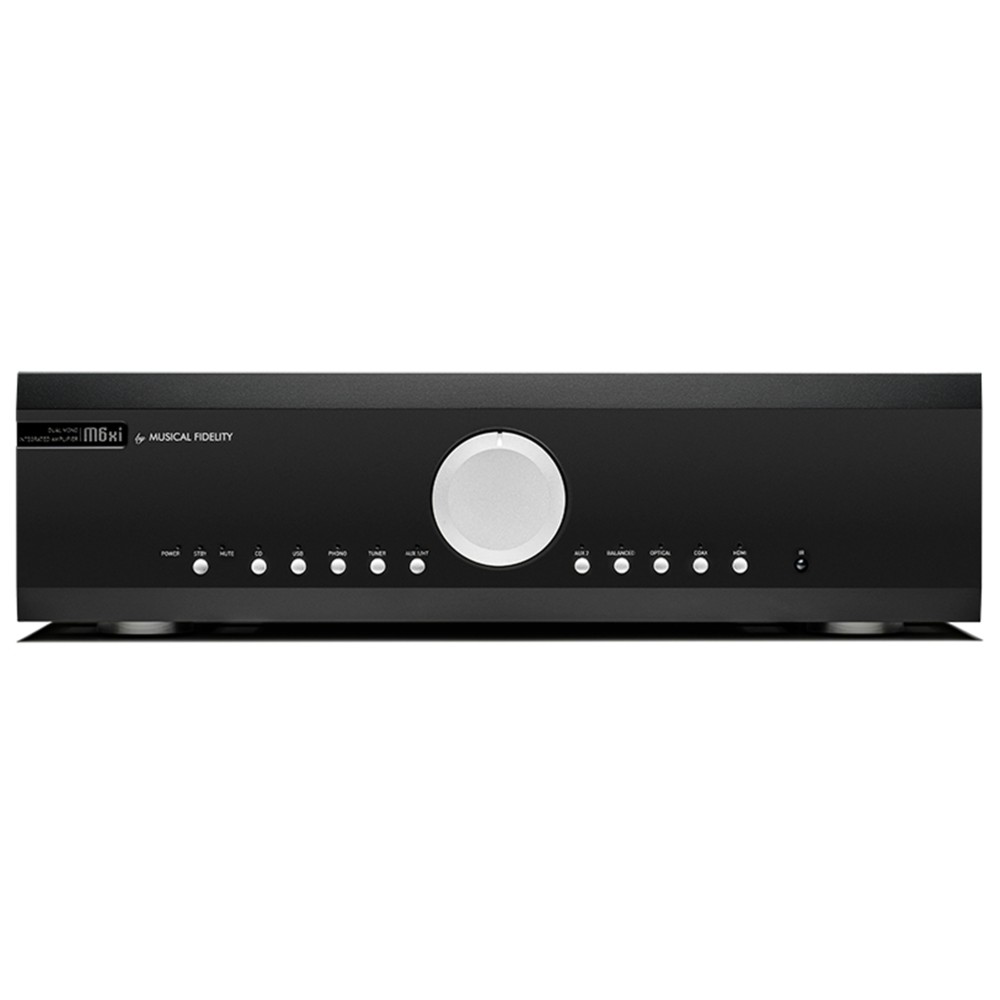

The M6xi's front panel is machined from a solid extruded aluminum profile. The chassis's build quality ensures excellent resistance to the effects of environmental vibrations. The same applies to electromagnetic immunity, with the entire metal chassis acting as a Faraday cage. It protects the internal components from external electromagnetic fields and, conversely, the rest of your Hi-Fi system from the electromagnetic fields generated by the M6xi.

New remote control

The remote control for the new Musical Fidelity M6xi has been completely redesigned. The new design features an elegant, lightweight structure that fits naturally and comfortably in the hand, making everyday use more practical. Carefully color-coded with the distinctive Musical Fidelity branding, the remote control is designed for seamless universal compatibility with all Musical Fidelity M-Line components, including amplifiers, CD players, and DACs. A single, beautifully designed controller allows effortless command of your entire system.

Technical Specifications

Musical Fidelity M6xi

Power: 2x230W into 8 ohms, 2x390W into 4 ohms (1% THD, 1 kHz)

Maximum current peak to peak 45A

Damping factor 49 (8 Ohms)

Output transistors: 2 pairs per channel

THD+N < 0.007% typical, 20 Hz to 20 kHz

Signal-to-noise ratio > 107 dB 'A' weighted

Input impedance 40 kOhm

Frequency response +0, –0.1 dB, 10 Hz to 20 kHz

4 line-level RCA inputs

1 balanced XLR input

1 HDMI eArc input

1 coaxial input

1 optical input

1 MM/MC phono input with Sensitivity (nominal): 3 mV MM / 0.4 mV MC (for 300 mV nominal)

MM/MC gain: 40 dB / 60 dB

Signal-to-noise ratio: >87 dB 'A' weighted

Input capacitance: 220 pF

Impedance Input: 50 kΩ MM / 1 kΩ MC

Frequency response: RIAA/IEC ±0.4 dB, 20 Hz - 20 kHz

1 USB Type 'C' connector - up to 24-bit/192 kHz

Line outputs: 1 pair of fixed RCA connectors and 1 pair of variable RCA connectors

Speaker output: 2 pairs of 4 mm banana plugs

1 USB A power output 5V/2A

1 RS232 connector

Trigger input and output

Power supply 115/230 V AC 50/60 Hz (factory preset)

Power consumption 680 Watts max

Dimensions: (WxHxD) 440x125x400mm

Weight: 18.5 kg
