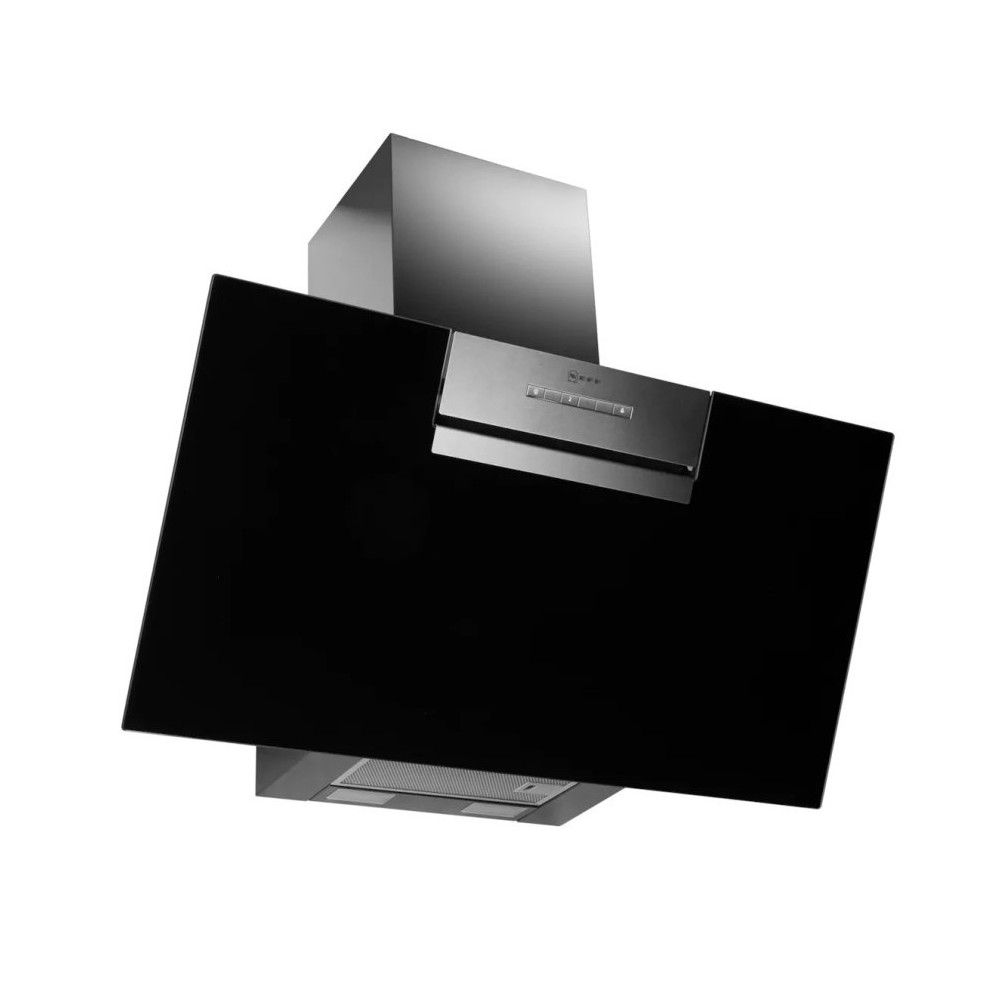

Neff d85iee1s0 wall hood 80 cm black glass

Hood with a frontally inclined design and high suction power

Progressive operation: increases suction when maximum power is needed!< /p>

Energy-saving LED lighting for perfect lighting when cooking

Main Features< /p>

Wall-mounted extractor hood, Black Glass, 80 cm

Wall-mounted extractor hood 80 cm

Width 80 cm

Main panel in glass transparent black

Air expulsion or recirculation operation

For recirculation operation it is necessary to use the CleanAir recirculation kit or the normal recirculation kit

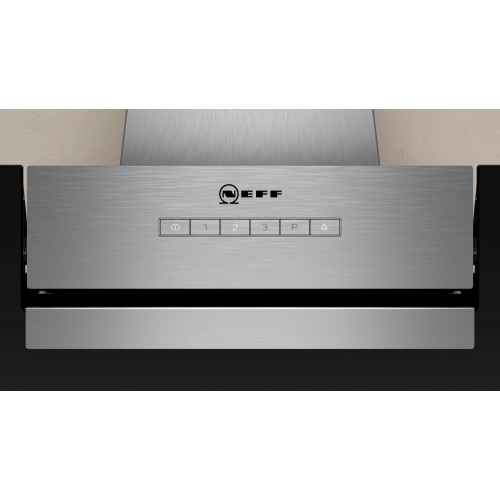

touchControl for power and lighting control

Electronic control

Electronic control with softTouch buttons

Control with buttons, illuminated buttons

3 power levels, 1 intensive stage adjustable via buttons

3 power levels, 1 intensive stage

Intensive level with automatic reset, 6 min

Dual flux motor for high performance

Capacitor motor

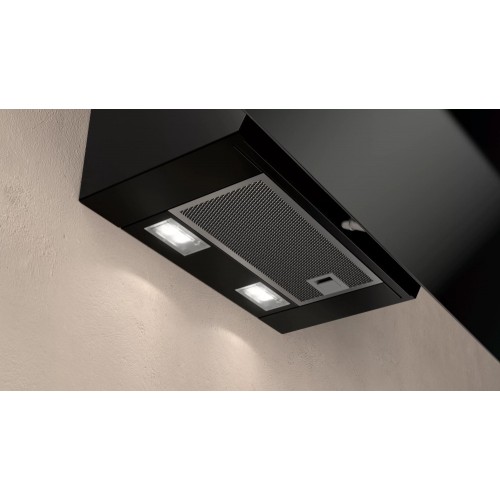

2 1.5W LEDs

Lamp intensity light: 114 lux

Color temperature: 3500 k

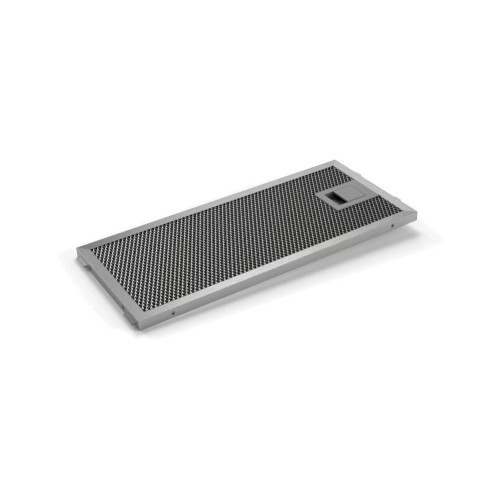

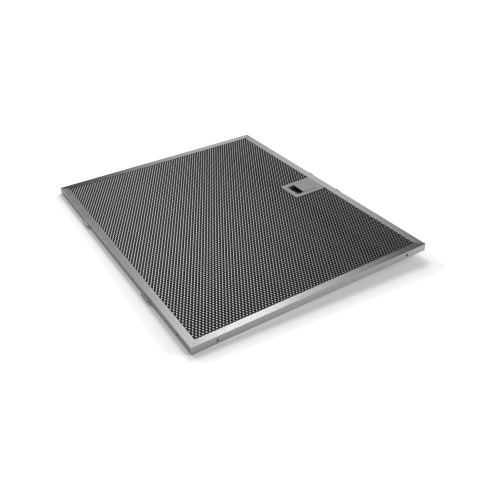

Dishwasher-safe metal grease filters

2 extraction areas: front and bottom

White glass filter cover

Air expulsion capacity: 399 m³/h with normal operation, max. 669 m³/h with intensive stage according to EN 61591

Air expulsion capacity: with normal operation 399 m³/h, intensive 669 m³/h according to EN 61591

Noise level according to standard EN 60704-3 and EN 60704-2-13 air expulsion:

Max. normal position: 60 dB(A) re 1 pW.

Intensive: 69 dB(A) re 1 pW.

Tube diameter 150 mm (Ø 120 mm closed)

Tube diameter 150 mm (Ø 120 mm closed)

Max. extraction capacity: 669 m3/h

With the Clean Air Plus recirculation kit (available as an accessory) your appliances achieve:

Extraction speed in recirculation mode:

Max. normal use: 349 m³ / h

Intensive: 474 m³ / h

Noise level in recirculation mode:

Max. normal use: 69 dB (A) re 1 pW

Intensive: 76 dB (A) re 1 pW

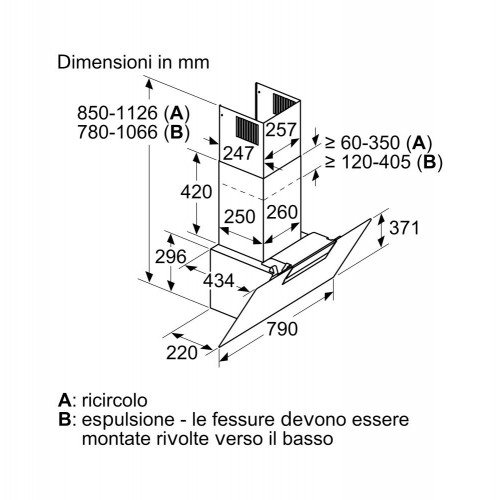

Expulsion mounting dimensions (HxWxD): 780-1066 x 800 x 434 mm

Recirculating assembly dimensions (HxWxD): 850-1126 x 800 x 434 mm

Recirculating hood dimensions with CleanAir module (HxLxD): 1016-1306 x 800 x 434 mm

Dimensions of recirculation hood with CleanAir module (HxLxD): 1016-1306 x 800 x 434 mm

Dimensions of recirculation operation with CleanAir module (HxWxD):

1016-1306 x 800 x 434 mm - mounting with an internal chimney

Electrical absorption: 255 W

Electrical connection cable 1.3 m

Technical data

General< /strong>

Width 80 cm

Color black

Type of installation Wall mounting

Type of operation Expulsion or recirculation

Total motor power 255 Watt

Type of controls and indicators buttons, Illuminated buttons

Maximum air expulsion power 399 m³/h

Maximum air expulsion power with intensive stage 669 m³/h

Sound power at max. speed. (2010/30/CE) 60dB

Increase in sound power (2010/30/CE) 69 dB

Maximum air recirculation power 349 m³/h

Maximum air recirculation power with intensive stage 474 m³/h

Sound power at max. speed (recirculation) 69 dB

Sound enhancement (recirculation) span>76dB

Fat filter material Washable aluminium

Energy efficiency class B

Total annual energy consumption 59.4 kWh/year

Dimensions

Product height 780-1066/ 850-1126 mm

Product width 800 mm

Product depth 434 mm

Chimney height 484-770/554-830 mm

Min. distance from the electric stove 450 mm

Min. distance from the gas stove 650 mm

Diameter of the air outlet 120 / 150 mm

Non-return flow deflector

Length of electrical power cable 130 cm

Net weight 14,862 kg

Appliance height exhaust air max 1,066 mm

Height of appliance exhaust air min < /span>780 mm

Height of recirculation appliance max 1,126 mm

Height of recirculation appliance min 850 mm

Hood comfort

Position of the Booster Function< span style="white-space:pre;">

Lighting strong>

Type of bulbs used LED

Number of lights 2

Total luminance (lux) 114 lux

Color temperature Neutral (3,500 K)

Average system illumination of lighting on the cooking surface E_middle(2009/125/CE) 114 lux
