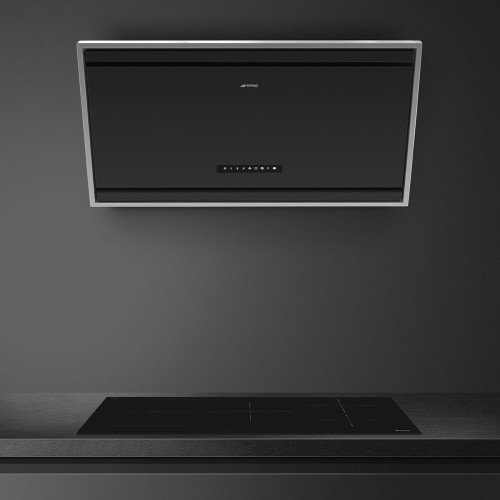

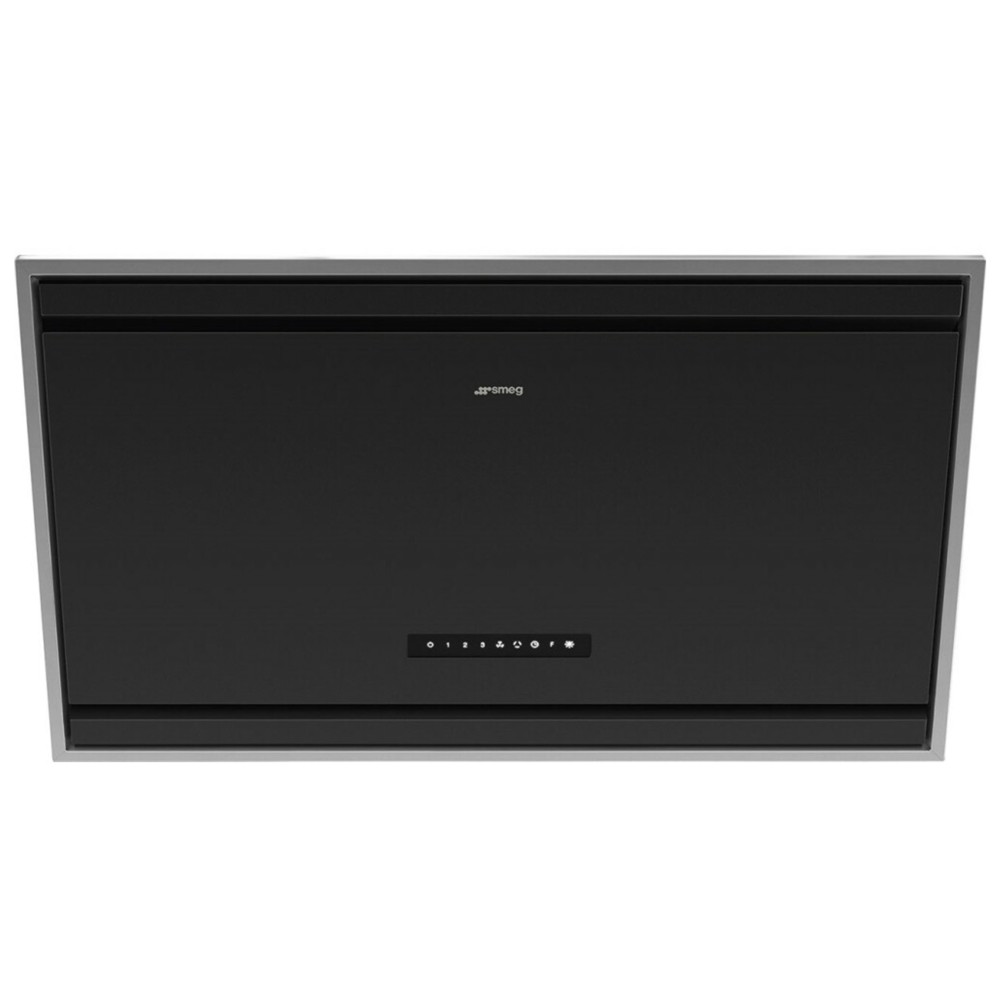

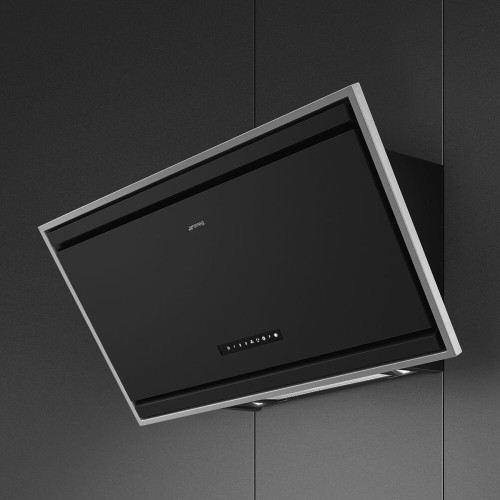

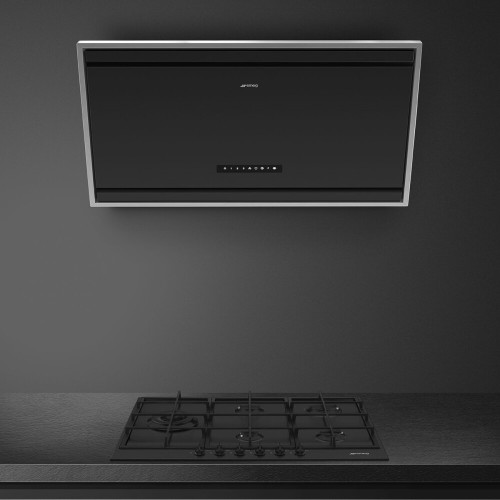

Smeg kv394mb 90cm wall-mounted inclined hood black glass

90 cm wall hood with a modern and linear design, it integrates perfectly with induction technologies, in a harmonious and highly functional way. It guarantees efficient and silent suction, guaranteeing a healthy environment.

Clean air - The 24-hour air exchange function makes the hood operate for 10 minutes every hour at a very low speed and therefore without noise for a total of 24 hours in order to purify the air in the house, with low energy impact.

Intensive speed - The intensive function allows you to operate the hood at maximum power, to speed up the elimination of the most persistent odors and have a purified environment.

Perimeter suction - The hood's suction is concentrated on the peripheral area, so as to allow a larger suction surface and offer a better level of silence, limiting the vibrations of the filters.

Adjustable light intensity - With the Dimmering function it is possible to raise or lower the intensity of the hood's light by holding down the light button.

SPECIFICATIONS

Typology

Product family: Hood

Hood type: Decorative wall hood

Hood width: 90 cm

Electronic control: YES

Perimeter extraction: YES

EAN code: 8017709319816

Aesthetics

Colour: Black

Finish: Matt black

Aesthetic: Universal

Design: Wall-mounted

Material: Glass

Glass type: Black

Programmes / functions

N. speed: 3

Intensive speed: YES

24 hour air filter function: YES

Time setting options: Auto power off

Auto ventilation 2.0: Yes

Controls

Control setting: Backlit touch control White

Main colour: White

Technical features

N. of lights: 2

Type of light: LED

Light power: 1.1 W

Dim mode: YES

Light color temperature scale (°K): 4000°K

Maximum free output flow rate: 730 m³/h

Motor power: 230 W

No. of filters: 2

Grease filters: Aluminium

Charcoal filters included: YES

Filter replacement indicator: YES

Minimum distance from GAS hob: 650 mm

Minimum distance from ELECTRIC hob: 450 mm

Vent outlet: 150 mm

Non-return valve: YES

Performance

Energy efficiency class (EEC): A

Fluid dynamic efficiency class (FDEC): UN

Grease filtering efficiency class (GFEC): D

Lighting efficiency class (LEC): UN

Annual efficiency consumption (AEChood): 53 kWh/year

Fluid Dynamic Efficiency (FDE): 31.4

Lighting Efficiency (LE): 118.5 lux/W

Grease Filtering Efficiency (GFE): 73.8%

Airflow at minimum speed (Qmin): 285 m³/h

Airflow at maximum speed (Qmax): 493 m³/h

Airflow at boost speed (Qboost): 729 m³/h

Aviation A-weighted acoustic sound power emission at minimum speed (SPEmin): 47dB(A)

Airborne A-weighted acoustic sound power emission at maximum speed (SPEmax): 61dB(A)

Airbourne A-weighted acoustic sound power emission at boost speed (SPEboost): 69dB(A)

Power consumption in off mode (Po): 0.49 W

Power consumption in stand-by mode (Ps): 0.99 W

Time increment factor (F): 0.9

Energy efficiency index: 51.6

Air flow rate measured at the best efficiency point (Qbep): 397 m³/h

Air pressure measured at the best efficiency point (Pbep): 443 Pa

Electrical power input measured at the best efficiency point (Wbep): 155 W

Nominal energy consumption of the lighting system (WL): 2 W

Average illuminance of the light on the hob (Medium): 237 lux

Sound power level at highest setting (Lwa): 61dB(A)

Electrical connection

Electrical connected power: 232 W

Voltage: 220-240 V

Frequency (Hz): 50-60 Hz

Power cord length: 1500 mm

SPEED 1

Extraction rate IEC 61591: 285 m³/h

Noise level IEC 60704-2-13: 47dB(A)

Power: 145 W

SPEED 2

Extraction rate IEC 61591: 374 m³/h

Noise level IEC 60704-2-13: 54dB(A)

Energy: 163 W

SPEED 3

Extraction rate IEC 61591: 493 m³/h

Noise level IEC 60704-2-13: 60dB(A)

Energy: 186 W

INTENSIVE SPEED

Extraction rate (IEC 61591): 729 m³/h

Noise level IEC 60704-2-13: 69dB(A)

Energy: 230 W

Logistics information

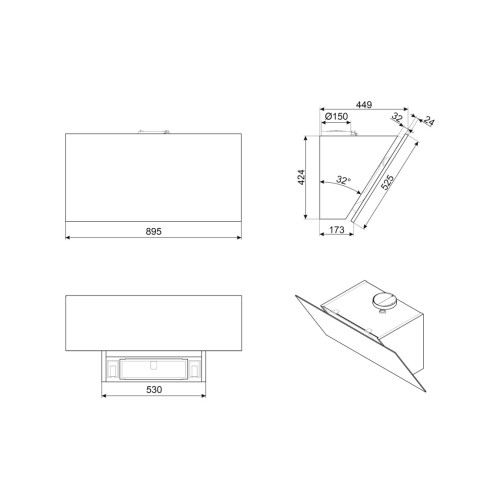

Dimensions (WxDxH): 895 x 439 x 459 mm

Packaging dimensions (WxDxH):1040 x 560 x 550 mm

Net weight: 20.08 kg

Gross weight: 24.70 kg
