Smeg kicv90bl2 90cm wall-mounted inclined hood black glass

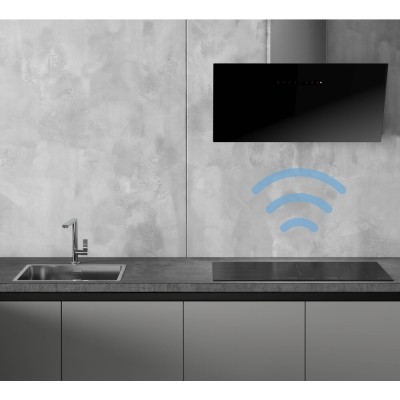

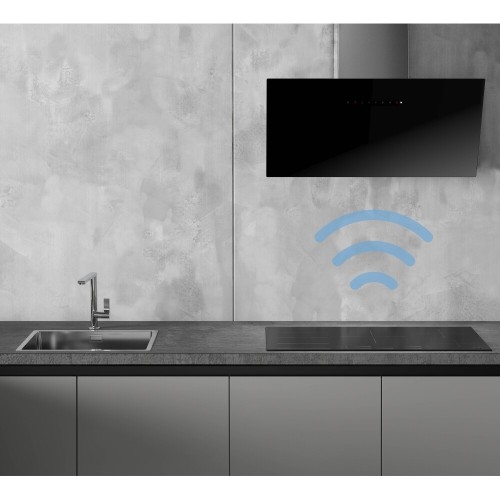

Auto-Vent - Smeg's innovative Auto-Vent system allows you to connect the hob to the hood and automatically adjust the speed of the latter based on the temperature and power selected on the hob. It is therefore not necessary to manually adjust the hood settings but by setting the desired cooking on the hob, the hood will automatically extract, modifying the suction intensity based on the selected cooking.

SPECIFICATIONS

Type

Family: Hood

Type: Decorative wall

Hood width: 90 cm

Filtering: Extractor / Filtering (for the filtering version, the KITFC152 carbon filter must be purchased separately from the Accessories)

Electronic control: Yes

Perimeter extraction: Yes

EAN code: 8017709344801

Aesthetics

Colour: Black

Finish: Glass

Aesthetics: Universal

Design: Inclined

Material: Glass

Glass type: Black

Programs / Functions

No. of speeds: 3

Intensive speed: Yes

24 h air exchange function: Yes

Auto-Vent: Yes

Time programming options: Automatic switch-off

Controls

Control adjustment: Touch control

Led colour: Red

Technical Features

No. of lights: 2

Type of light: LED

Light power: 1 W

Maximum suction capacity in free mode (P0): 770 m³/h

Motor power: 270 W

Number of filters: 2

Grease filters: Aluminium

Filter change indicator: Yes

Minimum installation distance from gas hob: 450 mm

Minimum installation distance from electric hob: 450 mm

Motor inlet diameter: 150 mm

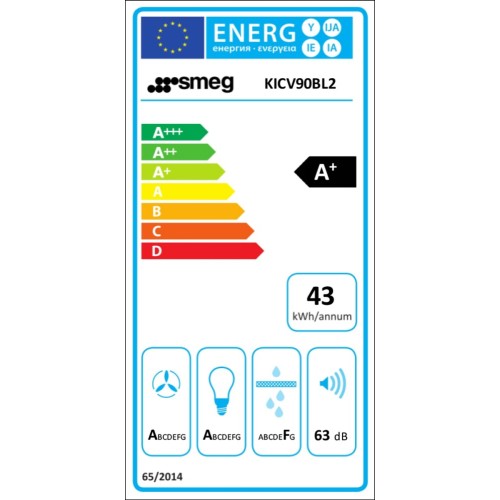

Performance / Energy Label

Energy efficiency class (EEC): A+

Fluid dynamic efficiency class (FDEC): A

Grease filtering efficiency class (GFEC): F

Lighting efficiency class (LEC): A

Annual energy consumption efficiency (AEC): 43 kWh/a

Fluid dynamic efficiency (FDE): 34.9

Lighting efficiency (LE): 68 lux/W

Grease filtering efficiency (GFE): 45.1 %

Air flow rate at minimum speed (Qmin): 300 m³/h

Air flow rate at maximum speed (Qmax): 620 m³/h

Air flow rate at intensive speed (Qboost): 770 m³/h

Weighted acoustic power emission at minimum speed (SPEmin): 48 dB(A)

Weighted acoustic power emission at maximum speed (SPEmax): 63 dB(A)

Weighted acoustic power emission at intensive speed (SPEboost): 68 dB(A)

Power consumption in Off-mode (Po): 0.49 W

Time increase factor (F): 0.7

Energy efficiency index: 40.8

Air flow rate measured in the condition of maximum efficiency (Qbep): 440 m³/h

Air pressure measured in the condition of maximum efficiency (Pbep): 468 Pa

Electrical power input in the condition of maximum efficiency (Wbep): 164 W

Nominal power of the lighting system (WL): 2.2 W

Average illumination of the lighting system on the hob (Emiddle): 150 lux

Noise level in the highest configuration (Lwa): 63 dB(A)

Electrical Connection

Nominal electrical connection data: 272 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Power cord length: 1500 mm

Speed 1

Suction capacity (IEC 61591): 310 m³/h

Noise level (IEC 60704-2-13): 52 dB(A)

Power: 175 W

Speed 2

Suction capacity (IEC 61591): 420 m³/h

Noise level (IEC 60704-2-13): 56 dB(A)

Power: 220 W

Speed 3

Suction capacity (IEC 61591): 620 m³/h

Noise level (IEC 60704-2-13): 63 dB(A)

Power: 255 W

Intensive speed

Suction capacity (IEC 61591): 770 m³/h

Noise level (IEC 60704-2-13): 68 dB(A)

Power: 270 W

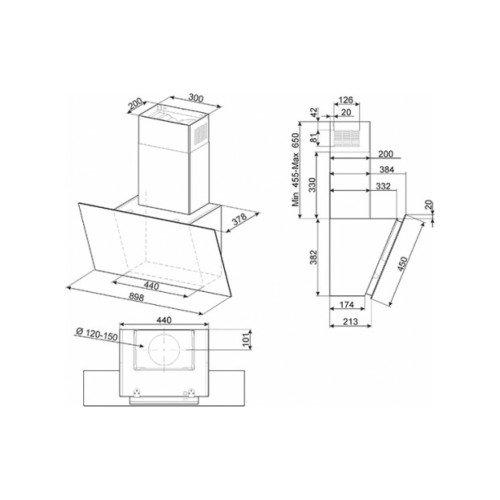

Logistics information

Product dimensions (mm): 1032x898x378

Width: 898 mm

Product depth (mm): 378 mm

Product Height (mm): 1032 mm

Net Weight (kg): 13,900 kg

Gross Weight (kg): 17,300 kg

Accessories Included

Tube Reduction: Yes
