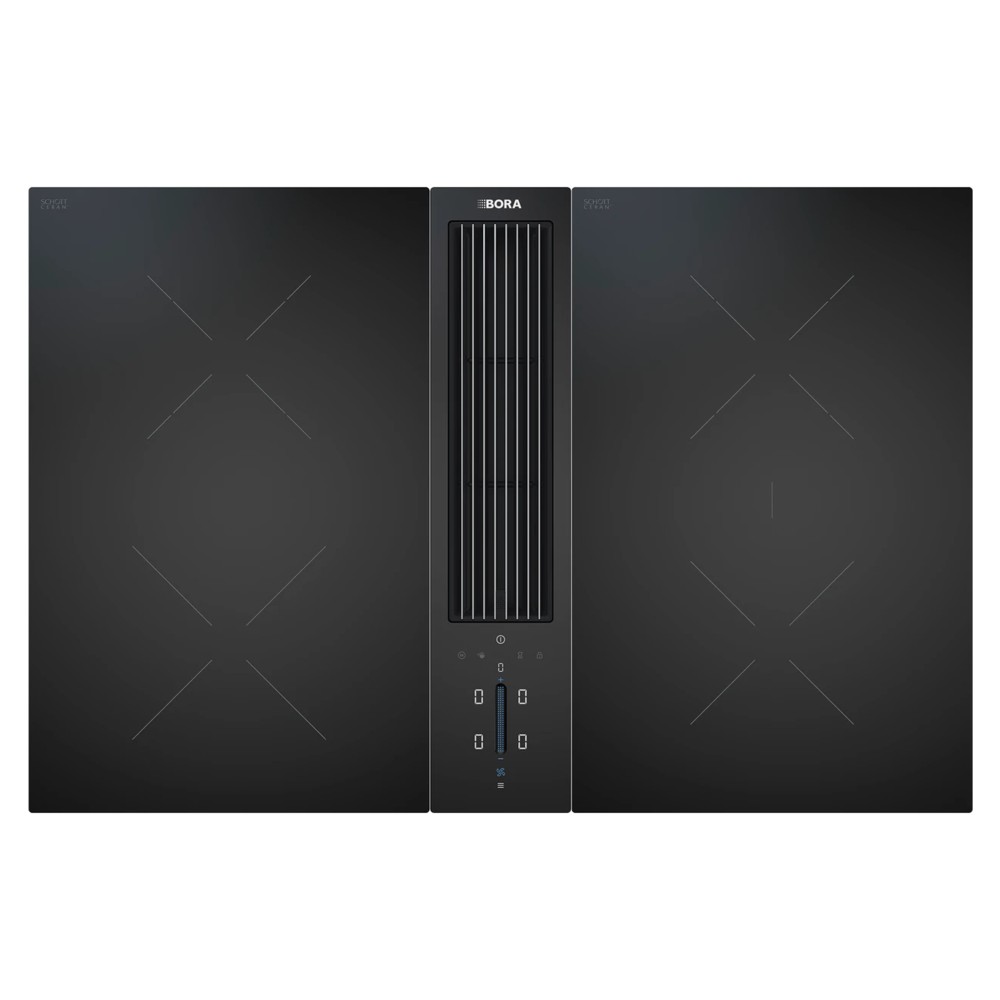

Bora cka2hb Hyper hob pair set with 77cm hood

BORA Classic 2.0

The modular extractor system with intuitive controls and customisable cooktops.

With tailor-made precision and timeless elegance, BORA Classic 2.0 integrates into any classic or modern kitchen architecture.

Maximum customisation for an extraordinary cooking experience – this was the goal when developing BORA Classic 2.0. The result is a cooktop extractor system that has been thought through down to the smallest detail. The innovative, multi-coloured sControl+ control with a smooth recess allows precise and intuitive control. Cooktops and extractor systems can be individually installed. Combinations of one, two or even more cooktops are also possible. Thanks to the central positioning on the two induction cooktops, there is room for four pots with a diameter of up to 24 cm, for example. The extra-large surface induction cooking zones ensure even heating of very large pots and pans, such as the BORA serving pan. The stainless steel Tepan grill quickly reaches a precisely regulated temperature of 250°C. Even cooking over a flame becomes a real pleasure thanks to the power of the gas cooktop. The heart of the BORA Classic 2.0 is the BORA cooktop extractor. Thanks to automatic extractor control, manual adjustment is no longer necessary, but still possible. With a modern fan and optimal air circulation, the cooktop extractor operates so quietly that conversations can be enjoyed undisturbed. Cleaning the cooktop surface is particularly easy thanks to a linear design without unnecessary edges or corners. After cooking, all movable parts can be easily cleaned in the dishwasher.

COMPLETE SET FEATURES

Width 772 mm

Height 190 mm

Depth 515 mm

Weight (incl. accessories/packaging) 34 kg

Weight (net) 31 kg

Surface material Ceramic glass

Surface quality Glossy

Color objectbricks.colour.black

Hob extractor power levels 5

Hob power levels 9

Front left cooking zone power level 3000 W

Rear left cooking zone power level 2200 W

Duct connection Ecotube

Operating mode Exhaust air/Recirculation

Number of cooking zones 4

Hob type Radiant Heater

HOOD SPECIFICATIONS CKASE2

General

Intuitive sControl+ multi-color control

Direct function selection

Very low volume

Integrated grease collection tray

Stainless steel grease filter

Compact dimensions

Functions

Automatic extraction system

Delayed automatic switch-off function

Power level

Filter level indicator and maintenance indicator (only with filtering operation)

Display lock

Short timer

Safety devices

Child protection, automatic safety switch-off

Technical data

Width 439 mm

Height 190 mm

Depth 515 mm

Surface material SSG / Stainless Steel 1.4301

Material glass

Colour black

Delivery contents

1 Classic cooktop extractor CKA2/CKA2AB

1 silencer USDF flat

1 EC ULS plinth ventilation element

1 Ecotube 90° arc flat vertical EFBV90/1

1 Ecotube flat reducer round straight EFRG/1

1 Ecotube flat reducer round offset 110 mm EFRV110/1

1 Ecotube flat duct with crosspiece 375 mm EFS375/1

2 Ecotube flat duct connectors EFV/1

7 Ecotube flat seals EFD/1

1 Ecotube round seals ERD/1

Product and planning information

Central components for the overall BORA Classic 2.0 system (operation of the system or individual components without a cooktop extractor not possible)

The cooktop extractor and the cooktops are controlled via the control panel cooktop extractor control.

Can be combined with all BORA Classic 2.0 cooktops

Up to 2 cooktops can be connected to each Pro cooktop extractor

Recirculation and exhaust air system possible

Flush or surface-mounted installation possible

The air ducting can be routed to the right or left of the extractor. With the curved duct piece, the air is directed backwards, with the straight duct piece, air can be directed to the side.

Can be combined with all BORA universal fans (except the ULI duct fan)

Completely long exhaust ducts can be created using an additional fan module

The ULS plinth ventilation can be placed in the plinth area thanks to its low installation height (100 mm)

The control unit can be placed in the plinth area to save space

Connection between the appliance and the control unit via a CAT 5 communication cable

Drawers/shelves in the built-in unit must be removable (maintenance/cleaning)

Can be combined with all BORA sockets

After all installation work has been completed, the appliance is coated all around with silicone paste heat-resistant

The depth of the channel connection (90° arc) can be reduced up to 150 mm

HYPER CKCH HOB SPECIFICATIONSCKCH

General

Compact dimensions

Minimalist design

2-circuit activation

Demo mode

Functions

Power level

Cooking zone timer

Automatic cooking start

Keep warm function

Pause function

Cleaning lock

Safety devices

Child protection, residual heat indicator, overheating protection, automatic safety switch-off

Technical data

Width 327 mm

Height 75 mm

Depth 515 mm

Weight (incl. accessories/packaging) 7 kg

Weight (net) 7 kg

Surface material Ceramic glass

Surface quality Glossy

Colour black

Connected voltage 220 - 240 V

Maximum power power consumption 3680 W

Mains connection cable length 2 m

Maximum connected power 3680 W

Fuse 1 x 16

Hob power levels 9

Front cooking zone dimensions 215

Rear cooking zone dimensions 120 / 180

Number of front cooking zone rings 1

Number of cooking zones, rear 2

Power level, front cooking zone 3000 W

objectbrick.cooktop.number-of-cooking-zones.label 2

Hob type Radiant Heater

Supplied items

Hyper CKCH hob, power cable, assembly accessories

Product and planning information

Operation only possible in combination with hob extractor

Adequate ventilation must be provided underneath the hob.

After all assembly work has been completed, the appliance is equipped with heat-resistant silicone paste all around.

HYPER HOB SPECIFICATIONS CKCB

General

Compact dimensions

Minimalist design

2-circuit activation

Ultra-large grill hob

Demo mode

Functions

Cooking zone timer

Automatic cooking start

Keep warm function

Bridge function

Pause function

Cleaning lock

Safety devices

Child protection, residual heat indicator, overheating protection, automatic safety switch-off

Data Technical data

Width 327 mm

Height 75 mm

Depth 515 mm

Surface material Ceramic glass

Surface quality Glossy

Color black

Connection voltage 220 - 240 V

Frequency 50-60

Maximum power consumption 3680 W

Mains connection cable length 2 m

Maximum connected load 3680 W

Fuse 1 x 16

Hob power levels 9

Front cooking zone dimensions 180

Rear cooking zone dimensions 120 / 180

Number of front cooking zone rings 1

Number of cooking zone rings, rear 2

number-of-cooking-zones.label 2

Hob type Radiant Heater

Supplied items

HiLight CKCB hob, power cable, installation accessories

Product and planning information

Operation only possible in combination with hob extractor

Adequate ventilation must be provided underneath the hob.

After all installation work has been completed, the appliance is coated all around with heat-resistant silicone paste
