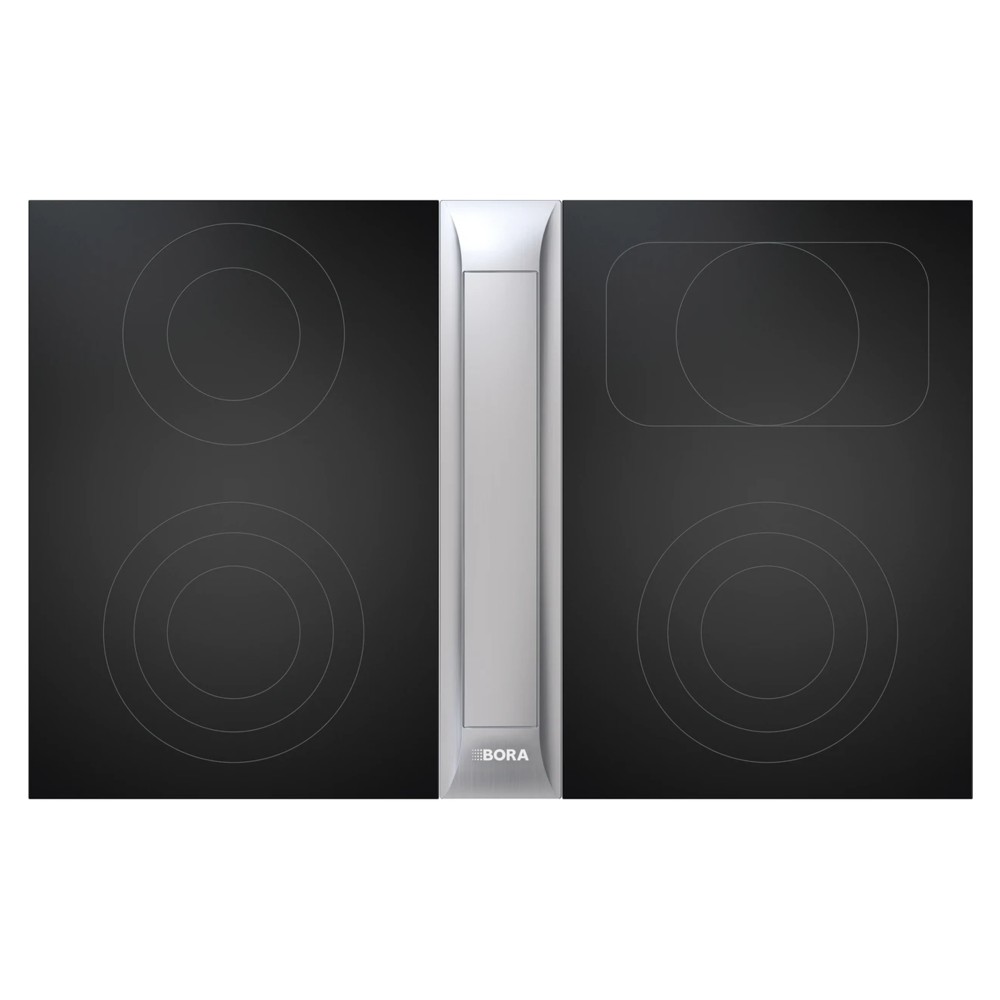

Bora pkas3hl Professional 3.0 HiLight hob set with 85 cm hood

BORA Professional 3.0

High-end extractor systems with innovative rotary controls and customisable cooktops.

It goes without saying that BORA Professional 3.0 takes cooking enjoyment and fume extraction to a new level in terms of aesthetics, functionality and convenience, making a statement in the sophisticated kitchen. The flagship BORA cooktop extractor system is one of two modular systems that can be freely combined with one, two or more cooktops. It features larger, individually configurable cooktops with a depth of 540 mm and innovative analogue-digital operation via rotary controls and touch options.

Built-in cooktops offer maximum space for cooking, even when placing larger cookware behind each other. Many convenient functions, such as the child lock and pause function, can be activated quickly and efficiently with the extractor's central control lever. Parts exposed to cooking fumes can be easily removed through the large, easily accessible inlet opening. They are dishwasher-safe, taking up very little space. The system stands out for the aesthetics and tactile feel of the black glass control knobs located on the front of the cooker. The cutting-edge design is completed by the white LED display with its clearly defined lines.

COMPLETE SET FEATURES

Width 852 mm

Height 199 mm

Depth 540 mm

Surface material Ceramic glass

Surface quality Glossy

Hob extractor power levels 9

Hob power levels 9

Duct connection Ecotube

Operating mode Exhaust air/Recirculation

Number of cooking zones 4

Hob type Radiant Heater

HOOD SPECIFICATIONS PKAS3

General

Modular system

Integrated fan

Intuitive control knob

Self-closing valve

Integrated grease tray

Stainless steel grease filter

Central components for the overall system

Functions

Automatic suction system

Automatic switch-off delay function

Power level

Level indicator and filter maintenance indicator (only in filter mode)

Cleaning function

Short timer

Super Simple Mode

Safety devices

Child lock, automatic safety switch-off, anti-trap protection

Technical data

Connected voltage 220 – 240 V

Frequency 50/60 Hz

Maximum power consumption 550 W

Dimensions (width x depth x height) 468 x 540 x 199 mm

Weight (incl. accessories/packaging) 12.5 kg

Surface material Stainless steel 1.4016

Power levels cooktop extractor 1 – 9, P

BORA Ecotube duct connection

Power supply cable for control unit 2 m

Connecting cable for control knob 0.25 m

Box contents

Cooktop extractor with integrated fan PKAS3 / PKAS3AB

Control knob

Shut-off valve

Stainless steel grease filter

Filter tray

Drain tray

Connecting cable for control knob

Power cable with type E + F plug

Instructions for use and installation

Installation accessories kit

Compatible accessories

Stainless steel grease filter PKA1FF

Shut-off valve PKA1VK / PKA1VKAB

Filter tray PKA1FW

Technical features and installation

System available in recirculation or exhaust air version

Duct connection located on the rear right side of the appliance

Compatible with all BORA Professional 3.0 cooktops

Up to 2 cooktops can be connected to each Pro extractor

Supports long and complex exhaust air routes via an additional fan module

Individually adjustable worktop height

Minimum worktop depth: ≥ 700 mm

Installation available both flush and in rabbet

Drawers and shelves of the built-in unit must be removable for maintenance and cleaning

Compatible with all BORA sockets

After assembly, the appliance is sealed with heat-resistant silicone all around

SPECIFICATIONS PKC3

General

Intuitive control knob

2-circuit activation

3-circuit activation

Demo mode

Functions

Cooking zone timer

Automatic cooking start

Variable heat retention function

Pause function

Super Simple Mode

Safety devices

Child lock, residual heat indicator, overheat protection overheating, automatic safety switch-off

Technical data

Connection voltage 380 - 415 V 2N

Frequency 50–60 Hz

Maximum power consumption 4400 W

Maximum connected load 4400 W

Fuse 2 x 16 A

Dimensions (width x depth x height) 370 x 540 x 73 mm

Weight (incl. accessories/packaging) 8.7 kg

Surface material Glass ceramic

Hob power levels 1 - 9, 2-circuit/3-circuit connection

Number of front cooking zone rings 3

Number of rear cooking zone rings 2

Front cooking zone dimensions Ø 120/180/235 mm

Rear cooking zone dimensions Ø 120/200 mm

Front cooking zone power 800/1600/2500 W

Rear cooking zone power 800/1900 W

Mains connection cable length 1.5 m

Hob communication line 1 m

Control knob/interface cable 1 m

Supplied items

HiLight hob 3-circuit/2-circuit PKC3/PKC3AB, 2 control knobs, 2 control knob connection cables, extraction connection cable, operating and assembly instructions, assembly accessories

Product and planning information

Installation possible rotated by 180°, 70 mm minimum distance required to the rear

Adequate ventilation must be provided under the hob

Operation without a hob extractor is only possible with limited functionality

After all installation work has been completed, the appliance is provided with heat-resistant silicone paste all around

SPECIFICATIONS PKCB3

General

Intuitive control knob

2-circuit activation

3-circuit activation

Braising pan power supply

Demo mode

Functions

Cooking zone timer

Automatic cooking start

Variable heat retention function

Function pause

Super Simple Mode

Safety features

Child lock, residual heat indicator, overheating protection, automatic safety switch-off

Technical data

Connection voltage 380 - 415 V 2N

Frequency 50–60 Hz

Maximum power consumption 5100 W

Maximum connected load 5100 W

Fuse 2 x 16 A

Dimensions (width x depth x height) 370 x 540 x 73 mm

Weight (incl. accessories/packaging) 8.9 kg

Surface material Glass ceramic

Hob power levels 1 - 9, 2-circuit connection/3 circuits/

grill

Number of front cooking zone rings 3

Number of rear cooking zone rings 2

Front cooking zone dimensions Ø 120/180/235 mm

Rear cooking zone dimensions Ø 165/290 x 165 mm

Front cooking zone power 800/1600/2500 W

Rear cooking zone power 1500/2600 W

Mains connection cable length 1.5 m

Hob communication line 1 m

Control knob/interface cable 1 m

Equipment supplied

HiLight hob 3 circuits/2 circuits/grill PKCB3/PKCB3AB, 2 control knobs, 2 control knob connection cables, extraction connection cable, operating and assembly instructions, assembly accessories

Product and planning information

Installation can be rotated by 180°, 70 mm minimum distance required to the rear

Adequate ventilation must be provided underneath the hob

Operation without a hob extractor is only possible with limited functionality

After all assembly work has been completed, the appliance is coated all around with heat-resistant silicone paste
