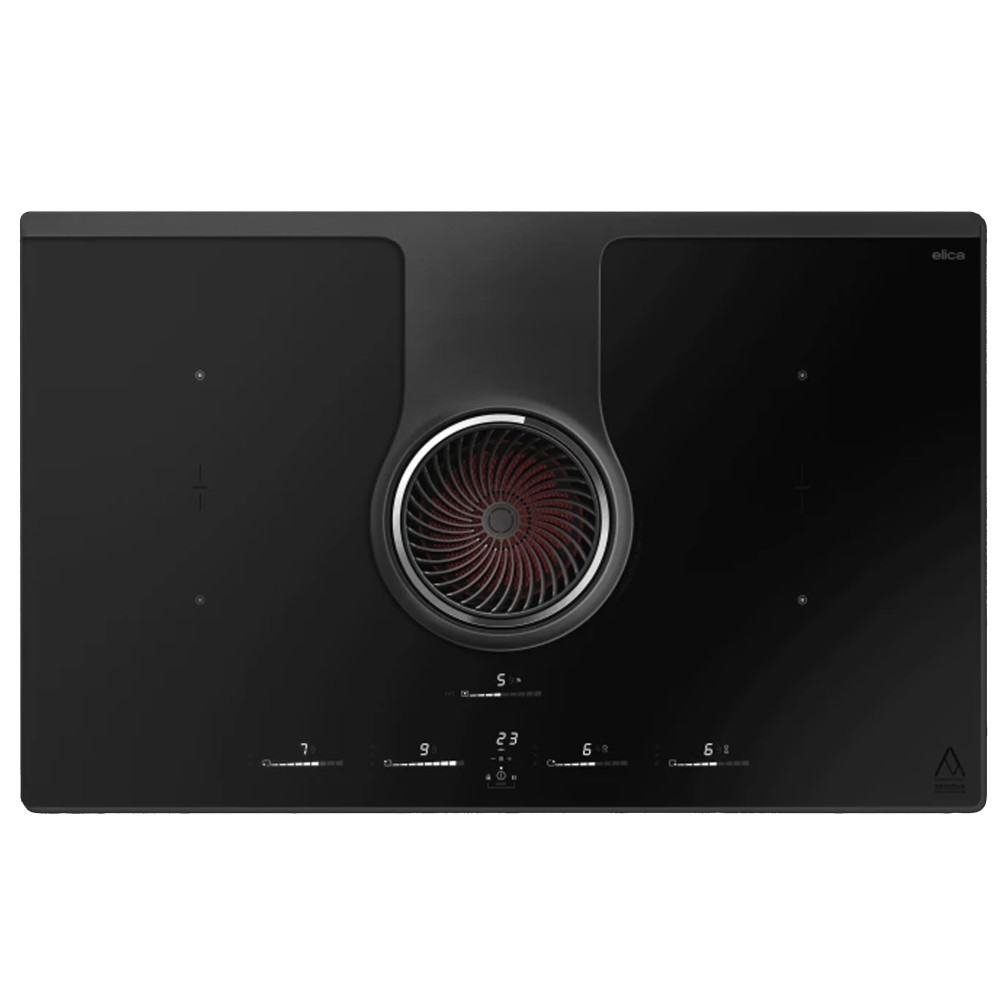

Elica nikolatesla one hp raw br/a/83 induction hob with integrated hood 83 cm

Technical Specifications

Weight (Kg): 28.1

Finish: Matt black glass

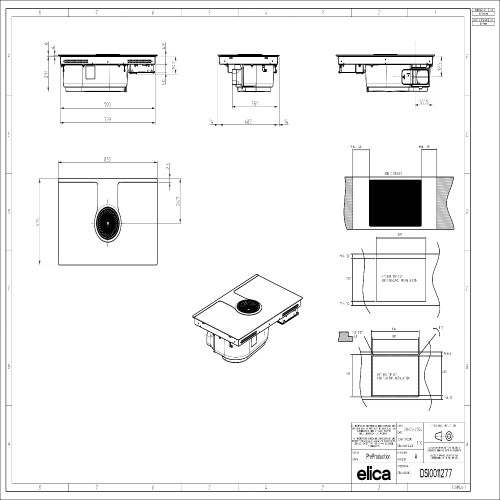

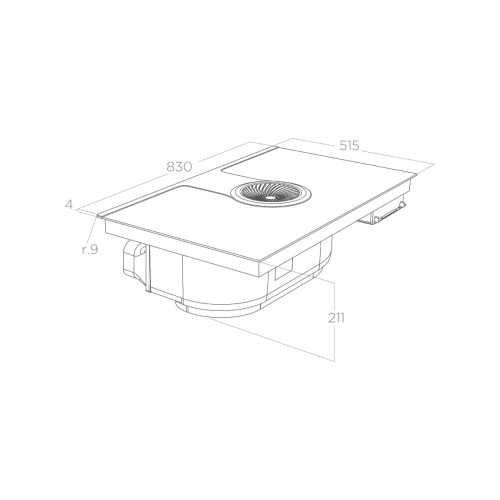

Dimensions (cm): 83x51,5x21

Cut out: 80,7x49,2 cm

Energy Class: A+>

Total absorption: 7.4 kW

Technical features suction

Suction or filtering version

Min/max/intensive range in mod. aspirant: 135/525/620 m3/h

Flow min/max/intensive in mod. filter: 125/495/570 m³/h

Suction speed: 5.1m/s

Suction min/max sound level: 35db(A) - 67db(A)

Filter min/max sound level: 38 db(A) 71db(A)

Commandi: Touch Control Slider 9V+I

Absorption: 175 W

Technical features cooking

Commandi: Touch Control Slider 9P+I

Voltage: 2020-20V

Power limitation: 4.5kW

Number of bridge zones: 2

Front cooking area left: 22x18.4 cm - 2.1/3.7 kW

Front cooking area right: 22x18.4 cm - 2.1/3 kW,

Rear cooking area left: 22x18.4 cm - 2.1/3.7 kW

Right rear cooking area: 22x18.4 cm - 2.1/3.7 kW

ACCESSORY INCLUDED

Aluminum grease filter

Kit installation filter under the hoof (min h 6 cm) KIT0199835 - The filtered air is convoluted inside the hoof and leaves in a diffuse manner thanks to the opening of the hole, which can be finished aesthetically with the chrome profile in equipment.

Kit installation filter outside the stump (min h 6 cm) KIT0199836 - It convoys the purified air until it comes out of the stump with the help of a special funnel pipe (with a profile at the end of the finish vent).

Filter installation kit KIT0199838 - The air flow is convoluted posteriorly and allowed to deflow, then exit diffusely from the hoof thanks to the vent opening that can be finished with a chrome profile.
