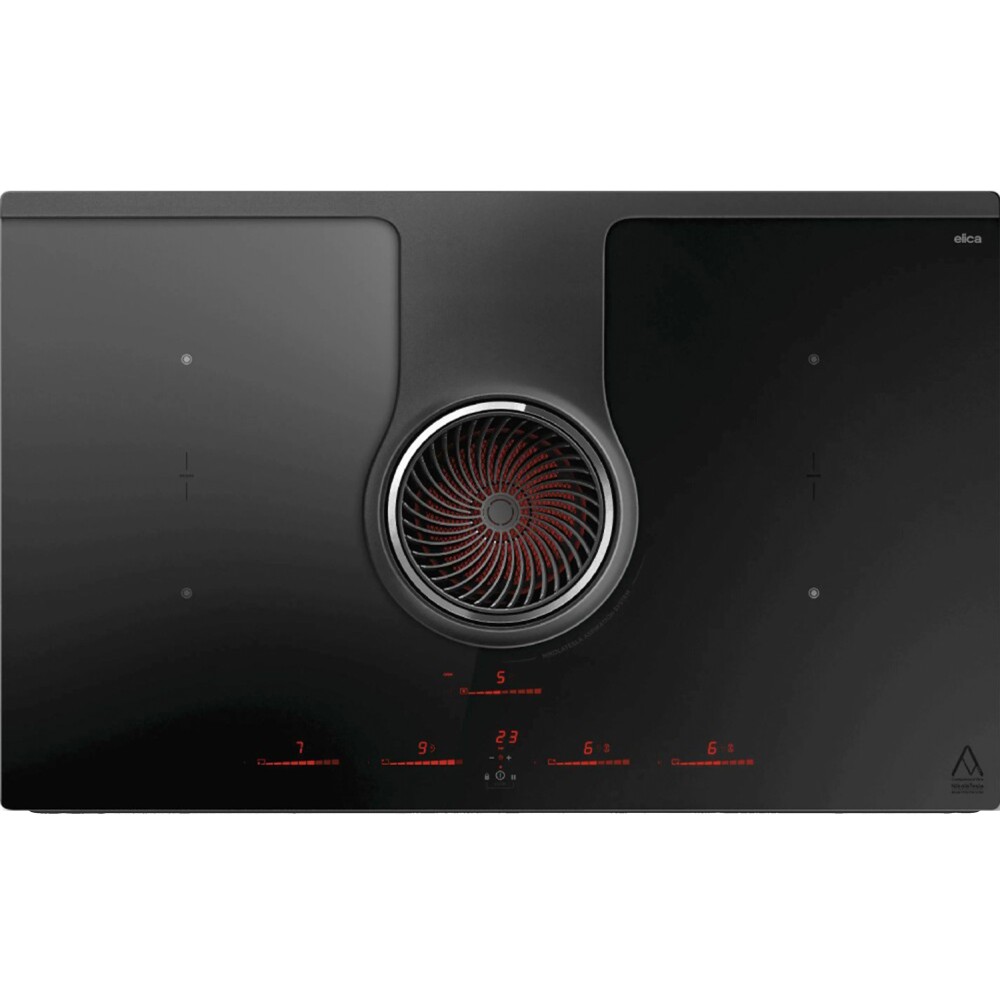

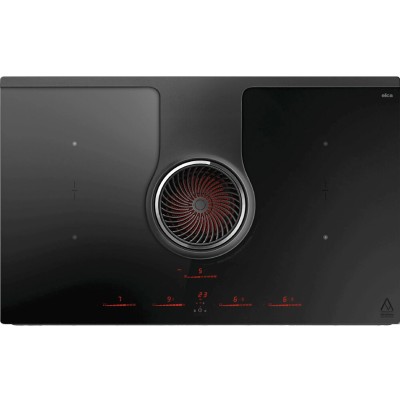

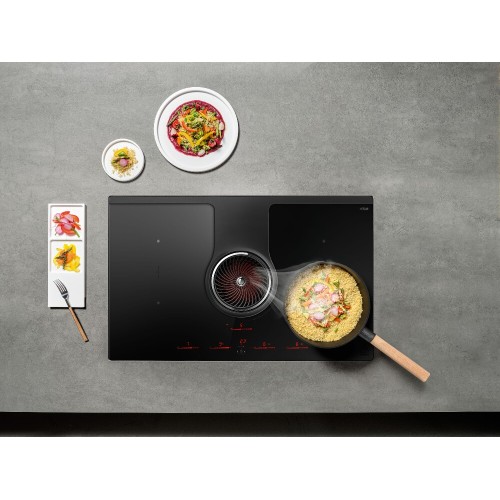

4 Cooking zones - Number of bridge zones: 2 - Hob controls: Touch Control Slider 9P+I - Hood controls: Touch Control Slider 9V+I - Min/max/intensive flow rate in extractor mode: 135/525/620 m³/h - Min/max/intensive flow rate in filtering mode: 125/495/570 m³/h - Energy Class: A++
Deliveries may be delayed due to the Christmas period
4 Cooking zones - Number of bridge zones: 2 - Hob controls: Touch Control Slider 9P+I - Hood controls: Touch Control Slider 9V+I - Min/max/intensive flow rate in extractor mode: 135/525/620 m³/h - Min/max/intensive flow rate in filtering mode: 125/495/570 m³/h - Energy Class: A++
Secure and verified payments
Paypal, credit card, bank transfer
Guaranteed Products
Buy new products, with original packaging and covered by warranty.
Our experts
We offer you maximum availability by phone and by email.
After-sales assistance
We are always at your disposal, even after the purchase.
Technical Specifications
Weight (Kg): 28.1
Finish: Black Glass

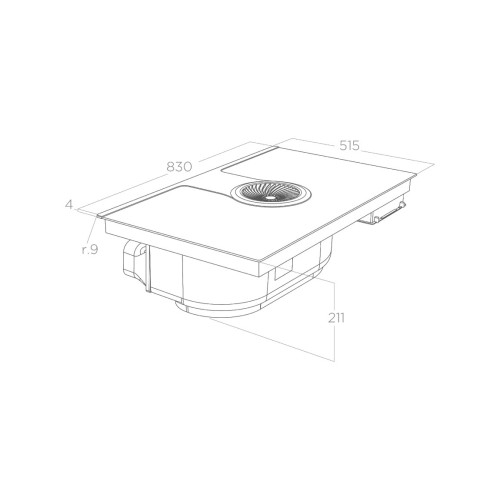

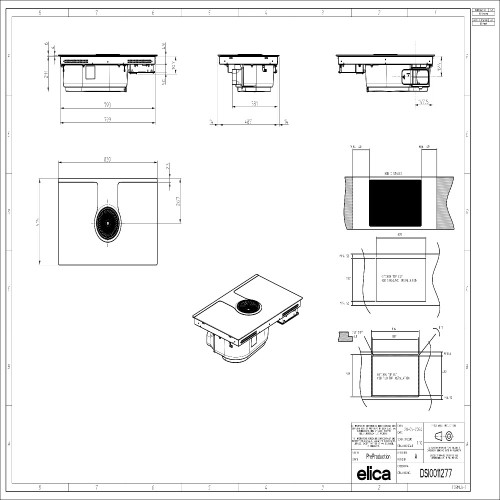

Dimensions (cm): 83x51.5x21
Cut out: 80.7x49.2 cm
Energy Class: A+p>
Total absorption: 7.4 kW
Technical features suction
Suction or filtering version
Min/max/intensive range in mod. aspirant: 135/525/620 m3/h
Flow min/max/intensive in mod. filter: 125/495/570 m³/h
Suction speed: 5.1m/s
Suction min/max sound level: 35db(A) - 67db(A)
Filter min/max sound level: 38 db(A) 71db(A)
Commandi: Touch Control Slider 9V+I
Absorption: 175 W
Technical features cooking
Commandi: Touch Control Slider 9P+I
Voltage: 2020-20V
Power limitation: 4.5kW
Number of bridge zones: 2
Front cooking area left: 22x18.4 cm - 2.1/3.7 kW
Front cooking area right: 22x18.4 cm - 2.1/3 kW,
Rear cooking area left: 22x18.4 cm - 2.1/3.7 kW
Right rear cooking area: 22x18.4 cm - 2.1/3.7 kW
ACCESSORY INCLUDED
Aluminum grease filter
For setup mode: NOTE: filter, you need to purchase the EVO filter KIT0200786. It is also essential to pair one of the three installation kits compatible with the filter version. All details are available in the information belowKit installation filter under the hoof (min h 6 cm) KIT0199835 - The filtered air is convoluted inside the hoof and leaves in a diffuse manner thanks to the opening of the hole, which can be finished aesthetically with the chrome profile in equipment.
Kit installation filter outside the stump (min h 6 cm) KIT0199836 - It convoys the purified air until it comes out of the stump with the help of a special funnel pipe (with a profile at the end of the finish vent).
Filter installation kit KIT0199838 - The air flow is convoluted posteriorly and allowed to deflow, then exit diffusely from the hoof thanks to the vent opening that can be finished with a chrome profile.
