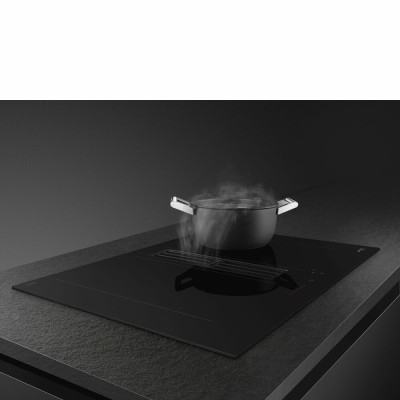

Smeg hobd472d2 induction hob with integrated hood 70 cm black

The perfect mix of technology and design

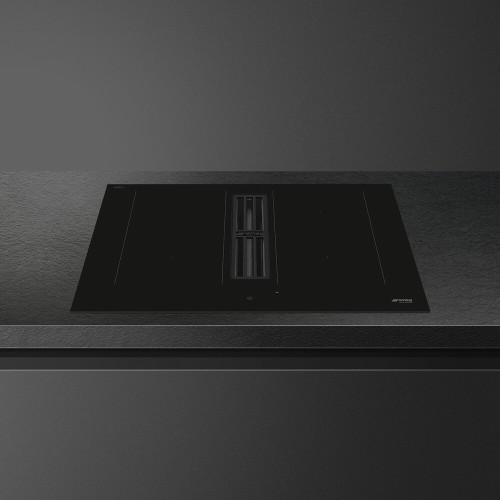

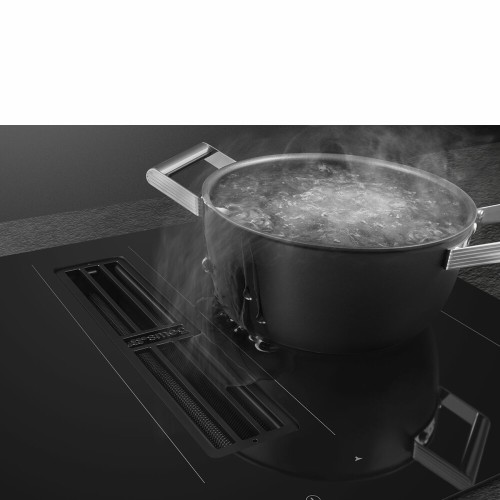

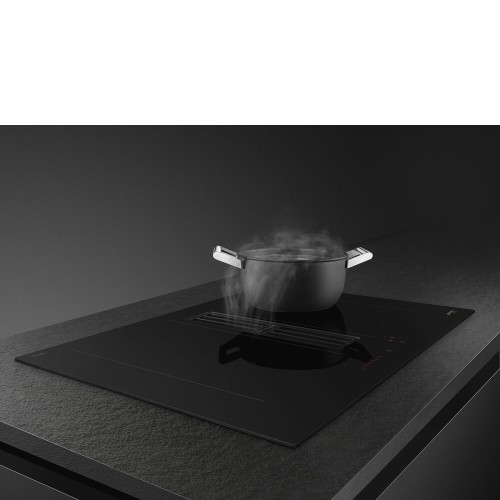

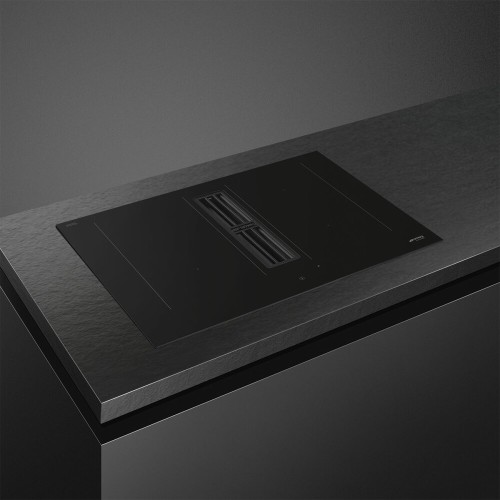

The HOBD hob is a single, resistant and completely flush glass-ceramic surface. The extraction system is protected by an elegant and functional cast iron grill that allows the entire surface to appear seamlessly so as to move the pans across the entire surface without obstacles.

SPECIFICATIONS

Type

Family: Hob

Size: 70 cm

Type: Induction with integrated hood

Filtering: Expulsion

Built-in: Semi-flush with the possibility of flush-mounting

Power supply: Electric

Electronic control: Yes

EAN code: 8017709341862

Aesthetics

Colour: Black

Finish: Glass

Aesthetics: Universal

Material: Glass

Glass type: Ceramic

Type of control adjustment: EVO Slider

Position of controls: Front

Slider: Yes

LED control colour: Red

Glass edge: Straight

Grids: Stainless steel

Screen printing colour: Grey

Main oven programmes / functions

Total number of cooking zones: 4

Number of induction cooking zones: 4

Time programming options: Automatic switch-off

Number of cooking zones with booster: 4

Number of flexible zones: 2

Main on/off button: Yes

Power levels: 9

Options

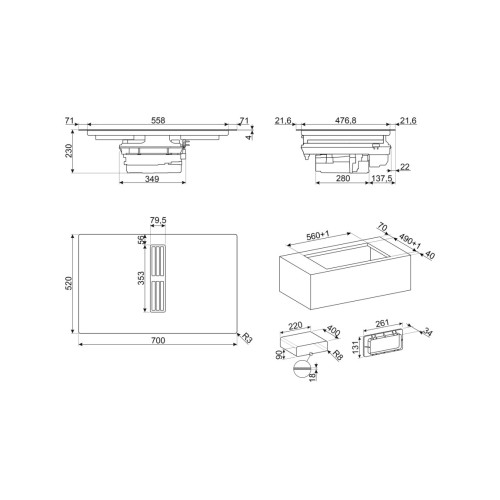

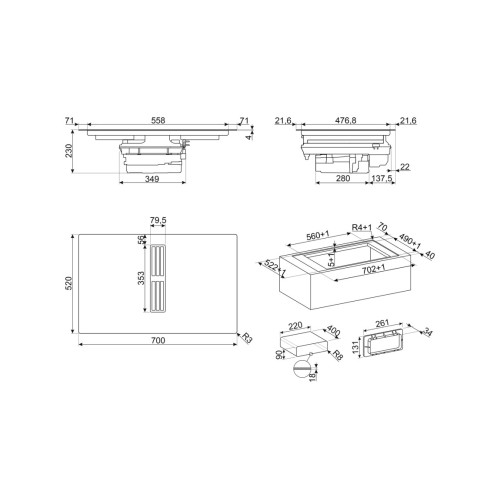

Built-in hole: 490x560 mm

Multizone option: Yes

Flexible Zone Type: MultiZone

End of cooking timer: 4

Pause option: Yes

Minutes: 1

End of cooking acoustic alarm: Yes

Remaining time indicator: Yes

Power Limiter option: Yes Advance

Power Limiter option in W: 2800, 3500, 4500, 7400 W

Show Room Demo option: Yes

Button Lock / Child Safety option: Yes

Automatic heat maintenance function: Yes

Bridge option: Yes

Cleaning option: Yes

Quick start: Yes

Quick level selection: Yes

Cooking zones

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Rear right

4th zone position: Front right

1st zone dimensions: 21.0X19.0 cm

2nd zone dimensions: 21.0X19.0 cm

3rd zone dimensions: 21.0X19.0 cm

4th zone dimensions: 21.0X19.0 cm

Left Multizone dimensions: 39.5x22.0 cm

Right Multizone dimensions: 39.5x22.0 cm

1st power zone: 2.10 kW

Power 2nd zone: 2.10 kW

Power 3rd zone: 2.10 kW

Power 4th zone: 2.10 kW

Booster power 1st zone: 3.00 kW

Booster power 2nd zone: 3.00 kW

Booster power 3rd zone: 3.00 kW

Booster power 4th zone: 3.00 kW

Booster power Multizone left: 3.70 kW

Booster power Multizone right: 3.70 kW

Technical Features

Automatic adaptation to the diameter of the pan: Yes

Automatic detection of the position of the pan and control: Yes

Pan detection: Yes, min 9 cm

Auto-stop in case of overflow: Yes

Residual heat indicator: Yes

Protection against accidental ignition: Yes

Performance / Energy Label

Annual energy efficiency (AEC): 29 kWh/a

Electrical Connection

Rated electrical connection data: 7620 W

Current: 33 A

Voltage (V): 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60 Hz

Type of electrical cable supplied: Yes, Single and Two-phase

Power cord length: 120 cm

Controls (hood)

Hood control adjustment: Touch Capacitive

Led color: Red

Display: Yes

Programs / Functions (hood)

No. of speeds: 8

No. of intensive speeds: 2

Hood time programming options: Delay

Other options: Filtering Kit included

Auto-Vent: Yes

Automatic connection between hob and integrated hood: YES

Technical Features (hood)

Maximum suction capacity in free mode (P0): 650 m³/h

Motor power: 220 W

Number of filters: 1

Grease filters: Aluminium

Charcoal filters as standard: YES regenerable

Filter change indicator: Yes

Speed 1

Suction capacity (IEC 61591): 230 m³/h

Noise level (IEC 60704-2-13): 49 dB(A)

Hood power: 40 W

Speed 2

Suction capacity (IEC 61591): 270 m³/h

Noise level (IEC 60704-2-13): 51 dB(A)

Hood power: 50 W

Speed 3

Extraction capacity (IEC 61591): 340 m³/h

Noise level (IEC 60704-2-13): 51 dB(A)

Hood power: 70 W

Speed 4

Extraction capacity (IEC 61591): 370 m³/h

Noise level (IEC 60704-2-13): 60 dB(A)

Hood power: 90 W

Speed 5

Extraction capacity (IEC 61591): 400 m³/h

Noise level (IEC 60704-2-13): 62 dB(A)

Pressure: 500 Pa

Hood power: 100 W

Speed 6

Suction capacity (IEC 61591): 435 m³/h

Noise level (IEC 60704-2-13): 63 dB(A)

Pressure: 550 Pa

Hood power: 120 W

Speed 7

Suction capacity (IEC 61591): 460 m³/h

Noise level (IEC 60704-2-13): 65 dB(A)

Pressure: 600 Pa

Hood power: 150 W

Speed 8

Suction capacity (IEC 61591): 500 m³/h

Noise level (IEC 60704-2-13): 68 dB(A)

Pressure: 620 Pa

Hood power: 170 W

Intensive speed

Suction capacity (IEC 61591): 540 m³/h

Noise level (IEC 60704-2-13): 70 dB(A)

Hood power: 180 W

Speed intensive 2

Suction capacity (IEC 61591): 630 m³/h

Noise level (IEC 60704-2-13): 73 dB(A)

Pressure: 630 Pa

Hood power: 220 W

Performance / Energy Label (hood)

Energy efficiency class (EEC): A+

Fluid dynamic efficiency class (FDEC): A

Grease filtering efficiency class (GFEC): B

Fluid dynamic efficiency (FDE): 32.10

Illumination efficiency (LE): 0.0 lux/W

Grease filtering efficiency (GFE): 85.1 %

Air flow rate at minimum speed (Qmin): 230 m³/h

Air flow rate at maximum speed (Qmax): 500 m³/h

Air flow rate at intensive speed (Qboost): 630 m³/h

Weighted acoustic power emission at minimum speed (SPEmin): 49 dB(A)

Weighted acoustic power emission at maximum speed (SPEmax): 68 dB(A)

Weighted acoustic power emission at intensive speed (SPEboost): 73 dB(A)

Power consumption in Off-mode (Po): 0.49 W

Time increase factor (F): 0.8

Energy efficiency index: 44.2

Air flow rate measured in maximum efficiency condition (Qbep): 320 m³/h

Air pressure measured in the condition of maximum efficiency (Pbep): 502 Pa

Electrical power absorbed in the condition of maximum efficiency (Wbep): 139 W

Noise level in the highest configuration (Lwa): 68 dB(A)

Logistics Information

Product dimensions (mm): 230x700x520

Product depth: 520 mm

Product width: 700 mm

Product height: 230 mm

Net weight (kg): 17,000 kg

Gross weight (kg): 22,000 kg

Width of the packaged product: 870 mm

Accessories Included

Filter kit and regenerable carbon filter included
