Automatic hood function - With the automatic hood function, when you set the cooking temperature, the hood intuitively adjusts its extraction power for the perfect balance between efficiency and comfort.

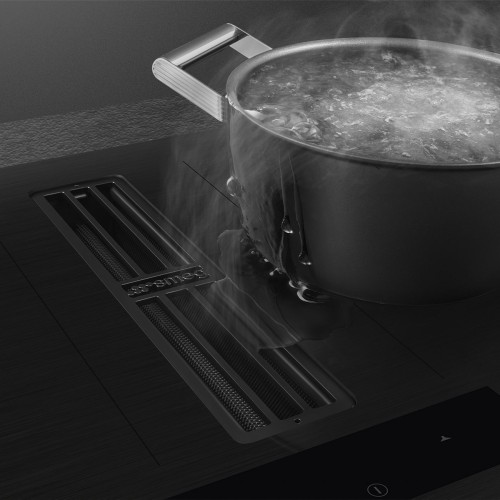

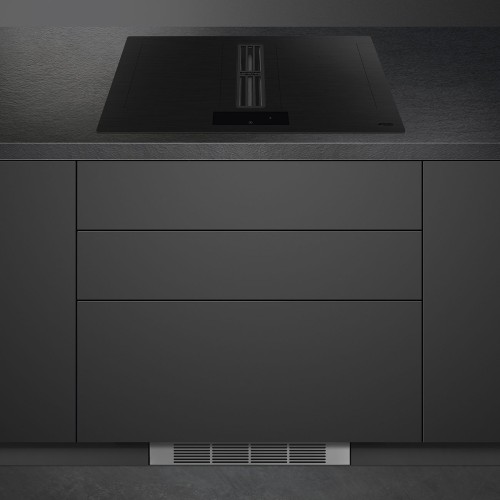

The perfect mix of technology and design - The HOBD hob is a single resistant and completely flush glass-ceramic surface. The extraction system is protected by an elegant and functional cast iron grille that allows the entire surface to appear seamlessly so as to move the pans across the entire hob without obstacles.
Easy to clean and install filter - The carbon filter is designed for simple installation and easy cleaning. Regenerable up to 8 times, it is also dishwasher safe and oven dryable.

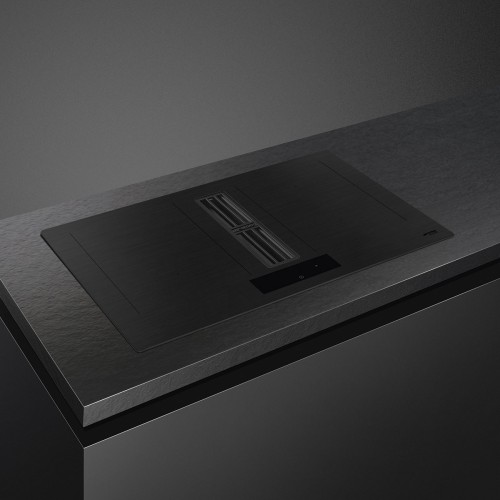

Distinctive design - This induction hob features an elegant matt black surface that is scratch-resistant. The perfect combination of design and functionality.

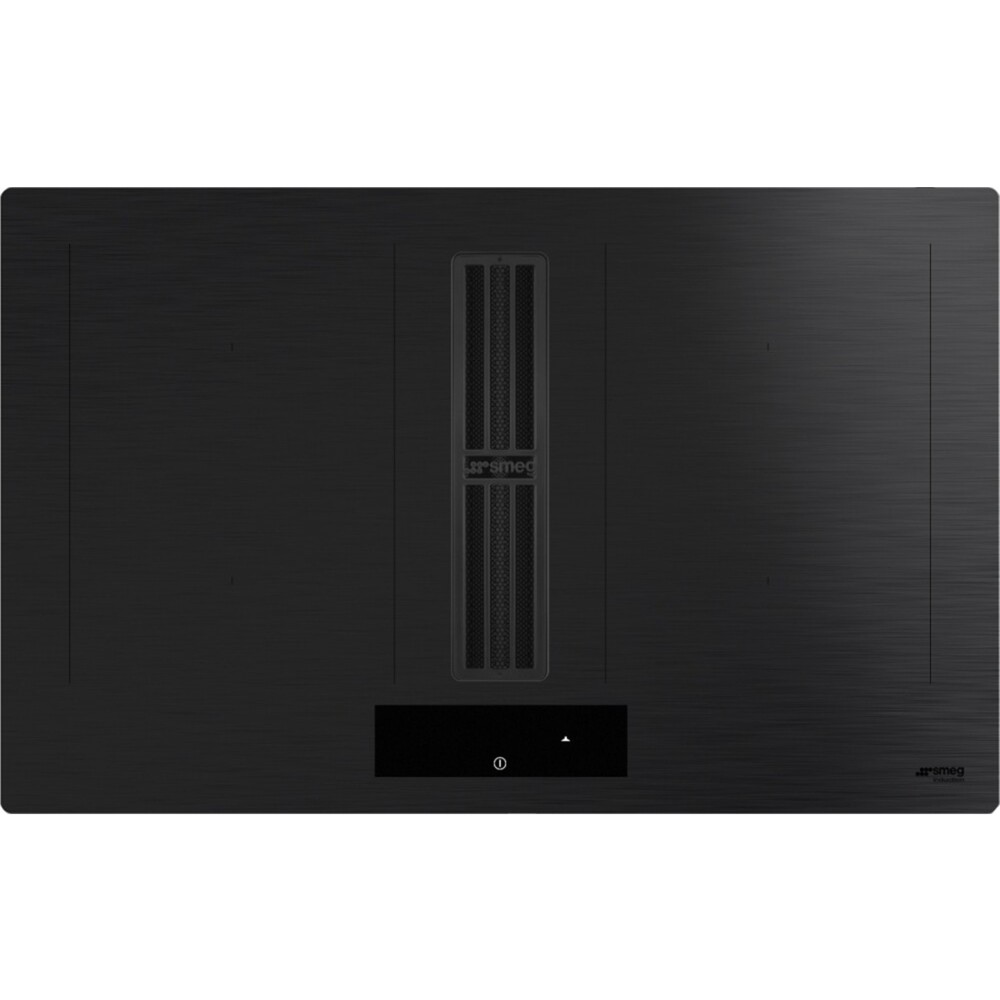

Evo slider controls - The backlit Evo Slider controls contribute to an elegant and minimalist look of the hob surface, lighting up only when in use.

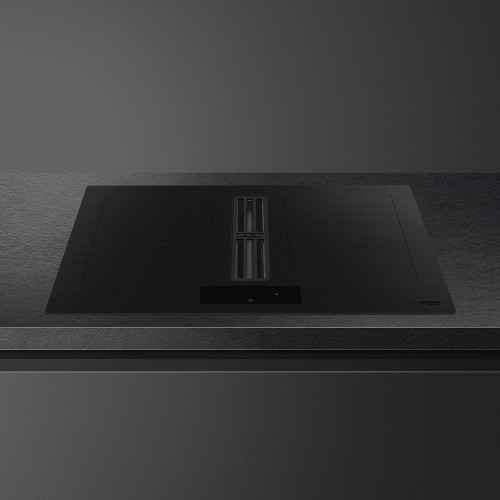

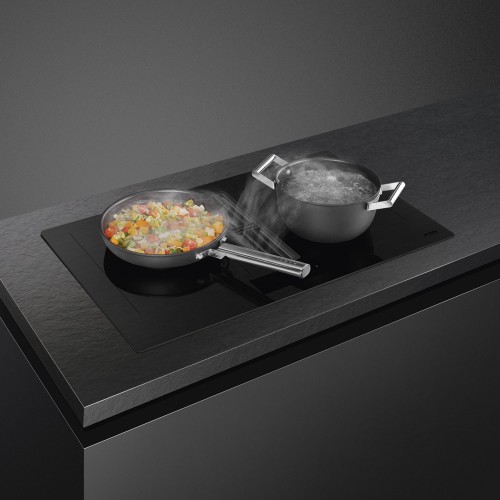

Flat surface - With its smooth and seamless surface, this induction hob allows you to slide pots and pans freely, ensuring maximum ease and convenience when cooking.
Timer setting - Thanks to the timer function, you can easily adjust the cooking time, after selecting the temperature, using the slider for precise and perfect results.

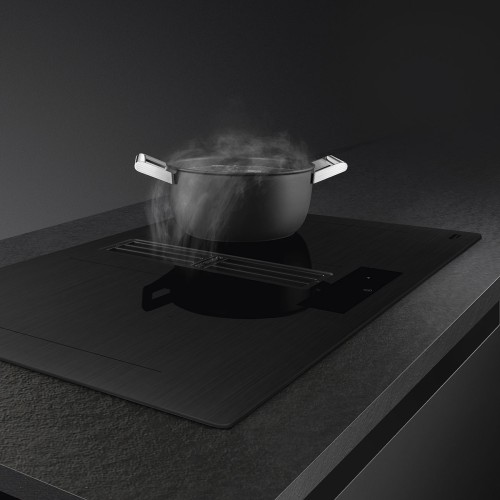

High performance - Designed to ensure the best performance, this induction hob offers an absorption capacity of 630 m³/h, effortlessly managing cooking fumes for a cleaner kitchen.
SPECIFICATIONS
Typology
Family: Hob
Size: 80 cm
Typology: Induction with integrated hood
Filtering: Expulsion

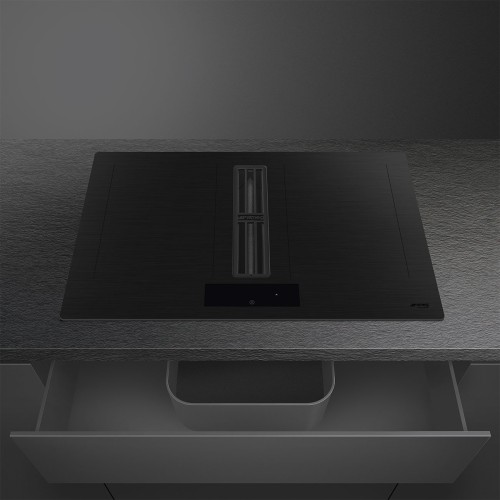

Built-in: Semi-flush with the possibility of flush-mounting
Power supply: Electric
Electronic control: Yes
EAN code: 8017709341886
Aesthetics
Colour: Matt Black
Finish: Glass
Aesthetics: Classic
Material: Glass
Glass type: Ceramic
Type of control adjustment: EVO Slider
Position of controls: Front
Slider: Yes
LED control colour: White
Glass edge: Straight
Grids: Stainless steel
Double ceramic coating: Yes
Screen printing colour: Grey
Main oven programmes / functions
Total number of cooking zones: 4
Number of induction cooking zones: 4
Time programming options: Automatic switch-off
Number of cooking zones with booster: 4
Number of Flexible Zones: 2
Main on/off button: Yes
Power levels: 9
Options

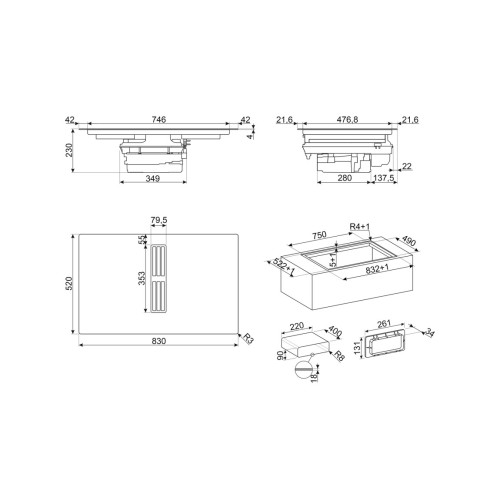

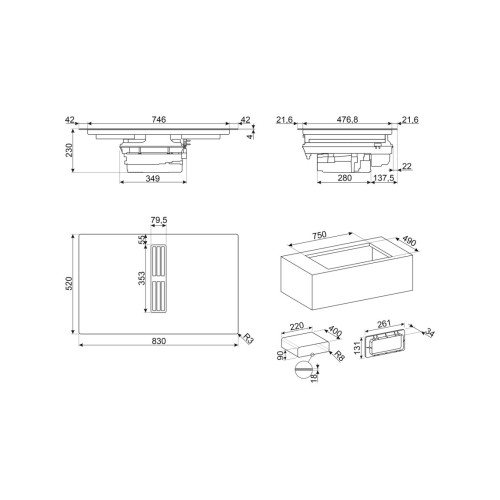

Built-in hole: 490x750 mm
Multizone option: Yes
Flexible Zone type: MultiZone
End of cooking timer: 4
Pause option: Yes
Minutes: 1
End of cooking acoustic alarm: Yes
Remaining time indicator: Yes
Power Limiter option: Yes Advance
Power Limiter option in W: 2800, 3500, 4500, 7400 W
Show Room Demo option: Yes
Button Lock / Child Safety option: Yes
Automatic heat maintenance function: Yes
Cleaning option: Yes
Quick start: Yes
Quick level selection: Yes
Cooking zones
1st zone position: Front left
2nd zone position: Rear left
Position of 3rd zone: Rear right
Position of 4th zone: Front right
Type of 1st zone: Induction - Multizone
Type of 2nd zone: Induction - Multizone
Dimensions of 1st zone: 21.0x19.0 cm
Dimensions of 2nd zone: 21.0x19.0 cm
Dimensions of 3rd zone: 21.0x19.0 cm
Dimensions of 4th zone: 21.0x19.0 cm
Dimensions of Multizone left: 39.0x21.0 cm
Dimensions of Multizone right: 39.0x21.0 cm
Power of 1st zone: 2.10 kW
Power of 2nd zone: 2.10 kW
Power 3rd zone: 2.10 kW
Power 4th zone: 2.10 kW
Booster power 1st zone: 3.0 kW
Booster power 2nd zone: 3.00 kW
Booster power 3rd zone: 3.00 kW
Booster power 4th zone: 3.00 kW
Booster power Multizone left: 3.70 kW
Booster power Multizone right: 3.70 kW
Technical cooking features
Automatic adaptation to the diameter of the pan: Yes
Automatic detection of pan position and control: Yes
Detection of the presence of the pan: Yes, min 9 cm
Automatic overflow stop: Yes
Residual heat indicator: Yes
Protection against accidental switch-on: Yes
Performance / Energy Label
Annual energy efficiency (AEC): 29 kWh/a
Electrical Connection
Electrical connection rating: 7620 W
Current: 33 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Type of electrical cable supplied: Yes, Single and Two-phase
Power cord length: 120 cm
Controls (hood)
Hood control adjustment: Touch control
Led colour: White
Display: Yes
Programs / Functions (hood)
Auto-Vent: Thanks to the Auto-Vent function, the hood's suction speed is automatically adjusted based on the temperature and power selected on the hob.
No. of speeds: 8
No. of intensive speeds: 2
Hood time programming options: Delay
Other options: Filtering and Extractor Kit included
Auto-Vent: Yes
Technical Features (hood)
Maximum suction capacity in free mode (P0): 650 m³/h
Motor power: 220 W
Number of filters: 1
Grease filters: Aluminium
Charcoal filters as standard: YES regenerable
Filter change indicator: Yes
Speed 1
Suction capacity (IEC 61591): 230 m³/h
Noise level (IEC 60704-2-13): 49 dB(A)
Hood power: 40 W
Speed 2
Suction capacity (IEC 61591): 270 m³/h
Noise level (IEC 60704-2-13): 51 dB(A)
Hood power: 50 W
Speed 3
Extraction capacity (IEC 61591): 340 m³/h
Noise level (IEC 60704-2-13): 55 dB(A)
Hood power: 70 W
Speed 4
Extraction capacity (IEC 61591): 370 m³/h
Noise level (IEC 60704-2-13): 60 dB(A)
Hood power: 90 W
Speed 5
Extraction capacity (IEC 61591): 400 m³/h
Noise level (IEC 60704-2-13): 62 dB(A)
Pressure: 500 Pa
Hood power: 100 W
Speed 6
Extraction capacity (IEC 61591): 435 m³/h
Noise level (IEC 60704-2-13): 63 dB(A)
Pressure: 550 Pa
Hood power: 120 W
Speed 7
Extraction capacity (IEC 61591): 460 m³/h
Noise level (IEC 60704-2-13): 65 dB(A)
Pressure: 600 Pa
Hood power: 150 W
Speed 8
Suction capacity (IEC 61591): 500 m³/h
Noise level (IEC 60704-2-13): 68 dB(A)
Pressure: 620 Pa
Hood power: 170 W
Intensive speed
Suction capacity (IEC 61591): 540 m³/h
Noise level (IEC 60704-2-13): 70 dB(A)
Hood power: 180 W
Intensive speed 2
Suction capacity (IEC 61591): 630 m³/h
Noise level (IEC 60704-2-13): 73 dB(A)
Pressure: 630 Pa
Hood power: 220 W
Performance / Energy Label (hood)
Energy efficiency class (EEC): A+
Fluid dynamic efficiency class (FDEC): A
Grease filtering efficiency class (GFEC): B
Fluid dynamic efficiency (FDE): 32.10
Illumination efficiency (LE): 0.0 lux/W
Grease filtering efficiency (GFE): 85.1 %
Air flow rate at minimum speed (Qmin): 230 m³/h
Air flow rate at maximum speed (Qmax): 500 m³/h
Air flow rate at intensive speed (Qboost): 630 m³/h
Weighted sound power emission at minimum speed (SPEmin): 49 dB(A)
Weighted sound power emission at maximum speed (SPEmax): 68 dB(A)
Weighted sound power emission at intensive speed (SPEboost): 73 dB(A)
Power consumption in Off-mode (Po): 0.49 W
Time increase factor (F): 0.8
Energy efficiency index: 44.2
Air flow rate air pressure measured in the condition of maximum efficiency (Qbep): 320 m³/h
Air pressure measured in the condition of maximum efficiency (Pbep): 502 Pa
Electric power absorbed in the condition of maximum efficiency (Wbep): 139 W
Noise level in the highest configuration (Lwa): 68 dB(A)
Logistics Information
Product Dimensions (mm): 230x830x520
Product Depth: 520 mm
Product Width: 830 mm
Product Height: 230 mm
Net Weight (kg): 18,000 kg
Gross Weight (kg): 25,000 kg
Accessories Included
Filter kit and regenerable carbon filter included
