SPECIFICATIONS
Aesthetics

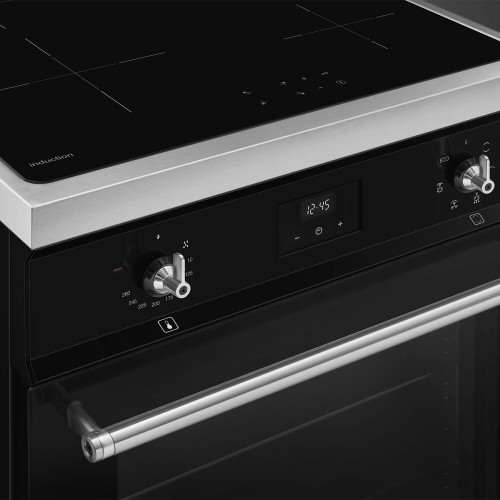

4.3-inch touch display control with LED technology, usability with knobs + 3 touch buttons
Colour: Black
Design: Standard
Finish: Glossy
Aesthetics: Classic
Control panel finish: Enamelled metal
Series: Concerto
Material: Stainless steel
Hob colour: Stainless steel
Type of hob control settings: Digi Touch
Hob LED colours: Red
Type of control knobs: Smeg Classic
Control colour: Stainless steel
N. controls: 2
Display name: DigiScreen
Door: Full glass
Glass type: Eclipse
Handle: Smeg Classic
Handle colour: Brushed stainless steel
Feet colour: Black
Typology
Kitchen dimensions: 60x60 cm
Kitchen configuration: Full electric
Hob type: Induction
Hob energy type: Electric
No. ovens: 1
Main oven type: Fan assisted
EAN code: 8017709345952
Installation position of the appliance: Freestanding, Class 1, Built-in, Class 2-1 UNI EN 30-1-1 standard
Cleaning system: Vapor Clean
Programmes / Functions
Traditional cooking functions: Static, Fan assisted, Eco, Large grill, Large fan assisted grill, Fan assisted base
Main oven options
Timer: Yes
End of cooking acoustic alarm: Yes
Minimum temperature: 50 °C
Maximum temperature: 260 °C
Hob options
End of cooking timer: 4
Minutes: 1
Low energy mode: Yes
Low energy mode in W: 1000, 1600, 2200, 2800, 3500, 6000, 7200 W
Technical characteristics of the hob
Total no. of cooking zones: 4
No. of cooking zones with Booster: 4
Position of 1st zone: Front left
Position of 2nd zone: Rear left
Position of 3rd zone: Rear right
Position of 4th zone: Front right
Type of 1st zone: Induction - single
Type of 2nd zone: Induction - single
Type of 3rd zone: Induction - single
Type of 4th zone: Induction - single
Dimensions of 1st zone: Ø 21.0 cm
Dimensions of 2nd zone: Ø 15.0 cm
Dimensions of 3rd zone: Ø 21.0 cm
Dimensions of 4th zone: Ø 15.0 cm
Power 1st zone: 1.60 kW
2nd zone power: 1.20 kW
3rd zone power: 1.60 kW
4th zone power: 1.20 kW
1st zone booster power: 2.10 kW
2nd zone booster power: 1.60 kW
3rd zone booster power: 2.10 kW
4th zone booster power: 1.60 kW
Automatic stop in case of overheating: Yes
Automatic adjustment to the diameter of the pan: Yes
Minimum diameter indicator for use: Yes
Selected zone indicator: Yes
Residual heat indicator: Yes
Technical characteristics of the oven main
Net cavity volume: 70 l
Gross volume, 1st cavity: 79 l
Cavity material: Ever Clean enamel
Number of shelves: 5
Type of shelves: Metal grids
Number of lights: 1
Light type: Halogen
Light power: 40 W
Number of fans: 1
Cooking time setting: Stop
Door opening: Tip down
Removable door: Yes
Full glass internal door: Yes
Removable internal door: Yes
Total number of door glasses: 3
No. of heat-reflecting door glasses: 2
Safety thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill element: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Temperature control: Electromechanical

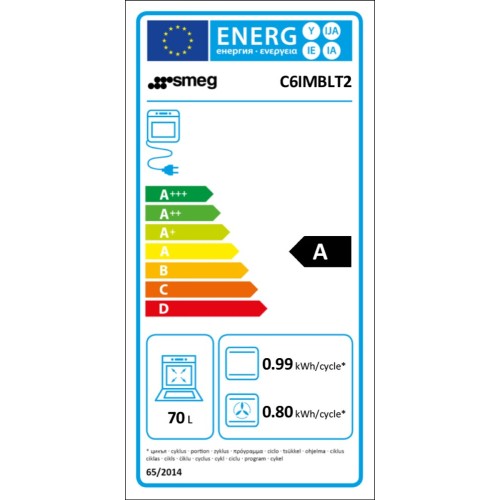

Performance / Energy label
Energy consumption in forced convection: 2.88 MJ
Energy consumption per cycle in forced convection: 0.80 KWh
Energy consumption in conventional mode: 3.56 MJ
Energy consumption per cycle in conventional mode: 0.99 KWh
Energy consumption for the hob: 187.5 Wh/Kg
Energy consumption zone 1: 189 Wh/Kg
Energy consumption zone 2: 191 Wh/Kg
Energy consumption zone 3: 181 Wh/Kg
Energy consumption zone 4: 189 Wh/Kg
Electrical connection
Plug: not present
Rated power of the electrical connection: 10000 W
Current: 44 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Additional connection modes: Two-phase and Three-phase
Electrical cable: Installed, Single-phase
Logistics information
Product dimensions HxWxD (mm): 900x600x600 mm
Width (mm): 600 mm
Product height (mm): 900 mm
Depth (mm): 600 mm
Packed product dimensions (mm): 860X670X675 mm
Gross weight (kg): 56,200 kg
Net weight (kg): 49,300 kg
Packed width: 670 mm
Packed depth: 675 mm
Height (mm) packed: 860 mm
Packaging type: Shrinkwrap
Packaging composition - paper and cardboard (kg): 3,672 kg
Packaging composition - polystyrene (kg): 0.899 kg
Packaging composition - wood (kg): 1,780 kg
Packaging composition - plastic (kg): 0.505 kg
Accessories included for main oven and hob
Grill with rear and side stop: 1
40 mm deep tray: 1
