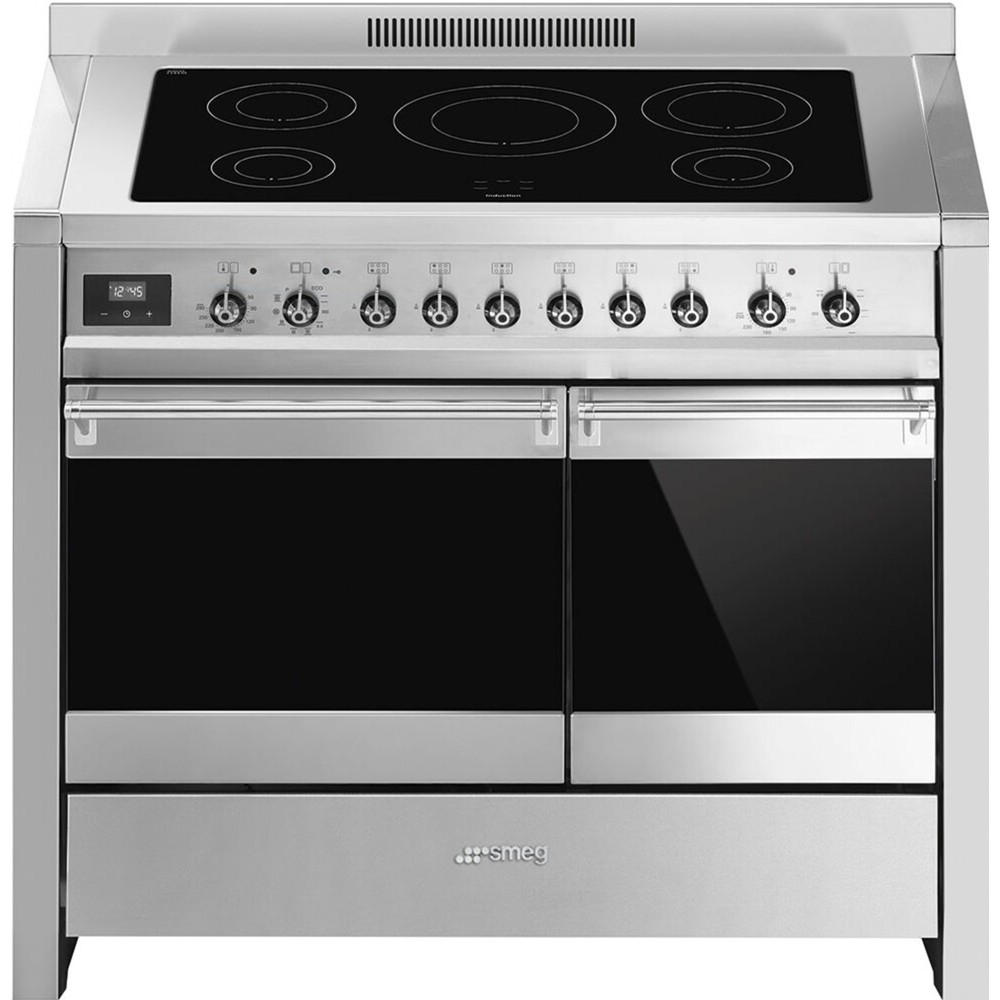

Smeg a2pyid-81 100cm countertop induction hob stainless steel

SPECIFICATIONS

Type

Product family: Hob

Hob dimensions: 100x60 cm

Hob energy type: Electric

N. of ovens: 2

Hob type: induction

Main oven type: Fan assisted

Second oven type: Static

Cleaning system: Pyrolytic

EAN code: 8017709256777

Aesthetics

Colour: Stainless steel

Finish: Satin

Aesthetics: Classic

Design: Professional

Series: Opera

Material: Stainless steel

Door: With 2 horizontal stripes

Control panel finish: Stainless steel

Hob colour: Stainless steel

Handle: Smeg Classic

Control colour: Stainless steel

Rise: Yes

Display: Touch

Glass type: Eclipse

Handle colour: Brushed stainless steel

Control knobs: Smeg Classic

No. of controls: 9

Storage compartment: Drawer

Program / Functions

Traditional cooking functions: Static, Thermo-Fan, Fan, Turbo, Eco, Large grill, Large fan grill, Fan base

Cleaning functions: Pyrolytic

Main oven options

Timer: yes

End of cooking acoustic alarm: Yes

Minimum temperature: 50 °C

Maximum temperature: 280 °C

Auxiliary oven programs / functions

Cavity 2 cooking functions: Static, narrow grill, large grill, base, Rotisserie + grill, upper

Traditional cooking functions: 6

Auxiliary oven options

Minimum temperature: 50 °C

Maximum temperature: 250 °C

Technical characteristics of the hob

Total no. of cooking zones: 5

No. of cooking zones with Booster: 5

Position of 1st zone: Front left

Position of 2nd zone: Rear left

Position of 3rd zone: Centre

Position of 4th zone: Rear right

Position of 5th zone: Front right

Type of 1st zone: Induction - single

Type of 2nd zone: Induction - single

Type of 3rd zone: Induction - single

Type of 4th zone: Induction - single

Type of 5th zone: Induction - single

Dimensions of 1st zone: Ø 14.5 cm

Dimensions of 2nd zone: Ø 18.0 cm

Dimensions 3rd zone: Ø 27.0 cm

Dimensions 4th zone: Ø 21.0 cm

Dimensions 5th zone: Ø 14.5 cm

Power 1st zone: 1.40 kW

Power 2nd zone: 1.85 kW

Power 3rd zone: 2.60 kW

Power 4th zone: 2.30 kW

Power 5th zone: 1.40 kW

Booster power 1st zone: 2.20 kW

Booster power 2nd zone: 3.00 kW

Booster power 3rd zone: 3.70 kW

Booster power 4th zone: 3.70 kW

Booster power 5th zone: 2.20 kW

Automatic switch-off in case of overheating: yes

Automatic pan detection: yes

Indicator of minimum pan diameter: yes

Selected zone indicator: yes

Residual heat indicator: yes

Main technical features of the oven

Net cavity volume: 61 l

Gross volume, 1st cavity: 68 l

Cavity material: Ever Clean enamel

Number of shelves: 4

Type of shelves: Metal shelves

No. of lights: 1

Type of light: Halogen

Light power: 40 W

Number of fans: 1

Cooking time setting: Start and Stop

Door opening: Flip down

Light when oven door is open: Yes

Removable door: Yes

Total no. of door glasses: 4

No. of heat-reflecting door glasses: 3

Door lock during pyrolysis: yes

Safety thermostat: yes

Cooling system: Tangential

Grill type: electric

Tipping grill: yes

Grill element: 1700 W

Large grill - Power: 2700 W

Lower element power: 1200 W

Upper element - Power: 1000 W

Circular heating element - Power: 2000 W

Temperature control: electromechanical

Technical Features Second Oven

Net volume of the second cavity: 35 l

Cavity material: Ever Clean enamel

Number of shelves: 4

Type of shelves: Metal shelves

Cover lining: Yes

No. of lights: 1

Type of light: Incandescent

Light power: 25 W

Light when oven door is open: Yes

Door opening: Tip down

Removable door: Yes

Total number of door glasses: 3

No. Heat-reflecting door glasses: 2

Safety thermostat: yes

Cooling system: Tangential

Grill type: electric

Grill element - power: 1300 W

Large grill - Power: 2050 W

Lower element - power: 750 W

Upper element - Power: 600 W

Temperature control: electromechanical

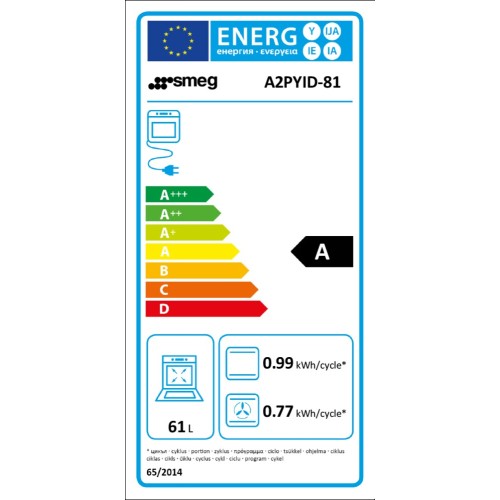

Performance/Energy Label

Energy efficiency class: A

Energy consumption in forced air convection: 2.77 MJ

Energy consumption per cycle in forced convection: 0.77 KWh

Energy consumption in conventional mode: 3.56 MJ

Energy consumption per cycle in conventional mode: 0.99 KWh

Energy consumption for the hob: 183.8 Wh/Kg

Energy consumption zone 1: 185 Wh/Kg

Energy consumption zone 2: 177 Wh/Kg

Energy consumption zone 3: 180 Wh/Kg

Energy consumption zone 4: 192 Wh/Kg

Energy consumption zone 5: 185 Wh/Kg

Performance/Energy Label - Second Cavity

Energy efficiency class, second cavity: A

Energy consumption in conventional mode, 2 cavities: 2.66 MJ

Energy consumption per cycle in conventional mode, cavity 2: 0.74 KWh

Electrical connection

Electrical connection power: 12500 W

Voltage: 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60Hz

Power cord length: 200 cm

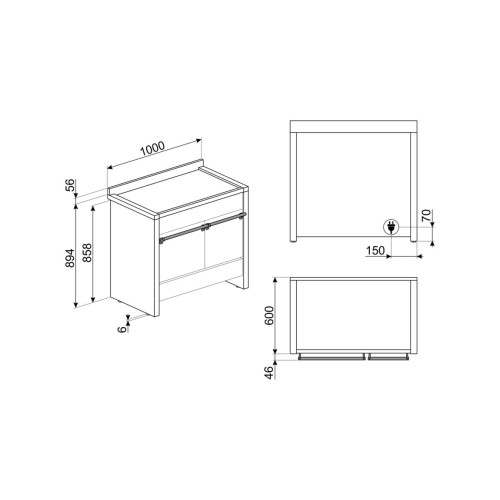

Logistics information

Product dimensions HxWxD (mm): 900x1000x600 mm

Width (mm): 1000 mm

Product height (mm): 900 mm

Depth (mm): 600 mm

Packaged product dimensions (mm): 1060X1080X735 mm

Gross weight (kg): 138,300 kg

Net weight (kg): 116,300 kg

Main oven and hob accessories supplied

Oven rack with stop and stops: 1

Basin insert rack: 1

20mm deep basin: 1

40mm deep basin: 1

Accessories included for Secondary Oven

Wide tray: 1

Rack with rear stop and stops: 1
