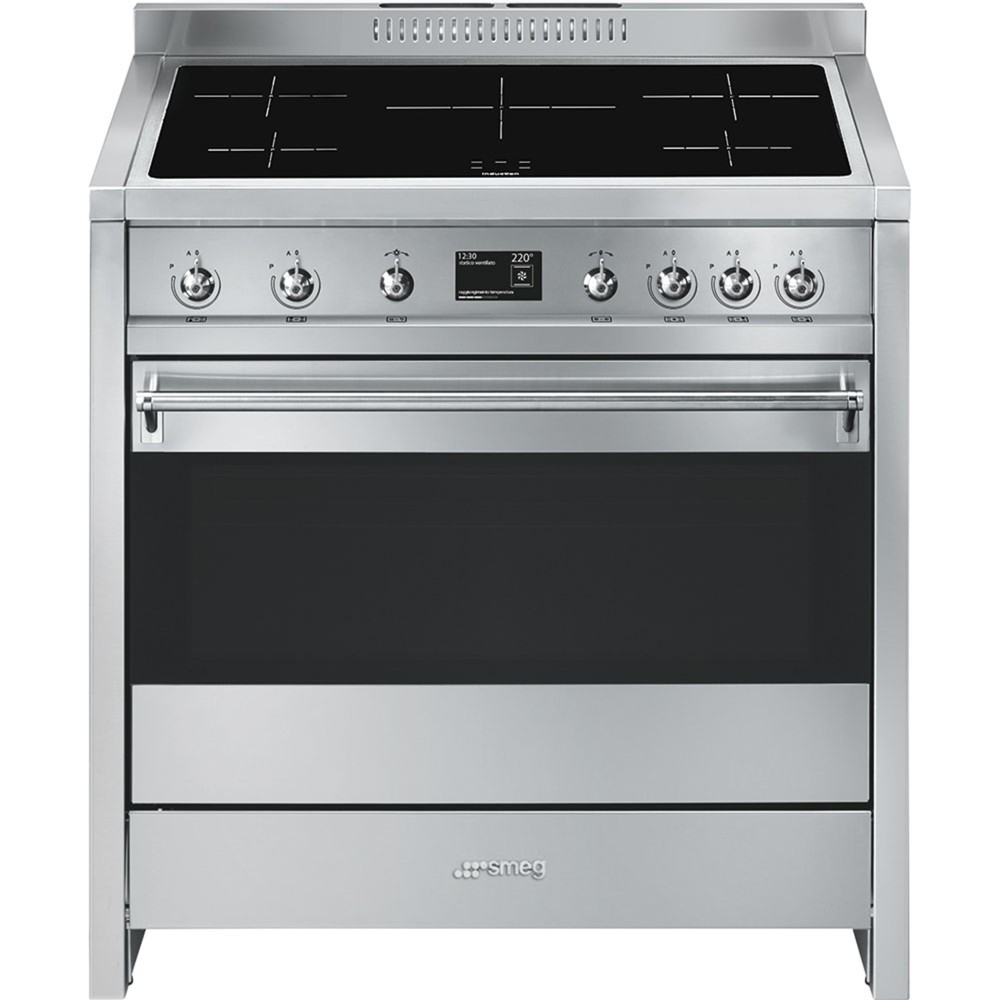

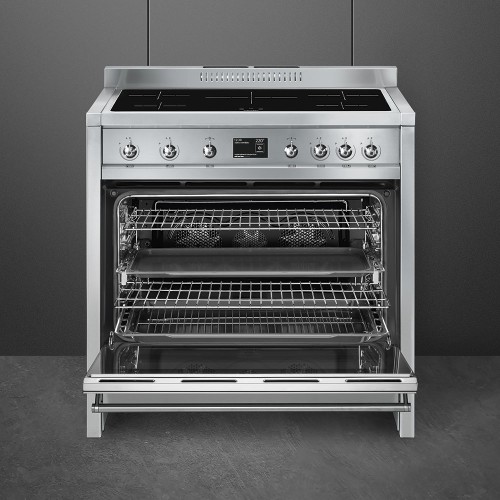

Smeg a1pyid-9 90cm countertop induction hob stainless steel

SPECIFICATIONS

Type

Family: Kitchen

Kitchen category: 90x60 cm

Kitchen configuration: Full electric

Hob type: Induction

Hob power supply: Electric

Number of ovens: 1

Main oven type: Fan assisted

EAN code: 8017709243692

Installation position of the appliance: Freestanding, Class 1, Built-in, Class 2-1 UNI EN 30-1-1 standard

Cleaning system: Pyrolytic

Aesthetics

Control with knobs 4.3-inch display with LCD technology, usability with Anti-fingerprint knobs: The special treatment to which the stainless steel is subjected prevents the formation of halos and fingerprints on the surface and helps to enhance its shine.

Colour: Stainless Steel

Design: Special

Finish: Anti-fingerprint

Aesthetics: Classic

Control panel finish: Anti-fingerprint steel

Series: Opera

Material: Stainless steel

Upstand: Yes

Hob colour: Stainless steel

Type of hob control adjustment: Knobs

Knob type: Smeg Classic

Knob colour: Steel

No. of knobs: 8

Display name: CompactScreen

Door: With 2 horizontal bands

Glass type: Eclipse

Handle: Smeg Classic

Handle colour: Brushed stainless steel

Compartment: Drawer

Sliding trolley: Yes

Main oven programs / functions

Customizable recipes: 10

Automatic programs: 50

Other functions: Timed defrosting - Weight defrosting - Dish warmer - Proving - Sabbath

Traditional cooking functions: Static - Fan assisted - Fan assisted - Turbo - Eco - Narrow grill - Wide grill - Wide fan assisted grill - Base - Fan assisted base - Fan assisted base

Cleaning functions: Pyrolysis - Eco Pyrolysis

Main oven options

Time programmer: Yes

End of cooking acoustic alarm: Yes

Minimum temperature: 50 °C

Maximum temperature: 280 °C

Technical features of the hob

Residual heat indicator: After switching off the cooking zone, the residual heat indicator signals whether the zone is still hot, thus using it to keep food warm. When the temperature has dropped below 60°C the light will go off. Anti-overheating: The Anti-overheating system causes the appliance to automatically switch off when temperatures exceed the safety temperatures.

Total number of cooking zones: 5

1st zone position: Front left

2nd zone position: Rear left

3rd zone position: Central

4th zone position: Rear right

5th zone position: Front right

1st zone type: Induction - Single

2nd zone type: Induction - Single

3rd zone type: Induction - Single

4th zone type: Induction - Single

5th zone type: Induction - Single

1st zone dimensions: Ø 14.5 cm

Dimensions 2nd zone: Ø 18.0 cm

Dimensions 3rd zone: Ø 27.0 cm

Dimensions 4th zone: Ø 21.0 cm

Dimensions 5th zone: Ø 14.5 cm

Power 1st zone: 1.40 kW

Power 2nd zone: 1.85 kW

Power 3rd zone: 2.60 kW

Power 4th zone: 2.30 kW

Power 5th zone: 1.40 kW

Booster power 1st zone: 2.20 kW

Booster power 2nd zone: 3.00 kW

Booster power 3rd zone: 3.70 kW

Booster power 4th zone: 3.70 kW

Booster power 5th zone: 2.20 kW

Auto-stop in case of overheating: Yes

Minimum diameter of use indicator: Yes

Selected zone indicator: Yes

Residual heat indicator: Yes

Technical characteristics of the main oven

Net volume of the cavity: 115 l

Gross volume of the first cavity: 129 l

Cavity material: Ever Clean enamel

Number of shelves: 5

Type of shelves: Frames

Number of lights: 4

Type of lights: Halogen

Light power: 40 W

Number of fans: 3

Cooking time programming options: Start and end

Door opening: Tilting

Light switches on when door opens: Yes

Removable door: Yes

Full glass internal door: Yes

Removable internal glass: Yes

Number of oven door glasses: 4

Number of heat-reflecting door glasses: 1

Safety thermostat: Yes

Cooling system: Tangential

Grill type: Electric

Grill element - Power: 1700 W

Large grill element - Power: 2900 W

Sole element - Power: 1700 W

Resistance sky - Power: 1200 W

Circular heating element - Power: 1500 W

Soft Close system: Yes

Temperature regulation: Electronic

Performance / Energy Label

Energy efficiency class: A+

Energy consumption per cycle in forced convection: 5.22 MJ

Energy consumption per cycle in forced convection: 1.45 KWh

Energy consumption per cycle in natural convection: 3.02 MJ

Energy consumption per cycle in natural convection: 0.84 KWh

Energy consumption of the hob: 183.8 Wh/Kg

Energy consumption zone 1: 185 Wh/Kg

Energy consumption zone 2: 177 Wh/Kg

Energy consumption zone 3: 180 Wh/Kg

Energy consumption zone 4: 192 Wh/Kg

Energy consumption zone 5: 185 Wh/Kg

Electrical Connection

Rated electrical connection data: 11400 W

Current: 50 A

Voltage: 220-240 V

Voltage 2 (V): 380-415 V

Frequency: 50/60 Hz

Other connection modes: Two-phase and Three-phase

Electrical cable: Installed, Single-phase

Standby consumption

Standby activation time: 20 min.

Standby consumption: 0.5 W

Show information in Standby: Yes

Logistics Information

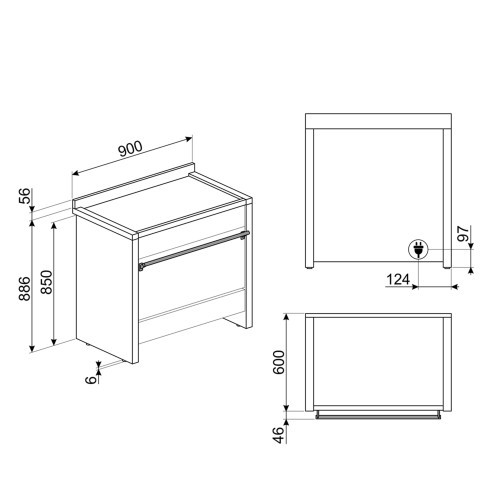

Product Dimensions HxWxD (mm): 900x900x600 mm

Product Width (mm): 900 mm

Product Height (mm): 900 mm

Product Depth (mm): 600 mm

Packed Product Dimensions (mm): 1070X960X685 mm

Gross Weight (kg): 113,300 kg

Net Weight (kg): 100,400 kg

Packed Product Width: 960 mm

Depth of the packaged product: 685 mm

Height of the packaged product: 1070 mm
