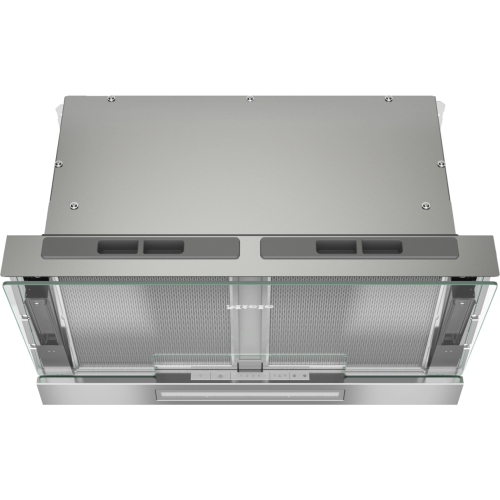

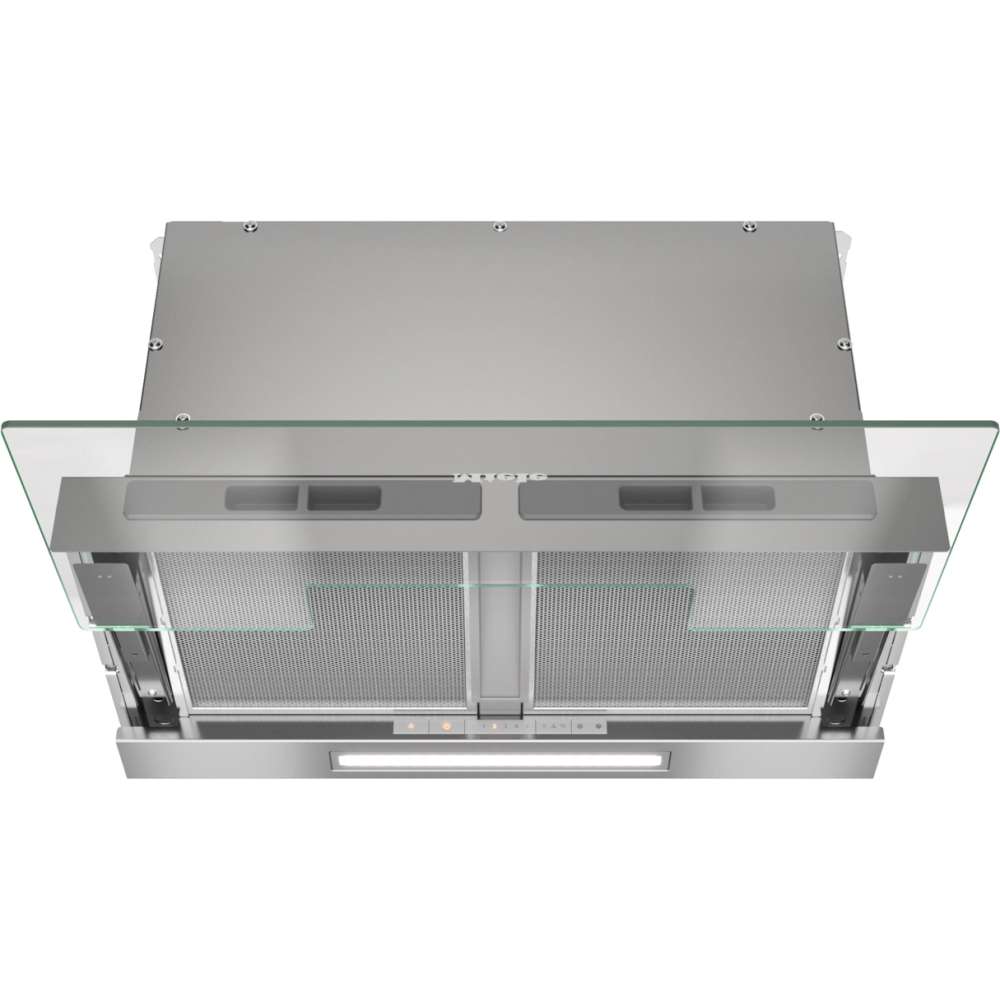

Miele das 4640 built-in hood under cabinet, 60 cm glass

CON@CTIVITY

Automatic and intelligent hood management

Thanks to the automatic Con@ctivity function, the extractor hood can communicate with the hob: the values set on the hob are detected and transmitted to the extractor hood electronics. The Miele hood then selects the right extractor power level to ensure an optimal room temperature. Communication between the hob and the hood takes place via WLAN.

ADDITIONAL OPERATION

Automatic additional extractor function

The automatic additional extractor operation ensures complete extraction of steam and odors that remain in the air after cooking. The hood switches off automatically after 5 or 15 minutes, as desired.

FILTER INDICATOR

Always keep an eye on your hood's usage time

If the grease or activated carbon filter is saturated, a red LED lights up on the extractor hood. Clean or replace the filter as soon as possible. The standard filter life can be modified as desired: the grease filter cleaning indicator light can be programmed for 20, 30, 40 or 50 hours, while the activated carbon filter replacement indicator light can be programmed for 120, 180 or 240 hours.

AIRCLEAN ACTIVE FILTER

Total elimination of odors in the kitchen

In Miele extractor hoods with recirculation mode, the activated carbon filter must always be used to bind odors. The single filter must be replaced regularly.

STAINLESS STEEL GREASE FILTER (10 LAYERS)

Easy to use and effective against grease

Miele hoods are equipped with a 10-layer stainless steel metal grease filter and guarantee excellent grease separation. When removed, the integrated fall protection protects the hob from damage. The cover and filter frame are made of high-quality stainless steel, so that there is no visible discoloration when washing in the dishwasher and the filter remains aesthetically pleasing for a long time.

Product data sheet

TYPE

Flat hood

MODE

Air circuit type Convertible

DESIGN

Color Transparent glass

COMFORT INSTRUCTIONS FOR USE

Miele@home

Automatic function Con@ctivity 3.0 (WLAN)

Electronic control

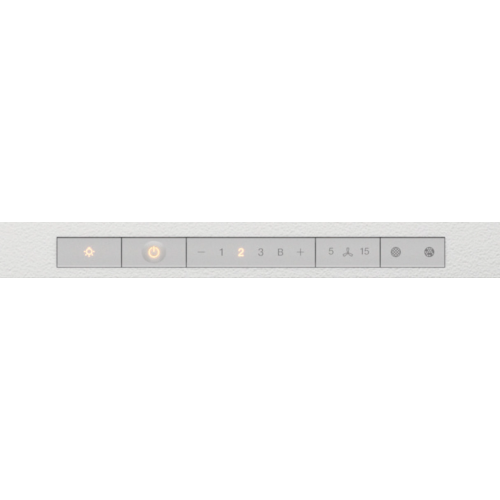

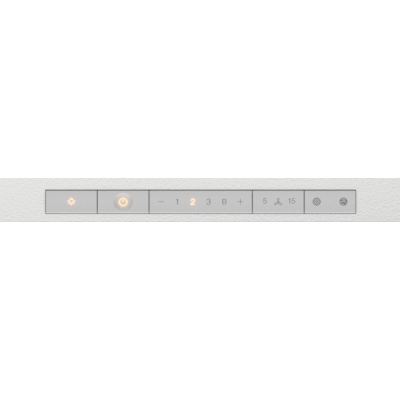

Touch controls on glass

Programmable automatic switch-off for intensive level

Continuous operation 5/15 min.

Grease filter saturation indicator

Programmable grease filter saturation

Programmable activated carbon filter saturation

Easy-to-clean CleanCover hood interior

EFFICIENCY AND SUSTAINABILITY

Energy efficiency class (A+++ – D) A+

Annual energy consumption in kWh/year 27.40

Energy efficiency class Fluid dynamics A

Lighting efficiency class A

Grease filtering efficiency class B

Power Management System

ECO package

FILTERING SYSTEM

Number of stainless steel metal grease filters 1

LIGHTING

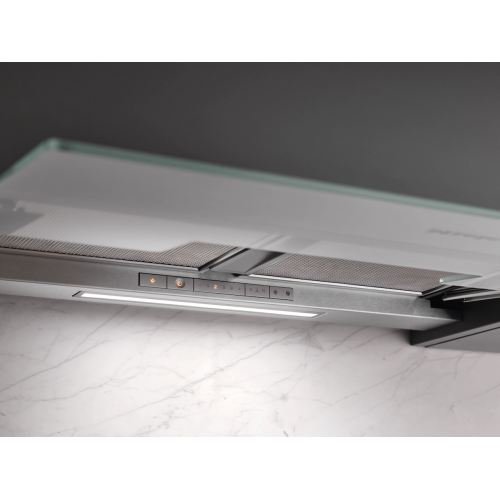

LED

Number x Watt 1 x 3 W

Light intensity in Lx 300 lx

Color temperature in K 3500 Kelvin

Dimmer

EXTRACTION FAN

Double-sided extraction

DC-Motor

EXHAUST AIR

Air output level 1 (m³/h) 180

Air output level 2 (m³/h) 270

Air power level 3 (m³/h) 380

Air power intense level (m³/h) 600

Sound power level 1 (dB(A) re1pW) 37.00

Sound power level 1 (dB(A) re1pW) 45.00

Sound power level 3 (dB(A) re1pW) 52.00

Sound power intense level (dB(A) re1pW) 64.00

Sound pressure level 1 (dB(A) re20µPa) 23.00

Sound pressure level 2 (dB(A) re20µPa) 31.00

Sound pressure level 3 (dB(A) re20µPa) 39.00

Sound pressure intense level (dB(A) re20µPa) 50.00

RECIRCULATION

Air power level 1 (m³/h) 160

Air power level 2 (m³/h) 260

Air power level 2 (m³/h) 405

Air power intense level (m³/h) 580

Sound power level 1 (dB(A) re1pW) 41.00

Sound power level 2 (dB(A) re1pW) 50.00

Sound power level 3 (dB(A) re1pW) 61.00

Sound power at intense level (dB(A) re1pW) 70.00

Sound pressure level 1 (dB(A) re20µPa) 27.00

Sound pressure level 2 (dB(A) re20µPa) 37.00

Sound pressure level 3 (dB(A) re20µPa) 48.00

Sound power at intense level (dB(A) re1pW) 57,00

SAFETY

Safety switch-off

Single safety glass (ESG)

TECHNICAL DATA

Width of hood body in mm 561

Height of hood body in mm 68

Depth of hood body in mm 307

Minimum distance from electric hobs in mm 450

Weight net in kg 12.00
