Smeg kdd60vxe-3 downdraft cooker hood 60 cm black

Electronic controls

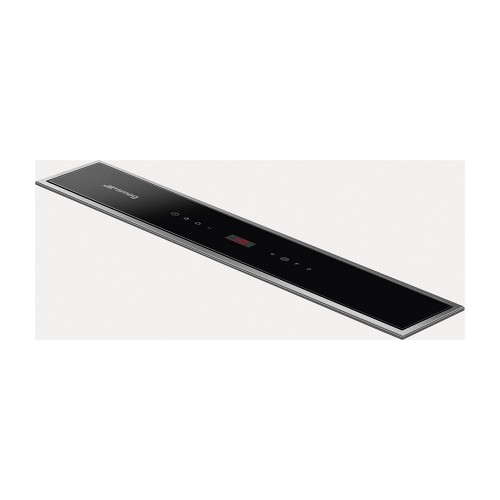

Ergonomic and functional, the controls of Smeg hoods are designed to allow easy and immediate use. The top of the range models include Touch Control commands, activated with a simple and safe touch.

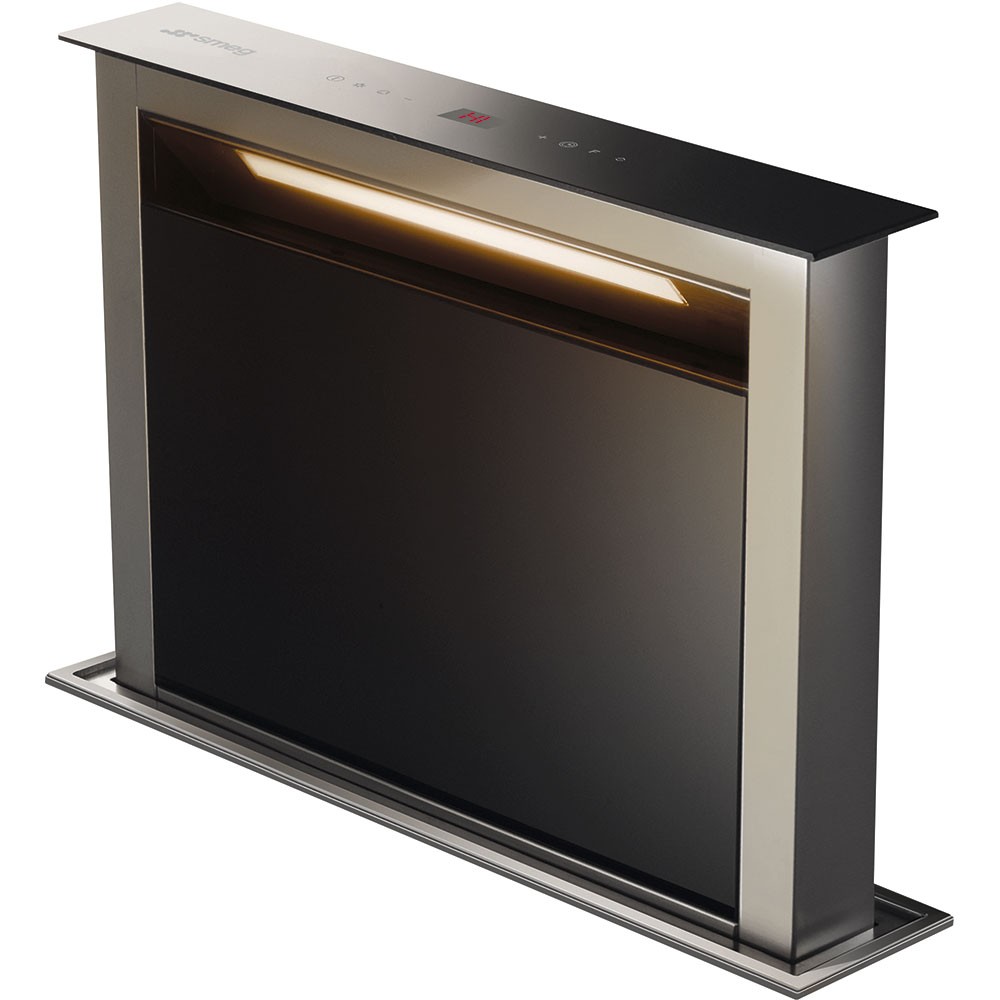

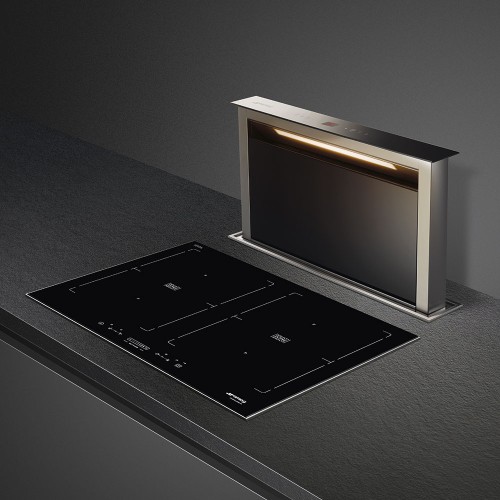

60cm downdraft hood that offers powerful suction directly from the worktop, excellent for capturing excess heat created by induction technology. It disappears from view when not in use and is an innovative solution for a modern and clutter-free kitchen.

Clean air - The 24-hour air exchange function makes the hood work for 10 minutes every hour at a very low speed and therefore in silence for a total of 24 hours in order to purify the air in the home, with a low energy impact.

Intensive speed - The intensive function allows the hood to work at maximum power, to speed up the elimination of the most persistent odors and have a purified environment.

Perimeter suction - The hood's suction is concentrated on the peripheral area, thus allowing a larger suction surface and offering better silence, limiting the vibrations of the filters.

Adjustable light intensity - With the Dimmering function it is possible to increase or decrease the intensity of the hood's light by holding down the button light.

Automatic switch-off - The Automatic switch-off option allows you to program the time at which the hood will switch off and continue to purify the air until it switches off automatically.

SPECIFICATIONS

Type

Family: Hood

Type: DownDraft

Hood width: 60 cm

Filtering: Expulsion or recirculation (for the filtering version it is necessary to purchase the KITFCDD60 carbon filter separately from the Accessories)

Electronic control: Yes

Perimeter suction: Yes

EAN code: 8017709346133

Controls

Control adjustment: Touch control

LED colour: Red

Display: Digital

Technical Features

Remote motor: optional KITRBDD

No. of lights: 1

Light type: LED

Light power: 6 W

Adjustable light intensity: Yes

Light colour temperature (°K): 2700 °K

Maximum suction capacity in free mode (P0): 680 m³/h

Motor power: 250W

No. filters: 2

Grease filters: Aluminium

Filter change indicator: Yes

Motor inlet diameter: 150 mm

Performance / Energy Label

Energy Efficiency Class (EEC): B

Fluid Dynamic Efficiency Class (FDEC): A

Grease Filtering Efficiency Class (GFEC): E

Lighting Efficiency Class (LEC): A

Annual Energy Efficiency (AEC): 64 kWh/a

Fluid Dynamic Efficiency (FDE): 28.50

Illumination Efficiency (LE): 33 lux/W

Grease Filtering Efficiency (GFE): 55.1 %

Air flow at minimum speed (Qmin): 200 m³/h

Air flow rate at maximum speed (Qmax): 350 m³/h

Air flow rate at intensive speed (Qboost): 650 m³/h

Weighted acoustic power emission at minimum speed (SPEmin): 46 dBA

Weighted acoustic power emission at maximum speed (SPEmax): 59 dBA

Weighted acoustic power at intensive speed (SPEboost): 70 dBA

Power consumption in off mode (Po): 0.49 W

Time improvement factor (F): 1.0

Energy efficiency index: 59

Air flow rate measured at maximum efficiency conditions (Qbep): 377 m³/h

Air pressure measured in conditions of maximum efficiency (Pbep): 446 Pa

Electrical power absorbed in conditions of maximum efficiency (Wbep): 164 W

Nominal power of the lighting system (WL): 6 W

Average illumination of the hob lighting system (Emiddle): 200 lux

Noise level in the highest configuration (Lwa): 52 dBA

Electrical connection

Plug: (F;E) Schuko

Nominal power of the electrical connection: 256 W

Voltage: 220-240V

Frequency: 50-60 Hz

Length of the power cord: 1500 mm

Speed 1

Suction capacity (IEC 61591): 200 m³/h

Noise level (IEC 60704-2-13): 46 dBA

Power: 45W

Speed 2

Suction capacity (IEC 61591): 280 m³/h

Noise level (IEC 60704-2-13): 52 dBA

Power: 100W

Speed 3

Suction capacity (IEC 61591): 350 m³/h

Noise level (IEC 60704-2-13): 59 dBA

Power: 135W

Speed 4

Suction capacity (IEC 61591): 430 m³/h

Noise level (IEC 60704-2-13): 62 dBA

Power: 170W

Intensive speed

Suction capacity (IEC 61591): 650 m³/h

Noise level (IEC 60704-2-13): 70 dBA

Power: 250W

Logistics information

Product dimensions (mm): 1052x600x351

Width: 600 mm

Product depth (mm): 351 mm

Product height (mm): 1052 mm

Net weight (kg): 27,000 kg

Gross weight (kg): 33,000 kg

Packaged product width: 645 mm

Packaged product depth: 602 mm

Packaged product height: 780 mm

Packaged product dimensions (mm): 780X645X602

Packaging: Cardboard

Packaging composition - paper and cardboard (kg): 5.107 kg

Packaging composition - polystyrene (kg): 0.718 kg

Packaging composition - wood (kg): 0.000 kg

Packaging composition - plastic (kg): 0.084 kg

Accessories Included

Motorized opening: Yes

Remote control: Optional

Tube reduction: Yes
